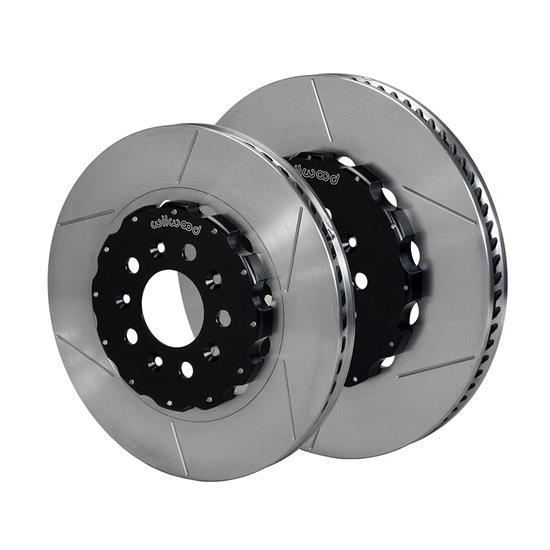

Wilwood 140-13106 Promatrix Front and Rear Replacement Rotor Kit
- ProMatrix Front and Rear Rotor Kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers
- Two piece aluminum hat and GT 72 & 32 Curved Vane Spec-37 assemblies are used to provide high temperature durability for the track and high-tech style for the street
$2,908.34
/each
Factory Shipped
$3,257.34
Save $349.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front and Rear Position, 14 Inch Rotor Diameter
- ProMatrix Front and Rear Rotor Kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers
- Two piece aluminum hat and GT 72 & 32 Curved Vane Spec-37 assemblies are used to provide high temperature durability for the track and high-tech style for the street
- Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear
- The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood
Key Specs
| MFG. Part # | 140-13106 |
| Position | Front and Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 14 Inch |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-13106 Details
Wilwood 140-13106 Details
- ProMatrix Front and Rear Rotor Kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers
- Two piece aluminum hat and GT 72 & 32 Curved Vane Spec-37 assemblies are used to provide high temperature durability for the track and high-tech style for the street
- Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear
- The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood
Application
2005 Aston Martin DB9R All
2006 Aston Martin DB9R All
2006 Aston Martin V8 Vantage All
2007 Aston Martin DB9R All
2007 Aston Martin V8 Vantage All
2008 Aston Martin DB9R All
2008 Aston Martin V8 Vantage All
2009 Aston Martin DB9R All
2009 Aston Martin V8 Vantage All
2010 Aston Martin DB9R All
2010 Aston Martin V8 Vantage All
2011 Aston Martin DB9R All
2011 Aston Martin V8 Vantage All
2012 Aston Martin DB9R All
2012 Aston Martin V8 Vantage All
2013 Aston Martin DB9R All
2013 Aston Martin V8 Vantage All
2006 Aston Martin DB9R All
2006 Aston Martin V8 Vantage All
2007 Aston Martin DB9R All
2007 Aston Martin V8 Vantage All
2008 Aston Martin DB9R All
2008 Aston Martin V8 Vantage All
2009 Aston Martin DB9R All
2009 Aston Martin V8 Vantage All
2010 Aston Martin DB9R All
2010 Aston Martin V8 Vantage All
2011 Aston Martin DB9R All
2011 Aston Martin V8 Vantage All
2012 Aston Martin DB9R All
2012 Aston Martin V8 Vantage All
2013 Aston Martin DB9R All
2013 Aston Martin V8 Vantage All
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-13106 Specifications
Wilwood 140-13106 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-13106 |
| Brand | Wilwood |
| Position | Front and Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14.00 in./355.60mm |
| Front Caliper Included | No |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | Yes |
| Bolt Pattern | 5 on 4.5" |
| Color | Black |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545018882 |
| Rotor Thickness | 1.25" |
| Rotor Finish | Natural |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Front Rotor Thickness | 1.250" |
| Brake Lines Included | No |
| Front Rotor Style | Slotted |
| Front Rotor Construction | Vented |
| Rear Rotor Construction | Vented |
| Rear Rotor Diameter | 13" |
| Rear Rotor Style | Slotted surface |
| Rear Rotor Thickness | 1.1" |
