$132 Off
$132 Off
|
#83514013062R
$1,613.45
/each
Factory Shipped
$1,745.95
Save $132.50
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-13062-R |
| Position | Front |
| Rotor Diameter | 12.88 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

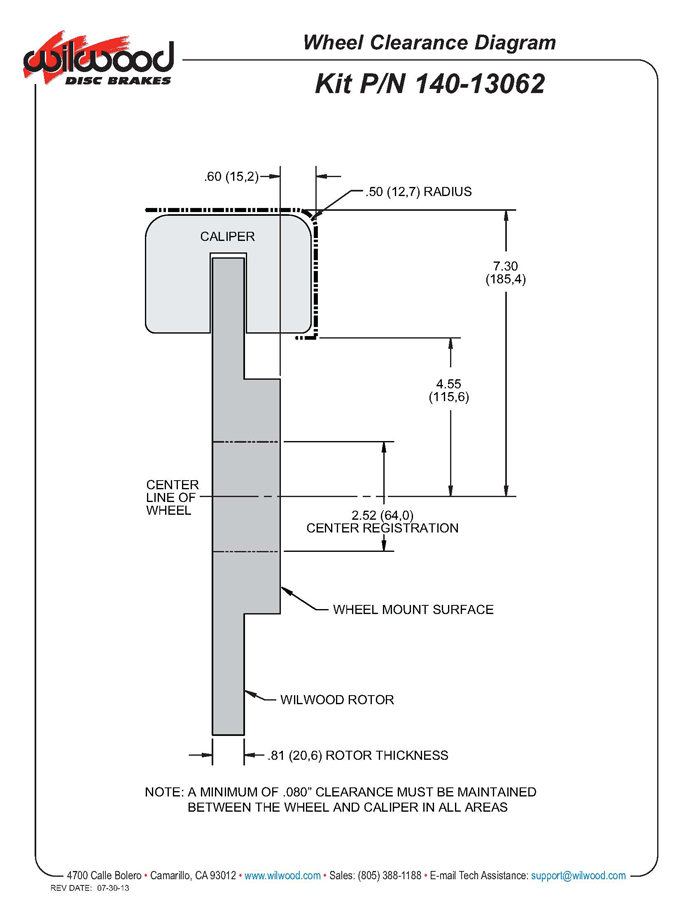

Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-13062-R |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.88 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 17 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.88 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Bolt Pattern | 4 on 100mm |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545018875 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 0.64" |
| Mount Type | Lug |
| Total Piston Area | 3.08 sq. in. |
| Piston Type | Stainless |
| Pad Area | 7.30 sq. in. |
| Pad Volume | 2.4 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Vane Count | 48 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 0.88" |
| Brake Lines Included | Yes |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 4 x 3.93 |
Be the first to ask a question.
2002-2013 Mini Cooper
