Wilwood 140-12947-DR DP6 12.19 Front Disc Brake Kit,65-70 Ford/Mercury

$129 Off

#83514012947DR

Wilwood 140-12947-DR DP6 12.19 Front Disc Brake Kit,65-70 Ford/Mercury

Specifically designed for the 1965-1970 Ford/Mercury cars
Rotors have a 12.19" diameter and are designed to clear 15"-up wheels
DynaPro 6 piston forged billet calipers are powder coated red for enhanced corrosion resistance

Rotor / Caliper Type:

Drilled / Red

$1,572.83

/each

Factory Shipped

$1,701.99

Save $129.16

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

Specifically designed for the 1965-1970 Ford/Mercury cars
Rotors have a 12.19" diameter and are designed to clear 15"-up wheels
DynaPro 6 piston forged billet calipers are powder coated red for enhanced corrosion resistance
Kit comes pre drilled with the dual 5x4.5"/4.75" bolt pattern
A drilled and slotted rotor design provides excellent heat dissipation

See more details

Key Specs

MFG. Part #	140-12947-DR
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12947-DR Details

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an inter

Application

1965 Ford Falcon Disc Brake V-8 Spindle Only
1965 Ford Falcon Drum Brake V-8 Spindle Only
1965 Ford Mustang Disc Brake V-8 Spindle Only
1965 Ford Mustang Drum Brake V-8 Spindle Only
1965 Ford Ranchero Disc Brake V-8 Spindle Only
1965 Ford Ranchero Drum Brake V-8 Spindle Only
1965 Mercury Comet Disc Brake V-8 Spindle Only
1965 Mercury Comet Drum Brake V-8 Spindle Only
1966 Ford Fairlane Disc Brake Spindle
1966 Ford Fairlane Drum Brake Front Spindle
1966 Ford Falcon Disc Brake V-8 Spindle Only
1966 Ford Falcon Drum Brake V-8 Spindle Only
1966 Ford Mustang Disc Brake V-8 Spindle Only
1966 Ford Mustang Drum Brake V-8 Spindle Only
1966 Ford Ranchero Disc Brake Spindle
1966 Ford Ranchero Drum Brake Front Spindle
1966 Mercury Comet Disc Brake V-8 Spindle Only
1966 Mercury Comet Drum Brake V-8 Spindle Only
1967 Ford Fairlane Disc Brake Spindle
1967 Ford Fairlane Drum Brake Front Spindle
1967 Ford Falcon Disc Brake Spindle
1967 Ford Falcon Drum Brake Front Spindle
1967 Ford Mustang Disc Brake Spindle
1967 Ford Mustang Drum Brake Front Spindle
1967 Ford Ranchero Disc Brake Spindle
1967 Ford Ranchero Drum Brake Front Spindle
1967 Mercury Comet Disc Brake Spindle
1967 Mercury Comet Drum Brake Front Spindle
1967 Mercury Cougar Disc Brake Spindle
1967 Mercury Cougar Drum Brake Front Spindle
1967 Mercury Cyclone Disc Brake Spindle
1967 Mercury Cyclone Drum Brake Front Spindle
1968 Ford Fairlane Disc Brake Spindle
1968 Ford Fairlane Drum Brake Front Spindle
1968 Ford Falcon Disc Brake Spindle
1968 Ford Falcon Drum Brake Front Spindle
1968 Ford Mustang Disc Brake Spindle
1968 Ford Mustang Drum Brake Front Spindle
1968 Ford Ranchero Disc Brake Spindle
1968 Ford Ranchero Drum Brake Front Spindle
1968 Ford Torino Disc Brake Spindle
1968 Ford Torino Drum Brake Front Spindle
1968 Mercury Comet Disc Brake Spindle
1968 Mercury Comet Drum Brake Front Spindle
1968 Mercury Cougar Disc Brake Spindle
1968 Mercury Cougar Drum Brake Front Spindle
1968 Mercury Cyclone Disc Brake Spindle
1968 Mercury Cyclone Drum Brake Front Spindle
1968 Mercury Montego Disc Brake Spindle
1968 Mercury Montego Drum Brake Front Spindle
1969 Ford Fairlane Disc Brake Spindle
1969 Ford Fairlane Drum Brake Front Spindle
1969 Ford Falcon Disc Brake Spindle
1969 Ford Falcon Drum Brake Front Spindle
1969 Ford Mustang Disc Brake Spindle
1969 Ford Mustang Drum Brake Front Spindle
1969 Ford Ranchero Disc Brake Spindle
1969 Ford Ranchero Drum Brake Front Spindle
1969 Ford Torino Disc Brake Spindle
1969 Ford Torino Drum Brake Front Spindle
1969 Mercury Comet Disc Brake Spindle
1969 Mercury Comet Drum Brake Front Spindle
1969 Mercury Cougar Disc Brake Spindle
1969 Mercury Cougar Drum Brake Front Spindle
1969 Mercury Cyclone Disc Brake Spindle
1969 Mercury Cyclone Drum Brake Front Spindle
1969 Mercury Montego Disc Brake Spindle
1969 Mercury Montego Drum Brake Front Spindle
1970 Ford Falcon Drum Brake Front thru 8/24/69
1970 Ford Maverick Drum Brake Front thru 8/24/69
1970 Ford Mustang Disc Brake GT350 & 500 only

Charts

Installation Instructions (PDF)

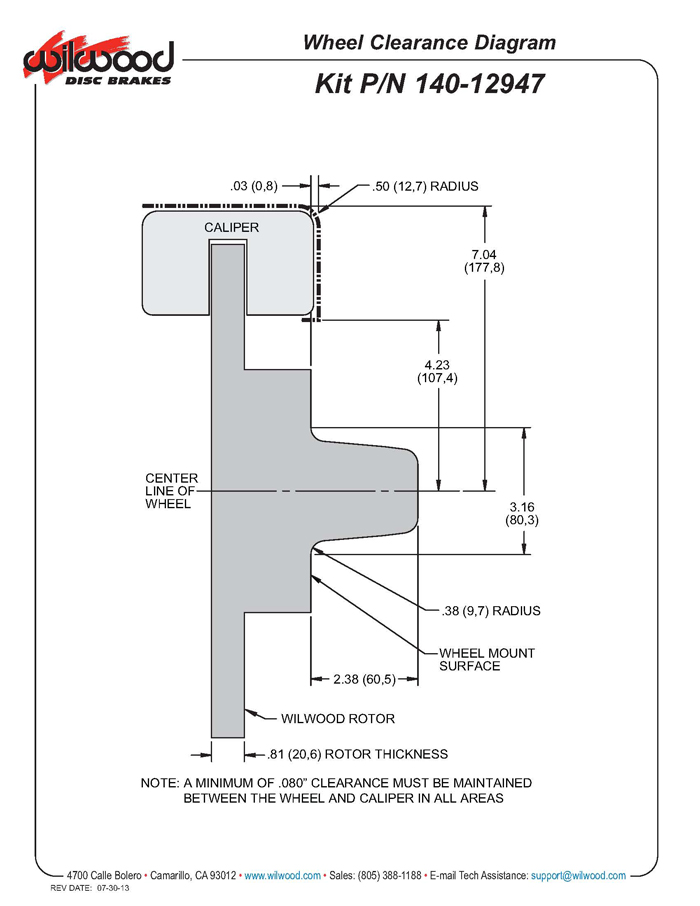

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012947DR)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-12947-DR Specifications

KEY SPECS
MFG. Part #	140-12947-DR
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc & Drum Spindles
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545018363
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0.09"
Total Piston Area	5.06 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1966-1969 Ford Fairlane

1965-1970 Ford Falcon

1970 Ford Maverick

1965-1970 Ford Mustang

1965-1969 Ford Ranchero

1968-1969 Ford Torino

1965-1969 Mercury Comet

1967-1969 Mercury Cougar

1967-1969 Mercury Cyclone

1968-1969 Mercury Montego
