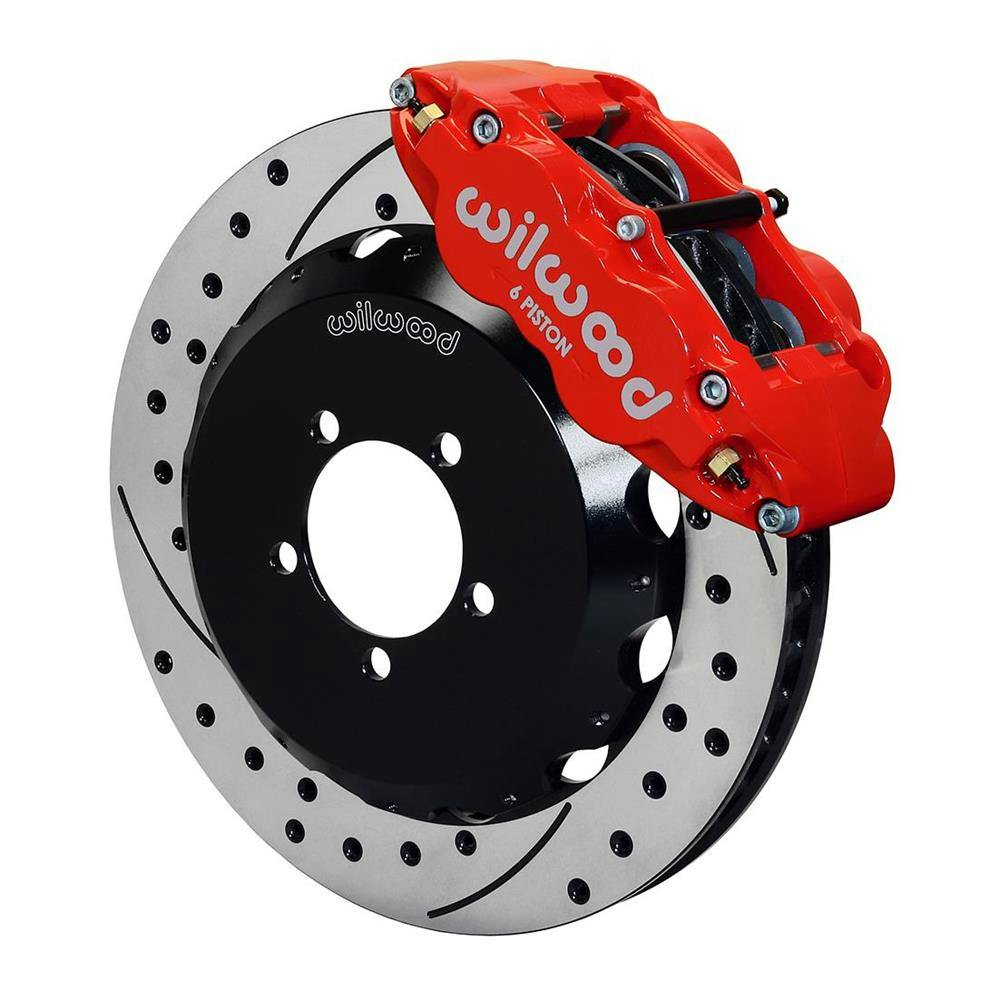

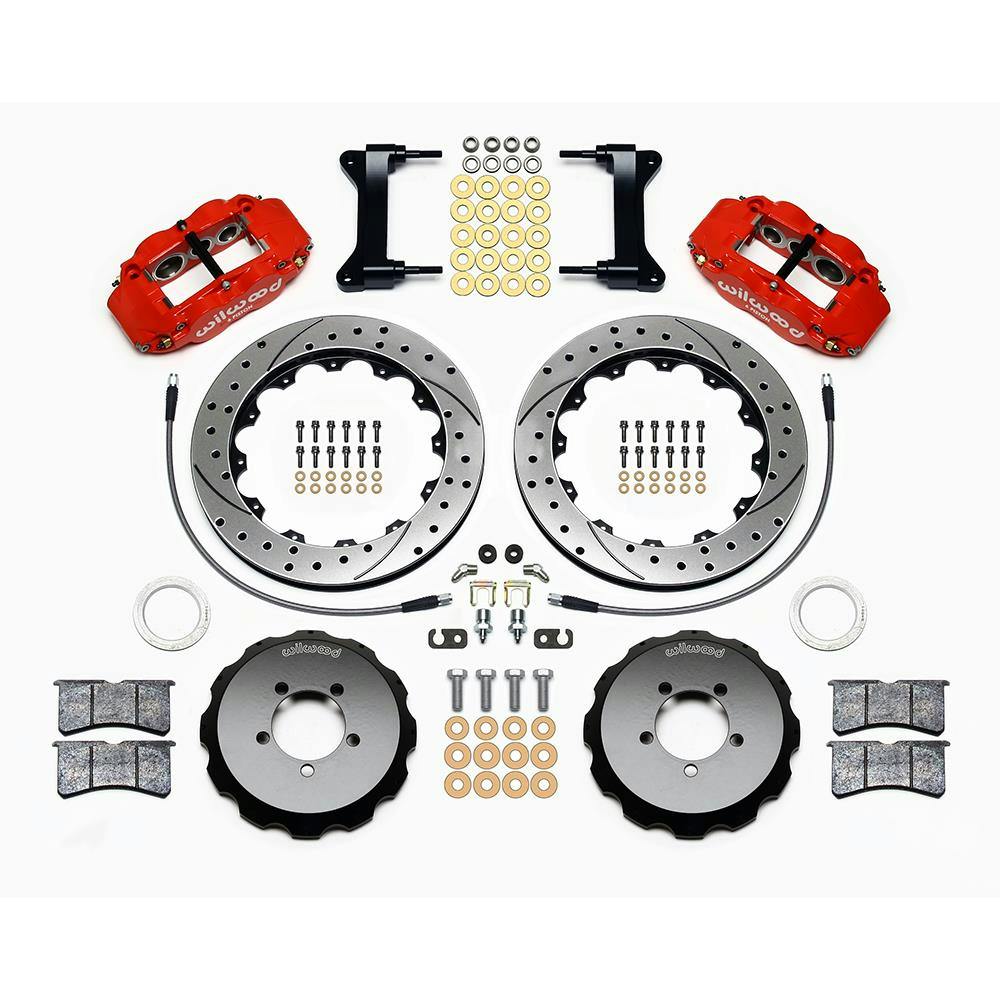

Wilwood 140-12874-DR Factory Five Subaru Big Front Brake Kit

$268 Off

#83514012874DR

Wilwood 140-12874-DR Factory Five Subaru Big Front Brake Kit

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used

Rotor / Caliper Type:

Drilled / Red

$2,230.79

/each

Factory Shipped

$2,498.48

Save $267.69

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 13.06 Inch Rotor Diameter, Red, Red

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used
Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines
Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application

See more details

Key Specs

MFG. Part #	140-12874-DR
Position	Front
Rotor Diameter	13.06 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12874-DR Details

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles
FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used
Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines
Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application

Application

1999 Subaru Impreza All w/ Drum Brake Rear
1999 Subaru Impreza Disc Brake Rear
2000 Subaru Impreza All w/ Drum Brake Rear
2000 Subaru Impreza Disc Brake Rear
2000 Subaru Legacy All w/ Drum Brake Rear
2000 Subaru Legacy Disc Brake Rear
2000 Subaru Outback All w/ Drum Brake Rear
2000 Subaru Outback Disc Brake Rear
2001 Subaru Forester Disc Brake Rear
2001 Subaru Forester Base All w/ Drum Brake Rear
2001 Subaru Impreza 2.2 Liter
2001 Subaru Impreza 2.4 Liter
2001 Subaru Legacy All w/ Drum Brake Rear
2001 Subaru Legacy Disc Brake Rear
2001 Subaru Outback All w/ Drum Brake Rear
2001 Subaru Outback Disc Brake Rear
2002 Subaru Forester Disc Brake Rear
2002 Subaru Forester Base All w/ Drum Brake Rear
2002 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2002 Subaru Impreza All Coupe & Wagon, Drum Brake Rear
2002 Subaru Impreza WRX
2002 Subaru Legacy All w/ Drum Brake Rear
2002 Subaru Legacy Disc Brake Rear
2002 Subaru Outback All w/ Disc Brake Rear from 10/01
2002 Subaru Outback All w/ Disc Brake Rear thru 9/01
2002 Subaru Outback All w/ Drum Brake Rear from 10/01
2002 Subaru Outback All w/ Drum Brake Rear thru 9/01
2003 Subaru Forester All w/ Drum Brake Rear
2003 Subaru Forester Disc Brake Rear
2003 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2003 Subaru Impreza All Coupe & Wagon, Drum Brake Rear
2003 Subaru Impreza WRX
2004 Subaru Forester All w/ Drum Brake Rear
2004 Subaru Forester Disc Brake Rear
2004 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2004 Subaru Impreza All Coupe & Wagon, Drum Brake Rear
2004 Subaru Impreza WRX, except STI
2004 Subaru Impreza WRX STI (5 x 100mm BC wheels)
2005 Subaru Forester All w/ Drum Brake Rear
2005 Subaru Forester Disc Brake Rear
2005 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2005 Subaru Impreza All Coupe & Wagon, Drum Brake Rear
2005 Subaru Impreza WRX, except STI
2006 Subaru Forester All w/ Drum Brake Rear
2006 Subaru Forester Disc Brake Rear
2006 Subaru Impreza All Coupe & Wagon except 2.5i, Disc Brake Rear
2006 Subaru Impreza Coupe & Wagon 2.5i, Disc Brake Rear
2006 Subaru Impreza WRX, except STI
2007 Subaru Forester All w/ Drum Brake Rear
2007 Subaru Forester Disc Brake Rear
2007 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2007 Subaru Impreza WRX, except STI
2008 Subaru Forester All w/ Drum Brake Rear
2008 Subaru Forester Disc Brake Rear
2008 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2008 Subaru Impreza WRX, except STI
2009 Subaru Forester All w/ Drum Brake Rear
2009 Subaru Forester Disc Brake Rear
2009 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2009 Subaru Impreza WRX, except STI
2010 Subaru Forester All w/ Drum Brake Rear
2010 Subaru Forester Disc Brake Rear
2010 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2010 Subaru Impreza WRX, except STI
2011 Subaru Forester All w/ Drum Brake Rear
2011 Subaru Forester Disc Brake Rear
2011 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2011 Subaru Impreza WRX, except STI
2012 Subaru Impreza All Coupe & Wagon, Disc Brake Rear
2012 Subaru Impreza WRX, except STI

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012874DR)

CA Prop 65

Wilwood 140-12874-DR Specifications

KEY SPECS
MFG. Part #	140-12874-DR
Brand	Wilwood
Position	Front
Rotor Diameter	13.06 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Color	Red
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	17 Inch
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	13.06 in./331.70mm
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 100mm \| 5 on 4.5"
Front Caliper Piston Quantity	Six

GENERAL
Sold in Quantity	Kit
GTIN Code	889545017762
Notes	Designed for use with factory disc spindles. Included rotors are coated in Black Electro Coat.
Rotor Thickness	1.25"
Stud Diameter	0.52"
Mount Type	Radial
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	48 Curved Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Bolt Circle 1	5 x 3.93
Hat Material Type	Aluminum
Hat Offset Dimension	0.95"
Front Rotor Thickness	1.250"
Front Caliper Material	Forged Billet Aluminum
Front Caliper Color	Red
Brake Lines Included	Yes
Front Rotor Style	Drilled and Slotted
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Front Rotor Construction	Vented

Ratings & Reviews

Be the first to write a review.

Fitment

2001-2011 Subaru Forester

1999-2012 Subaru Impreza

2000-2002 Subaru Legacy

2000-2002 Subaru Outback
