Wilwood 140-12836-D DP6 12.19 Inch Front Disc Brake Kit, 1979-90 GM

$173 Off

Wilwood 140-12836-D DP6 12.19 Inch Front Disc Brake Kit, 1979-90 GM
Wilwood

|

#83514012836D

Wilwood 140-12836-D DP6 12.19 Inch Front Disc Brake Kit, 1979-90 GM

Rotor / Caliper Type:

Drilled

Drilled / Red

$1,440.23

/each

Factory Shipped

$1,613.05

Save $172.82


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter

    See more details

    Key Specs

    MFG. Part #140-12836-D
    PositionFront
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    Caliper PistonsSix
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-12836-D Details

    DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.



    Installation Instructions (PDF)

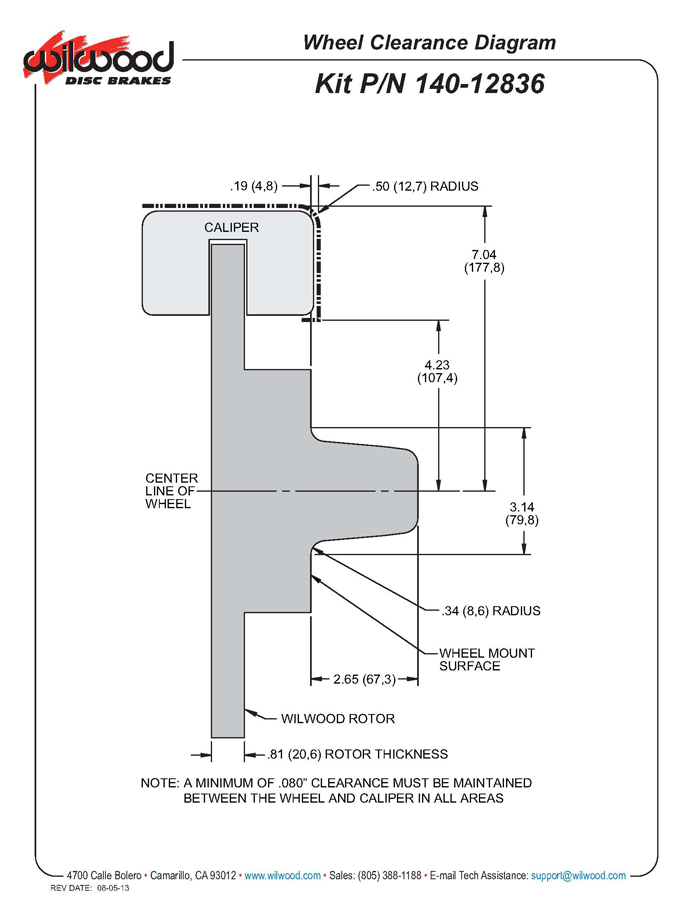

    Wheel Clearance Diagram

    Application

    1979 Buick Estate Wagon With OE 11" Rotor Spindles
    1979 Buick LeSabre With OE 11" Rotor Spindles
    1979 Buick Skylark Disc Brake Spindle
    1979 Chevrolet Camaro Disc Brake Spindle
    1979 Chevrolet Caprice With OE 11" Rotor Spindles
    1979 Chevrolet Impala With OE 11" Rotor Spindles
    1979 Chevrolet Nova Disc Brake Spindle
    1979 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1979 Oldsmobile Omega Disc Brake Spindle
    1979 Pontiac Bonneville With OE 11" Rotor Spindles
    1979 Pontiac Catalina With OE 11" Rotor Spindles
    1979 Pontiac Firebird Disc Brake Spindle
    1979 Pontiac Phoenix Disc Brake Spindle
    1980 Buick Estate Wagon With OE 11" Rotor Spindles
    1980 Buick LeSabre With OE 11" Rotor Spindles
    1980 Chevrolet Camaro Disc Brake Spindle
    1980 Chevrolet Caprice With OE 11" Rotor Spindles
    1980 Chevrolet Impala With OE 11" Rotor Spindles
    1980 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1980 Pontiac Bonneville With OE 11" Rotor Spindles
    1980 Pontiac Catalina With OE 11" Rotor Spindles
    1980 Pontiac Firebird Disc Brake Spindle
    1980 Pontiac Parisienne With OE 11" Rotor Spindles
    1981 Buick Estate Wagon With OE 11" Rotor Spindles
    1981 Buick LeSabre With OE 11" Rotor Spindles
    1981 Chevrolet Camaro Disc Brake Spindle
    1981 Chevrolet Caprice With OE 11" Rotor Spindles
    1981 Chevrolet Impala With OE 11" Rotor Spindles
    1981 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1981 Pontiac Bonneville With OE 11" Rotor Spindles
    1981 Pontiac Catalina With OE 11" Rotor Spindles
    1981 Pontiac Firebird Disc Brake Spindle
    1981 Pontiac Parisienne With OE 11" Rotor Spindles
    1982 Buick Estate Wagon With OE 11" Rotor Spindles
    1982 Buick LeSabre With OE 11" Rotor Spindles
    1982 Chevrolet Caprice With OE 11" Rotor Spindles
    1982 Chevrolet Impala With OE 11" Rotor Spindles
    1982 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1982 Pontiac Parisienne With OE 11" Rotor Spindles
    1983 Buick Estate Wagon With OE 11" Rotor Spindles
    1983 Buick LeSabre With OE 11" Rotor Spindles
    1983 Chevrolet Caprice With OE 11" Rotor Spindles
    1983 Chevrolet Impala With OE 11" Rotor Spindles
    1983 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1983 Pontiac Parisienne With OE 11" Rotor Spindles
    1984 Buick Estate Wagon With OE 11" Rotor Spindles
    1984 Buick LeSabre With OE 11" Rotor Spindles
    1984 Chevrolet Caprice With OE 11" Rotor Spindles
    1984 Chevrolet Impala With OE 11" Rotor Spindles
    1984 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1984 Pontiac Parisienne With OE 11" Rotor Spindles
    1985 Buick Estate Wagon With OE 11" Rotor Spindles
    1985 Buick LeSabre With OE 11" Rotor Spindles
    1985 Chevrolet Caprice With OE 11" Rotor Spindles
    1985 Chevrolet Impala With OE 11" Rotor Spindles
    1985 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles
    1985 Pontiac Parisienne With OE 11" Rotor Spindles
    1986 Chevrolet Caprice With OE 11" Rotor Spindles
    1986 Pontiac Parisienne With OE 11" Rotor Spindles
    1987 Chevrolet Caprice With OE 11" Rotor Spindles
    1988 Chevrolet Caprice With OE 11" Rotor Spindles
    1989 Chevrolet Caprice With OE 11" Rotor Spindles
    1990 Chevrolet Caprice With OE 11" Rotor Spindles

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-12836-D Specifications

    KEY SPECS
    MFG. Part #140-12836-D
    BrandWilwood
    PositionFront
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    Caliper PistonsSix
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter15 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Spindle TypeFactory Disc Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter12.19 in./309.63mm
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedYes
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    ColorBlack
    Bolt Pattern5 on 4.5" | 4.75"
    Front Caliper Piston QuantitySix
    Front Caliper FinishAnodized
    GENERAL
    GTIN Code889545017588
    Rotor Thickness0.81"
    Stud Diameter1/2-20
    Mount TypeLug
    OE Hub Offset-0.1"
    Total Piston Area5.06 sq. in.
    Piston TypeStainless
    Pad Area7.30 sq. in.
    Pad Volume2.4 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeDynapro 6
    Rotor FinishBlack E-Coat
    Rotor Material TypeCast Iron
    Vane Count32 Straight Vane
    BeddedNo
    BalancedNo
    Stud Diameter 21/2-20
