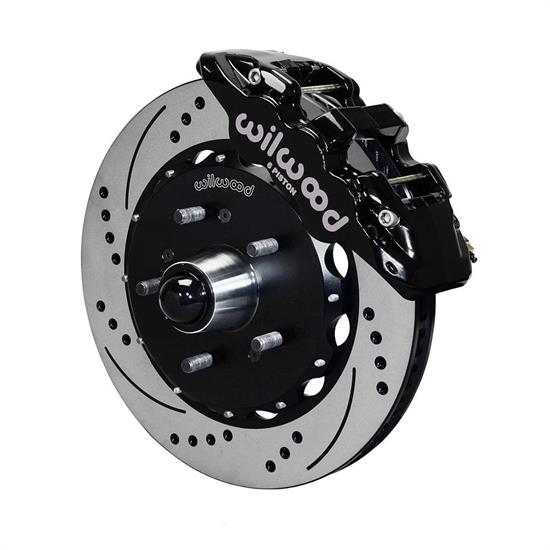

Wilwood 140-12824-D W6A 14.25 Front Disc Brake Kit, 1997-04 Ford F150

$241 Off

#83514012824D

Wilwood 140-12824-D W6A 14.25 Front Disc Brake Kit, 1997-04 Ford F150

Designed specifically for the 1997-2004 Ford F-150
14.25" rotor is designed to clear 18"-up wheels
Fully compatible with OE master cylinder output and ABS function

Rotor / Caliper Type:

Drilled

$2,931.63

/each

Factory Shipped

$3,172.39

Save $240.76

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14.25 Inch Rotor Diameter, Black

Designed specifically for the 1997-2004 Ford F-150
14.25" rotor is designed to clear 18"-up wheels
Fully compatible with OE master cylinder output and ABS function
Will mount up to the factory disc spindle
Calipers have 6 pistons and are powder coated black for added corrosion resistance

See more details

Key Specs

MFG. Part #	140-12824-D
Position	Front
Rotor Diameter	14.25 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12824-D Details

W6AR calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it's the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV's, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14" rotors provide maximum cooling for sustained high heat durability.

Application

1997 Ford F-150 5 Lug - 4 X 2, Disc Rear
1997 Ford F-150 5 Lug - 4 X 2, Drum Rear
1998 Ford F-150 5 Lug - 4 X 2, Disc Rear
1998 Ford F-150 5 Lug - 4 X 2, Drum Rear
1999 Ford F-150 5 Lug - 4 X 2, Disc Rear
1999 Ford F-150 5 Lug - 4 X 2, Drum Rear
2000 Ford F-150 5 Lug - 4 X 2, Disc Rear
2000 Ford F-150 5 Lug - 4 X 2, Drum Rear
2001 Ford F-150 5 Lug - 4 X 2, Disc Rear
2001 Ford F-150 5 Lug - 4 X 2, Drum Rear
2002 Ford F-150 5 Lug - 4 X 2
2003 Ford F-150 5 Lug - 4 X 2
2004 Ford F-150 5 Lug - 4 X 2, Heritage Model, Excpt 7700 GVW Rear Axle

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012824D)

Wilwood 140-12824-D Specifications

KEY SPECS
MFG. Part #	140-12824-D
Brand	Wilwood
Position	Front
Rotor Diameter	14.25 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	14.25 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 135mm
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545017540
Rotor Thickness	1.25"
Stud Diameter	0.52"
Mount Type	Radial
Total Piston Area	5.40 sq. in.
Piston Type	Stainless
Pad Area	11.00 sq. in.
Pad Volume	5.2 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	72 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.53"
Brake Lines Included	Yes
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 5.32
