#83514012617
Wilwood 140-12617 FDLI Pro Series Front Brake Kit, 1940-52 Oldsmobile
$988.74
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 23rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 5 on 5" Bolt Pattern, Vented Rotor Type
See more details
Key Specs
| Position | Front |
| Bolt Pattern | 5 on 5" |
| Rotor Diameter | 11.75 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-12617 Details
Wilwood 140-12617 Details
FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.
Application
1941 Oldsmobile Series 66 All
1941 Oldsmobile Series 68 All
1941 Oldsmobile Series 76 All
1941 Oldsmobile Series 78 All
1942 Oldsmobile Series 66 All
1942 Oldsmobile Series 68 All
1942 Oldsmobile Series 76 All
1942 Oldsmobile Series 78 All
1946 Oldsmobile Series 66 All
1946 Oldsmobile Series 76 All
1946 Oldsmobile Series 78 All
1947 Oldsmobile Series 66 All
1947 Oldsmobile Series 68 All
1947 Oldsmobile Series 76 All
1947 Oldsmobile Series 78 All
1948 Oldsmobile Series 66 All
1948 Oldsmobile Series 68 All
1948 Oldsmobile Series 76 All
1948 Oldsmobile Series 78 All
1949 Oldsmobile Series 76 All
1949 Oldsmobile Series 78 All
1949 Oldsmobile Series 88 All
1950 Oldsmobile 98 All
1950 Oldsmobile Series 76 All
1950 Oldsmobile Series 88 All
1951 Oldsmobile 98 All
1952 Oldsmobile 98 All
1941 Oldsmobile Series 68 All
1941 Oldsmobile Series 76 All
1941 Oldsmobile Series 78 All
1942 Oldsmobile Series 66 All
1942 Oldsmobile Series 68 All
1942 Oldsmobile Series 76 All
1942 Oldsmobile Series 78 All
1946 Oldsmobile Series 66 All
1946 Oldsmobile Series 76 All
1946 Oldsmobile Series 78 All
1947 Oldsmobile Series 66 All
1947 Oldsmobile Series 68 All
1947 Oldsmobile Series 76 All
1947 Oldsmobile Series 78 All
1948 Oldsmobile Series 66 All
1948 Oldsmobile Series 68 All
1948 Oldsmobile Series 76 All
1948 Oldsmobile Series 78 All
1949 Oldsmobile Series 76 All
1949 Oldsmobile Series 78 All
1949 Oldsmobile Series 88 All
1950 Oldsmobile 98 All
1950 Oldsmobile Series 76 All
1950 Oldsmobile Series 88 All
1951 Oldsmobile 98 All
1952 Oldsmobile 98 All
Charts
Installation Instructions (PDF)

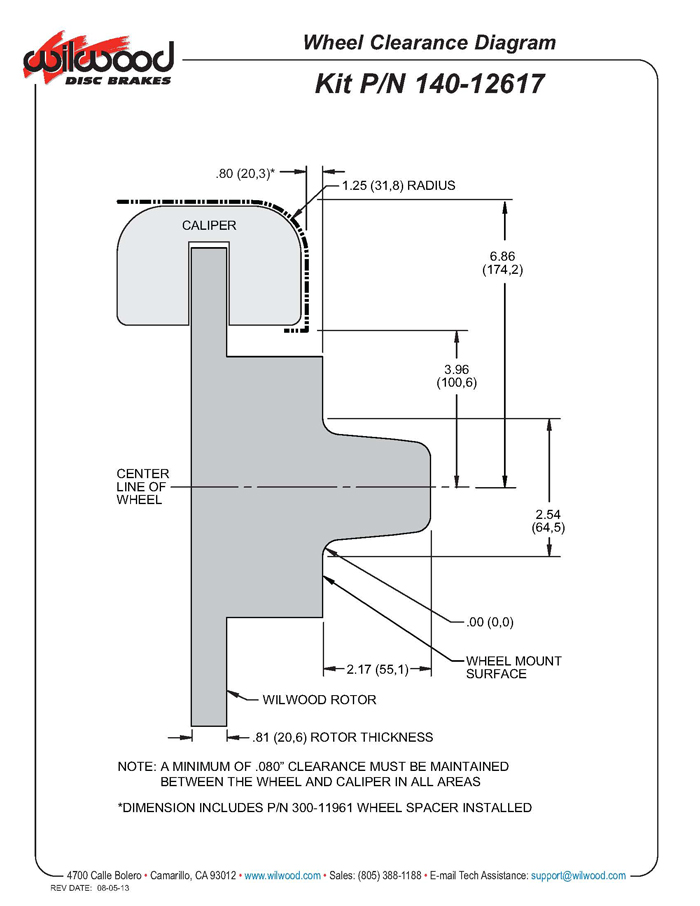

Wheel Clearance Diagram (JPG)
Wilwood 140-12617 Specifications
Wilwood 140-12617 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12617 |
| Brand | Wilwood |
| Position | Front |
| Bolt Pattern | 5 on 5" |
| Rotor Diameter | 11.75 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Hardware Included | Yes |
| Spindle Type | Factory Drum Spindle |
| Rotor Style | Plain Face |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11.75 Inch |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | No |
| GENERAL | |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0.039" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| GTIN Code | 889545017113 |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
