Wilwood 140-12576-D FNSL4R 12.19 Inch Front Disc Brake Kit, 84-06 Jeep

$113 Off

#83514012576D

Wilwood 140-12576-D FNSL4R 12.19 Inch Front Disc Brake Kit, 84-06 Jeep

Name: Wilwood 140-12576-D FNSL4R 12.19 Inch Front Disc Brake Kit, 84-06 Jeep
Brand: Wilwood
SKU: 83514012576D
Price: 1381.2 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

Undrilled

$1,381.20

/each

Factory Shipped

$1,494.63

Save $113.43

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Black

See more details

Key Specs

MFG. Part #	140-12576-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.19 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12576-D Details

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19" big rotor kit for these popular 84-89 Jeep YJ model vehicles (including Cherokee, Comanche, Wrangler and Wagoneer). Kits also can be fitted to select 1990 to 2006 YJ & TJ vehicles if retrofitted to the earlier 84-89 YJ spindle. SL4 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Application

1984 Jeep Cherokee All
1984 Jeep Wagoneer All
1985 Jeep Cherokee All
1985 Jeep Wagoneer All
1986 Jeep Cherokee 4 X 4 Only
1986 Jeep Comanche 4 X 4 Only
1986 Jeep Wagoneer 4 X 4 Only
1987 Jeep Cherokee 4 X 4 Only
1987 Jeep Comanche 4 X 4 Only
1987 Jeep Wagoneer 4 X 4 Only
1987 Jeep Wrangler (YJ) All
1988 Jeep Cherokee 4 X 4 Only
1988 Jeep Comanche 4 X 4 Only
1988 Jeep Wagoneer 4 X 4 Only
1988 Jeep Wrangler (YJ) All
1989 Jeep Cherokee 4 X 4 Only
1989 Jeep Comanche 4 X 4 Only
1989 Jeep Wagoneer 4 X 4 Only
1989 Jeep Wrangler (YJ) All
1990 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1990 Jeep Comanche Req. conversion to 87-89 YJ front spindles
1990 Jeep Wagoneer Req. conversion to 87-89 YJ front spindles
1990 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1991 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1991 Jeep Comanche Req. conversion to 87-89 YJ front spindles
1991 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1992 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1992 Jeep Comanche Req. conversion to 87-89 YJ front spindles
1992 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1993 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1993 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1993 Jeep Grand Wagoneer Req. conversion to 87-89 YJ front spindles
1993 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1994 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1994 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1994 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1995 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1995 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1995 Jeep Wrangler (YJ) Req. conversion to 87-89 YJ front spindles
1996 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1996 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1997 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1997 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1997 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
1997 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
1998 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1998 Jeep Grand Cherokee Req. conversion to 87-89 YJ front spindles
1998 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
1998 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
1999 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
1999 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
1999 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2000 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
2000 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2000 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2001 Jeep Cherokee Req. conversion to 87-89 YJ front spindles
2001 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2001 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2002 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2002 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2003 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2003 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2004 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2004 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2005 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2005 Jeep Wrangler Req. conversion to 87-89 YJ front spindles
2006 Jeep TJ Series Req. conversion to 87-89 YJ front spindles
2006 Jeep Wrangler Req. conversion to 87-89 YJ front spindles

Charts

Installation Instructions (PDF)

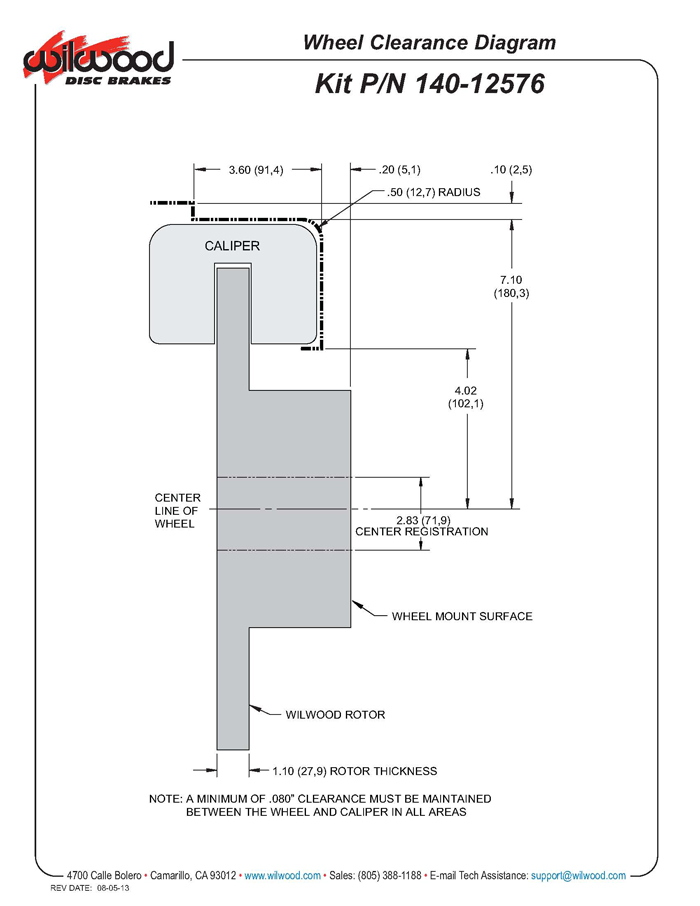

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012576D)

Wilwood 140-12576-D Specifications

KEY SPECS
MFG. Part #	140-12576-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	16 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 4.5"
Color	Black
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545017007
Rotor Thickness	1.1"
Stud Diameter	0.63"
Mount Type	Radial
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Drag Hat- Standard
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.68"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1984-2001 Jeep Cherokee

1986-1992 Jeep Comanche

1993-1998 Jeep Grand Cherokee

1993 Jeep Grand Wagoneer

1997-2006 Jeep TJ

1984-1990 Jeep Wagoneer

1987-2006 Jeep Wrangler
