#83514012552D

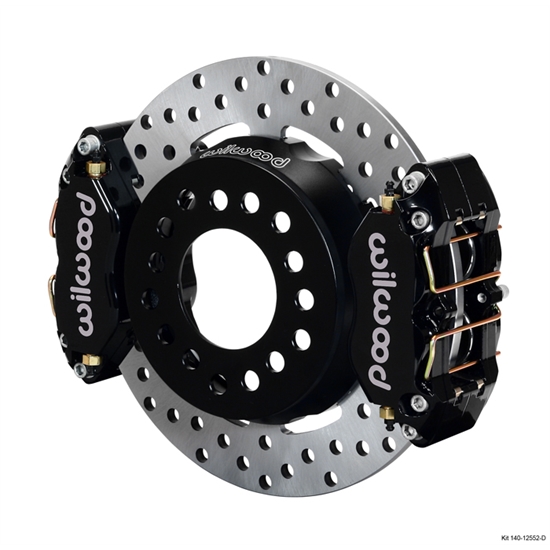

Wilwood 140-12552-D Dynapro Lug Mt Rear Brake Kit, Big Ford New Style
by
Wilwood
$1,378.19
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before February 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Ford 9 Inch, Rear Position, 11.44 Inch Rotor Diameter
See more details
Key Specs
Position | Rear |
Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
Rotor Diameter | 11.44 Inch |
Rotor Type | Solid |
Caliper Pistons | Four |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-12552-D Details
Wilwood 140-12552-D Details
Wilwood's new Billet Dynapro Lug-Drive Dynamic Stainless Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.
Charts
Wilwood 140-12552-D Specifications
Wilwood 140-12552-D Specifications
KEY SPECS | |
---|---|
MFG. Part # | 140-12552-D |
Brand | Wilwood |
Position | Rear |
Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
Rotor Diameter | 11.44 Inch |
Rotor Type | Solid |
Caliper Pistons | Four |
Caliper Finish | Anodized |
Color | Gray |
Parking Brake Provision | No |
Minimum Recommended Wheel Diameter | 15 Inch |
Rotor Style | Drilled |
Front Rotor Included | No |
Front Caliper Included | No |
Rear Caliper Included | Yes |
Front Spindles Included | No |
Master Cylinder Included | No |
Brake Booster Included | No |
Rear Rotor Included | Yes |
GENERAL | |
Rotor Thickness | 0.35" |
Axle Flange Offset | 2.50" |
Mount Type | Lug |
Total Piston Area | 4.80 sq. in. |
Piston Type | Stainless |
Pad Area | 6.36 sq. in. |
Pad Volume | 2.10 cu. in. |
Brake Pad Compound | Composite Metallic |
Caliper Type | Dynapro Lug Mount |
Rotor Finish | Plain |
Rotor Material Type | Steel |
Vane Count | None |
Bedded | No |
Balanced | No |
Hat Type | Dynamic Drag Hat - Lug Drive |
Hat Finish | Black E-Coat |
Hat Bolt Circle 3 | 5 x 5.00 |
Hat Bolt Circle 2 | 5 x 4.75 |
Hat Bolt Circle 1 | 5 x 4.50 |
Hat Material Type | Aluminum |
Hat Offset Dimension | 1.64" |
GTIN Code | 889545016819 |
Ford Bearing End Style | Big Ford New Style (Torino) |
