Wilwood 140-12535 FDLI Pro Series Front Disc Brake Kit, 63-66 Ford/Merc

$103 Off

#83514012535

Wilwood 140-12535 FDLI Pro Series Front Disc Brake Kit, 63-66 Ford/Merc

Specifically designed for the 1963-1966 Ford/Mercury vehicles (see list)
Kits can be used with either manual or power boost master cylinders
Will fit the factory drum spindles and require no modifications for installation

$1,257.18

/each

Factory Shipped

$1,360.42

Save $103.24

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 10.75 Inch Rotor Diameter, Black

Specifically designed for the 1963-1966 Ford/Mercury vehicles (see list)
Kits can be used with either manual or power boost master cylinders
Will fit the factory drum spindles and require no modifications for installation
Billet Dynalite caliper has 4 pistons and is powder coated black for added corrosion resistance
Rotors measure 10.75" in diameters and will clear 15"-up wheels

See more details

Key Specs

MFG. Part #	140-12535
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	10.75 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12535 Details

FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

Application

1963 Ford Falcon 6 Cylinder Spindle Only
1963 Ford Ranchero 6 Cylinder Spindle Only
1963 Mercury Comet 6 Cylinder Spindle Only
1964 Ford Falcon 6 Cylinder Spindle Only
1964 Ford Mustang Drum Brake 6 Cylinder Spindle Only
1964 Ford Ranchero 6 Cylinder Spindle Only
1964 Mercury Comet 6 Cylinder Spindle Only
1965 Ford Falcon Drum Brake 6 Cylinder Spindle Only
1965 Ford Mustang Drum Brake 6 Cylinder Spindle Only
1965 Ford Ranchero Drum Brake 6 Cylinder Spindle Only
1965 Mercury Comet Drum Brake 6 Cylinder Spindle Only
1966 Ford Falcon Drum Brake 6 Cylinder Spindle Only
1966 Ford Mustang Drum Brake 6 Cylinder Spindle Only
1966 Mercury Comet Drum Brake 6 Cylinder Spindle Only

Charts

Installation Instructions (PDF)

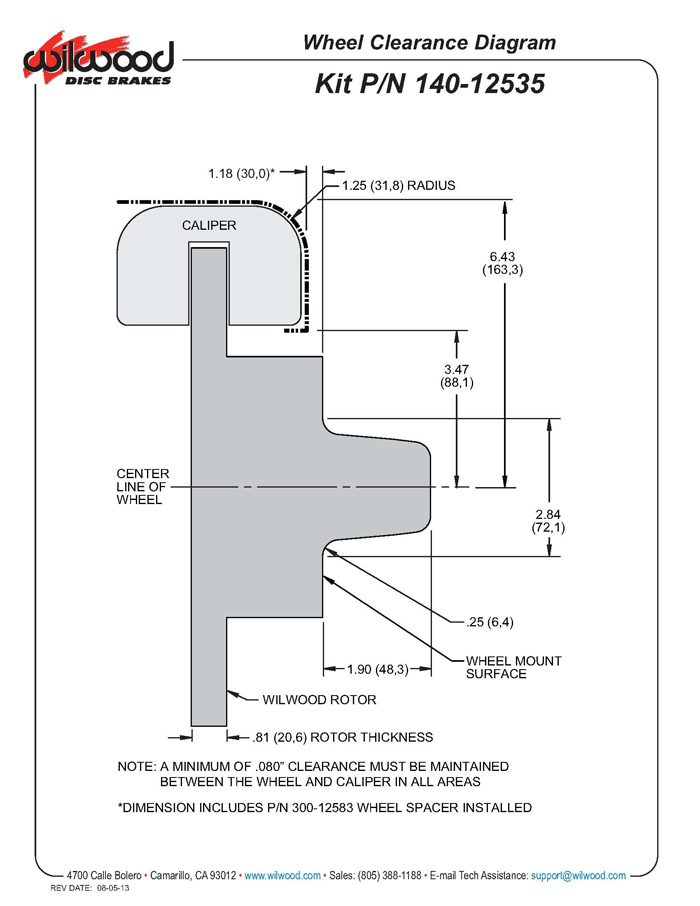

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012535)

Wilwood 140-12535 Specifications

KEY SPECS
MFG. Part #	140-12535
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	10.75 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	10.75 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	4 on 4.5"
Color	Black
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545016710
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1963-1966 Ford Falcon

1964-1966 Ford Mustang

1963-1965 Ford Ranchero

1963-1966 Mercury Comet
