Wilwood 140-12321 FDL 11.88 Inch Front Disc Brake Kit, 1941-56 Buick
- Designed to fit 1941 to 1956 Buick vehicles
- Rotors have a 11.88" and are engineered to fit 15"-up wheels
- Four piston calipers have a Type III gray anodized finish for improved looks and added protection
$866.93
/each
In Stock
$970.96
Save $104.03
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 11.88 Inch Rotor Diameter, Anodized
- Designed to fit 1941 to 1956 Buick vehicles
- Rotors have a 11.88" and are engineered to fit 15"-up wheels
- Four piston calipers have a Type III gray anodized finish for improved looks and added protection
- Designed to bolt on the OEM drum spindles
- Can be used with either manual or power boost master cylinders
Key Specs
| MFG. Part # | 140-12321 |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 11.88 Inch |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-12321 Details
Wilwood 140-12321 Details
Wilwood's new FDL Pro-Series Front 1 Piece Hub and Rotor Kits for Buick vehicles 1941 to 1956, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.88" x 1.29" rotor with a 5 x 5" bolt circle pattern and hub assembly . Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets and hardware. Requires purchase of additional brake line kit shown below.
Application
1942 Buick Roadmaster Series 70 All
1950 Buick Roadmaster All
1950 Buick Special All
1950 Buick Super All
1951 Buick Roadmaster All
1951 Buick Special All
1951 Buick Super All
1952 Buick Roadmaster All
1952 Buick Special All
1952 Buick Super All
1953 Buick Roadmaster All
1953 Buick Special All
1953 Buick Super All
1954 Buick Century All
1954 Buick Roadmaster All
1954 Buick Skylark All
1954 Buick Special All
1954 Buick Super All
1955 Buick Century All
1955 Buick Roadmaster All
1955 Buick Special All
1955 Buick Super All
1956 Buick Century All
1956 Buick Roadmaster All
1956 Buick Special All
1956 Buick Super All
Charts
Installation Instructions (PDF)

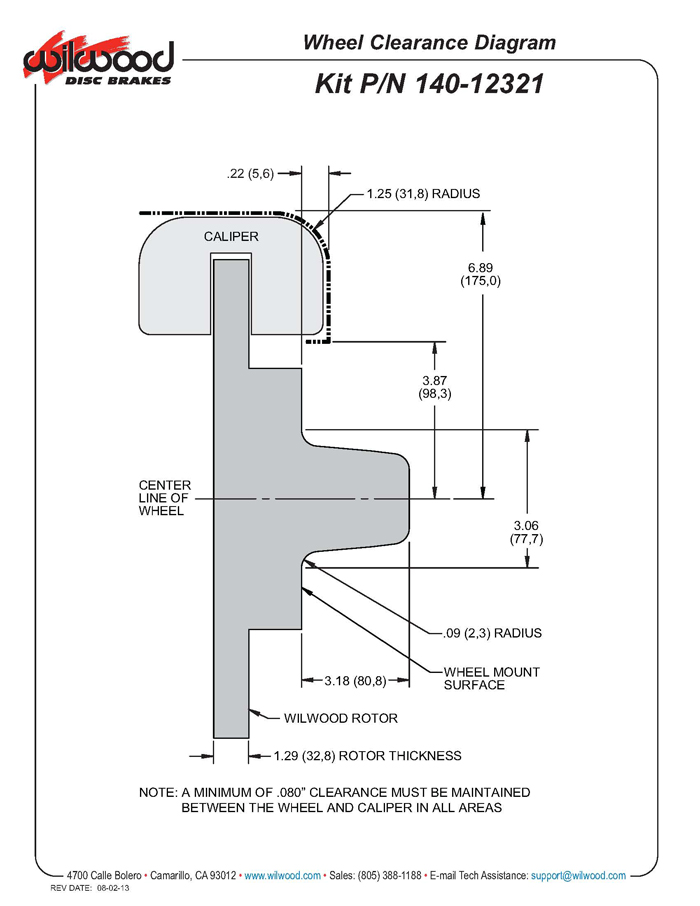

Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
Wilwood 140-12321 Specifications
Wilwood 140-12321 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12321 |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 11.88 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Anodized |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Spindle Type | Factory Drum Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11.88 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
| Bolt Pattern | 5 on 5" |
| Color | Gray |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Anodized |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545016291 |
| Rotor Thickness | 1.29" |
| Thread Pitch | 1/2"-20 |
| Mount Type | Lug |
| Total Piston Area | 4.8 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Gray |
| Caliper Material Type | Forged Aluminum |
