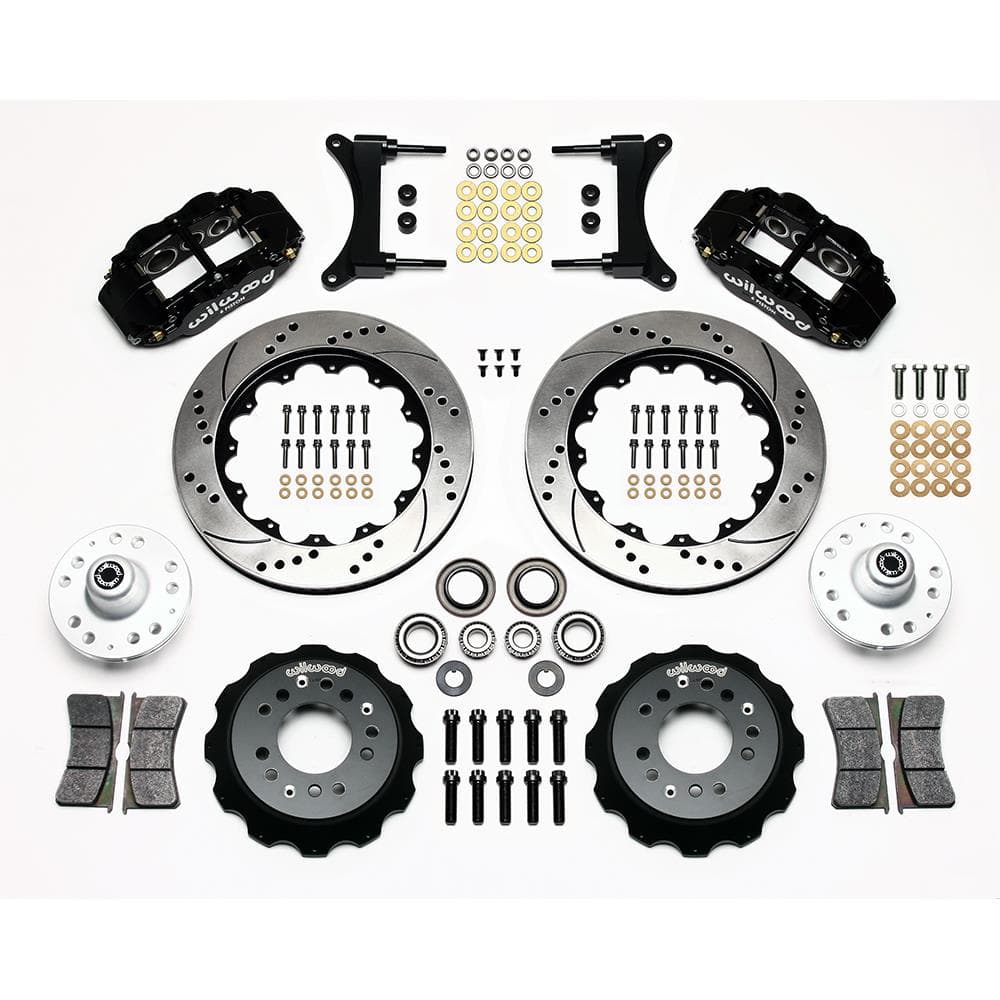

Wilwood 140-12299-D FNSL6R Front Disc Brake Kit, 79-02 GM G-Body/S-10

$211 Off

#83514012299D

Wilwood 140-12299-D FNSL6R Front Disc Brake Kit, 79-02 GM G-Body/S-10

Specifically designed to fit 1979-2002 GM G-body-S-10
Includes forged six-piston calipers that are powder coated black for enhanced corrosion resistance
Rotors have a 14" diameter and will clear 18"-up wheels

Rotor / Caliper Type:

Drilled

$2,564.31

/each

Factory Shipped

$2,774.91

Save $210.60

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Powder Coated

Specifically designed to fit 1979-2002 GM G-body-S-10
Includes forged six-piston calipers that are powder coated black for enhanced corrosion resistance
Rotors have a 14" diameter and will clear 18"-up wheels
Each set comes pre-drilled with the dual 5x4.5"/4.75" bolt pattern
A drilled and slotted design offers excellent heat dissipation properties

See more details

Key Specs

MFG. Part #	140-12299-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	14 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12299-D Details

FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Application

1979 Buick Century All
1979 Buick Regal All
1979 Chevrolet El Camino All
1979 Chevrolet Malibu All
1979 Chevrolet Monte Carlo All
1979 Oldsmobile Cutlass All
1979 Pontiac Grand Am All
1979 Pontiac Grand Prix All
1979 Pontiac LeMans All
1980 Buick Century All
1980 Buick Regal All
1980 Chevrolet El Camino All
1980 Chevrolet Malibu All
1980 Chevrolet Monte Carlo All
1980 Oldsmobile Cutlass All
1980 Oldsmobile Cutlass Cruiser All
1980 Pontiac Grand Am All
1980 Pontiac Grand Prix All
1980 Pontiac LeMans All
1981 Buick Century All
1981 Buick Regal All
1981 Chevrolet El Camino All
1981 Chevrolet Malibu All
1981 Chevrolet Monte Carlo All
1981 Oldsmobile Cutlass All
1981 Oldsmobile Cutlass Cruiser All
1981 Pontiac Grand Prix All
1981 Pontiac LeMans All (Canada)
1982 Buick Regal All
1982 Buick Regal Grand National All
1982 Chevrolet El Camino All
1982 Chevrolet Malibu All
1982 Chevrolet Monte Carlo All
1982 Chevrolet S10 Pickup All
1982 GMC S15 Pickup All
1982 Oldsmobile Cutlass Cruiser All
1982 Oldsmobile Cutlass Supreme RWD only
1982 Pontiac Bonneville All
1982 Pontiac Grand Prix All
1983 Buick Regal All
1983 Buick Regal Grand National All
1983 Chevrolet El Camino All
1983 Chevrolet Malibu All
1983 Chevrolet Monte Carlo All
1983 Chevrolet S10 Blazer 4 x 2
1983 Chevrolet S10 Pickup 4 x 2
1983 GMC S15 Jimmy 4 x 2
1983 GMC S15 Pickup 4 x 2
1983 Oldsmobile Cutlass Cruiser All
1983 Oldsmobile Cutlass Supreme RWD only
1983 Pontiac Bonneville All
1983 Pontiac Grand Prix All
1984 Buick Regal All
1984 Buick Regal Grand National All
1984 Chevrolet El Camino All
1984 Chevrolet Monte Carlo All
1984 Chevrolet S10 Blazer 4 x 2
1984 Chevrolet S10 Pickup 4 x 2
1984 GMC S15 Jimmy 4 x 2
1984 GMC S15 Pickup 4 x 2
1984 Oldsmobile Cutlass Supreme RWD only
1984 Pontiac Bonneville All
1984 Pontiac Grand Prix All
1985 Buick Regal All
1985 Buick Regal Grand National All
1985 Chevrolet El Camino All
1985 Chevrolet Monte Carlo All
1985 Chevrolet S10 Blazer 4 x 2
1985 Chevrolet S10 Pickup 4 x 2
1985 GMC S15 Jimmy 4 x 2
1985 GMC S15 Pickup 4 x 2
1985 Oldsmobile Cutlass Supreme RWD only
1985 Pontiac Bonneville All
1985 Pontiac Grand Prix All
1986 Buick Regal All
1986 Buick Regal Grand National All
1986 Chevrolet El Camino All
1986 Chevrolet Monte Carlo All
1986 Chevrolet S10 Blazer 4 x 2
1986 Chevrolet S10 Pickup 4 x 2
1986 GMC S15 Jimmy 4 x 2
1986 GMC S15 Pickup 4 x 2
1986 Oldsmobile Cutlass Supreme RWD only
1986 Pontiac Bonneville All
1986 Pontiac Grand Prix All
1987 Buick Regal All
1987 Buick Regal Grand National All
1987 Chevrolet El Camino All
1987 Chevrolet Monte Carlo All
1987 Chevrolet S10 Blazer 4 x 2
1987 Chevrolet S10 Pickup 4 x 2
1987 GMC S15 Jimmy 4 x 2
1987 GMC S15 Pickup 4 x 2
1987 Oldsmobile Cutlass Supreme RWD only
1987 Pontiac Bonneville All
1987 Pontiac Grand Prix All
1988 Chevrolet Monte Carlo All
1988 Chevrolet S10 Blazer 4 x 2
1988 Chevrolet S10 Pickup 4 x 2
1988 GMC S15 Jimmy 4 x 2
1988 GMC S15 Pickup 4 x 2
1988 Oldsmobile Cutlass Supreme RWD only
1989 Chevrolet S10 Blazer 4 x 2
1989 Chevrolet S10 Pickup 4 x 2
1989 GMC S15 Jimmy 4 x 2
1989 GMC S15 Pickup 4 x 2
1990 Chevrolet S10 Blazer 4 x 2
1990 Chevrolet S10 Pickup 4 x 2
1990 GMC S15 Jimmy 4 x 2
1990 GMC S15 Pickup 4 x 2
1991 Chevrolet S10 Blazer 4 x 2
1991 Chevrolet S10 Pickup 4 x 2
1991 GMC S15 Jimmy 4 x 2
1992 Chevrolet S10 Blazer 4 x 2
1992 Chevrolet S10 Pickup 4 x 2
1993 Chevrolet S10 Blazer 4 x 2
1993 Chevrolet S10 Pickup 4 x 2
1994 Chevrolet S10 Blazer 4 x 2
1994 Chevrolet S10 Pickup 4 x 2
1995 Chevrolet S10 Blazer 4 x 2
1995 Chevrolet S10 Pickup 4 x 2
1996 Chevrolet S10 Blazer 4 x 2
1996 Chevrolet S10 Pickup 4 x 2
1996 Isuzu Hombre 4 x 2
1997 Chevrolet S10 Blazer 4 x 2
1997 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1997 Isuzu Hombre 4 x 2
1998 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1998 Isuzu Hombre 4 x 2
1999 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
1999 Isuzu Hombre 4 x 2
2000 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
2000 Isuzu Hombre 4 x 2
2001 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear
2002 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012299D)

Wilwood 140-12299-D Specifications

KEY SPECS
MFG. Part #	140-12299-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	14 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	14 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545016123
Rotor Thickness	1.1"
Stud Diameter	0.52"
Mount Type	Radial
OE Hub Offset	0.1"
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	72 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.38"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50
Hat Bolt Circle 2	5 x 4.75
Stud Diameter 2	0.52"

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1979-1981 Buick Century

1984-1987 Buick Grand National

1979-1987 Buick Regal

1995-1997 Chevy Blazer

1979-1987 Chevy El Camino

1979-1983 Chevy Malibu

1979-1988 Chevy Monte Carlo

1982-2002 Chevy S10

1983-1994 Chevy S10 Blazer

1991 GMC Jimmy

1982-1990 GMC S15

1983-1991 GMC S15 Jimmy

1996-2000 Isuzu Hombre

1979-1987 Oldsmobile Cutlass

1981-1983 Oldsmobile Cutlass Cruiser

1982-1988 Oldsmobile Cutlass Supreme

1982-1986 Pontiac Bonneville

1979-1980 Pontiac Grand Am

1979-1987 Pontiac Grand Prix

1979-1981 Pontiac LeMans
