$148 Off
$148 Off
|
#83514012280DR
$1,802.80
/each
Factory Shipped
$1,950.86
Save $148.06
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-12280-DR |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 12.88 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

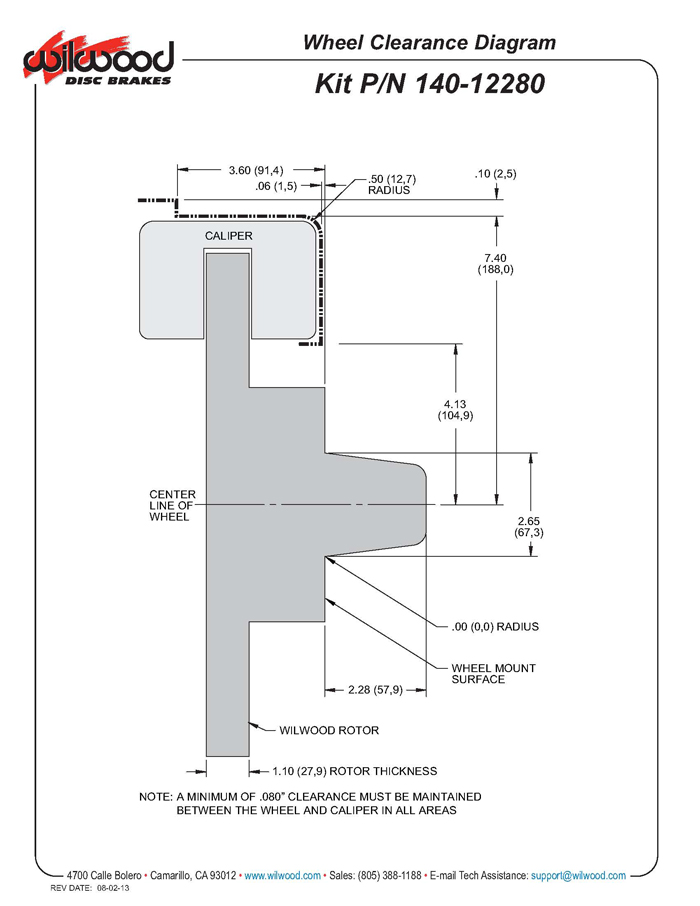

Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12280-DR |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 12.88 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 17 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.88 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545015973 |
| Rotor Thickness | 1.1" |
| Stud Diameter | 1/2-20 |
| Mount Type | Radial |
| OE Hub Offset | 0.3" |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 34 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
Be the first to ask a question.
1979-1983 Buick Estate Wagon
1979-1985 Buick LeSabre
1979 Buick Skylark
1979-1981 Chevy Camaro
1979-1990 Chevy Caprice
1979-1985 Chevy Impala
1979 Chevy Nova
1979-1985 Oldsmobile Custom Cruiser
1979 Oldsmobile Omega
1979-1981 Pontiac Bonneville
1979-1981 Pontiac Catalina
1979-1981 Pontiac Firebird
1980-1986 Pontiac Parisienne
1979 Pontiac Phoenix
