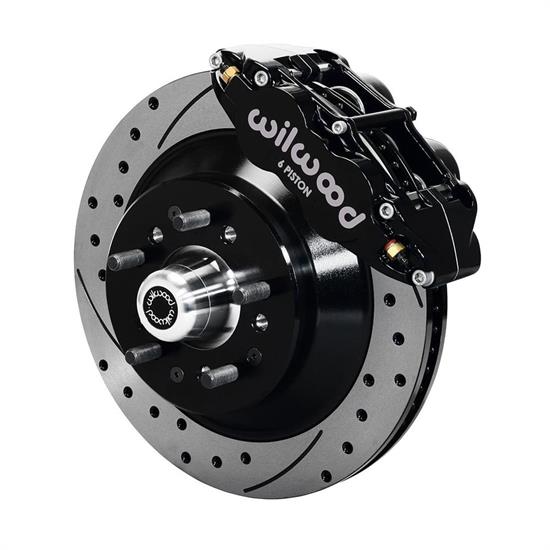

Wilwood 140-12275-D FNSL6R Front Disc Brake Kit,74-80 Pinto/Mustang II

$148 Off

Wilwood 140-12275-D FNSL6R Front Disc Brake Kit,74-80 Pinto/Mustang II
Wilwood

|

#83514012275D

Wilwood 140-12275-D FNSL6R Front Disc Brake Kit,74-80 Pinto/Mustang II

  • Designed specifically for the 1974-1980 Ford Pinto/Mustang II
  • 12.88" is designed to clear 17"-up wheels
  • Engineered to mount up to the factory disc spindles
See More

Rotor / Caliper Type:

Drilled

UndrilledDrilled / RedUndrilled / Red

$1,802.80

/each

Factory Shipped

$1,950.86

Save $148.06


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.88 Inch Rotor Diameter, Black

  • Designed specifically for the 1974-1980 Ford Pinto/Mustang II
  • 12.88" is designed to clear 17"-up wheels
  • Engineered to mount up to the factory disc spindles
  • 4 piston calipers have black powder coated finish for added corrosion protection
  • A drilled and slotted caliper design provides excellent heat dissipation
See more details

Key Specs

MFG. Part #140-12275-D
PositionFront
Wheel Bolt Pattern (in.)5x4.5 in.
Wheel Bolt Pattern (mm)5x114.3 mm
Rotor Diameter12.88 Inch
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12275-D Details

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Charts

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-12275-D Specifications

KEY SPECS
MFG. Part #140-12275-D
BrandWilwood
PositionFront
Wheel Bolt Pattern (in.)5x4.5 in.
Wheel Bolt Pattern (mm)5x114.3 mm
Rotor Diameter12.88 Inch
Rotor TypeVented
Caliper PistonsSix
Caliper FinishPowder Coated
Parking Brake ProvisionNo
Minimum Recommended Wheel Diameter17 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StyleDrilled & Slotted
Spindle TypeDrop & Factory Disc Spindles
Front Rotor IncludedYes
Front Rotor Diameter12.88 Inch
Front Caliper IncludedYes
Rear Caliper IncludedNo
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedYes
Rear Rotor IncludedNo
ColorBlack
Front Caliper Piston Quantity6
Bolt Pattern5 on 4.5" | 4.75"
Front Caliper FinishPowder Coated
GENERAL
GTIN Code889545015843
Rotor Thickness1.1"
Stud Diameter1/2-20
Mount TypeRadial
OE Hub Offset0.55"
Total Piston Area4.04 sq. in.
Piston TypeStainless
Pad Area8.20 sq. in.
Pad Volume3.8 cu. in.
Brake Pad CompoundBP-10
Caliper TypeRadial
Rotor FinishBlack E-Coat
Rotor Material TypeIron
Vane Count34 Straight Vane
BeddedNo
BalancedNo
Brake Lines IncludedNo
Caliper ColorBlack
Caliper Material TypeForged Aluminum
Stud Diameter 21/2-20
