Wilwood 140-12272 12.88 Front Brake Kit Magnum Force Drop Spindle

$136 Off

#83514012272

Wilwood 140-12272 12.88 Front Brake Kit Magnum Force Drop Spindle

Name: Wilwood 140-12272 12.88 Front Brake Kit Magnum Force Drop Spindle
Brand: Wilwood
SKU: 83514012272
Price: 1660.49 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Drilled Drilled / Red Undrilled / Red

$1,660.49

/each

Factory Shipped

$1,796.86

Save $136.37

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.88 Inch Rotor Diameter, Black

See more details

Key Specs

MFG. Part #	140-12272
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.88 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12272 Details

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Installation Instructions (PDF)

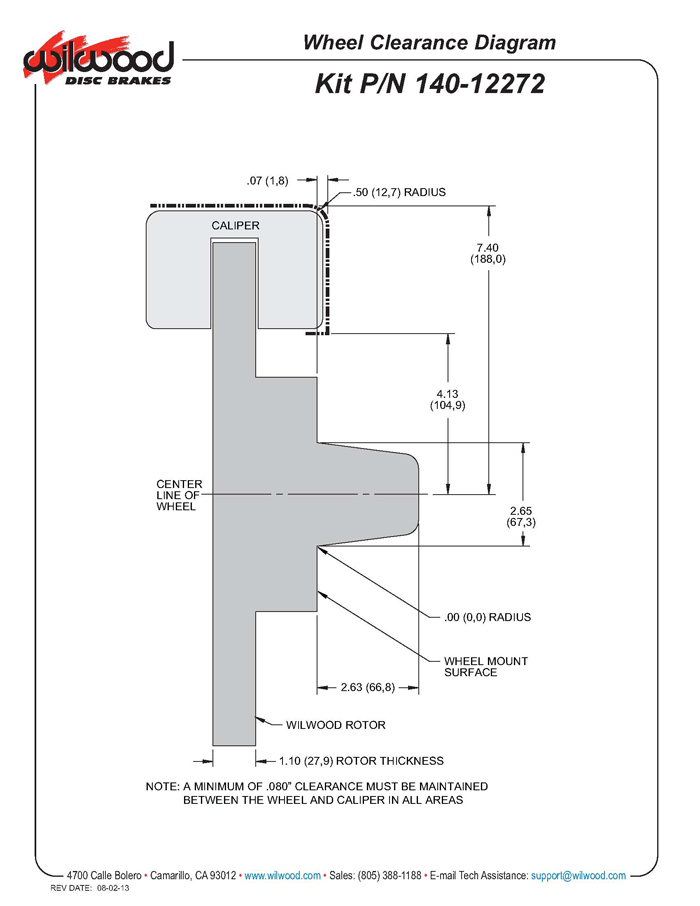

Wheel Clearance Diagram

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012272)

Wilwood 140-12272 Specifications

KEY SPECS
MFG. Part #	140-12272
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	17 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Slotted
Spindle Type	Drop Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.88 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Anodized

GENERAL
GTIN Code	889545015751
Rotor Thickness	1.1"
Stud Diameter	1/2-20
Mount Type	Radial
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	34 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20
