#83514012216
Wilwood 140-12216 D154 Rear Brake Kit, Big Ford New Style 2.36 Off
$897.68
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 16th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter
See more details
Key Specs
| Position | Rear |
| Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Two |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-12216 Details
Wilwood 140-12216 Details

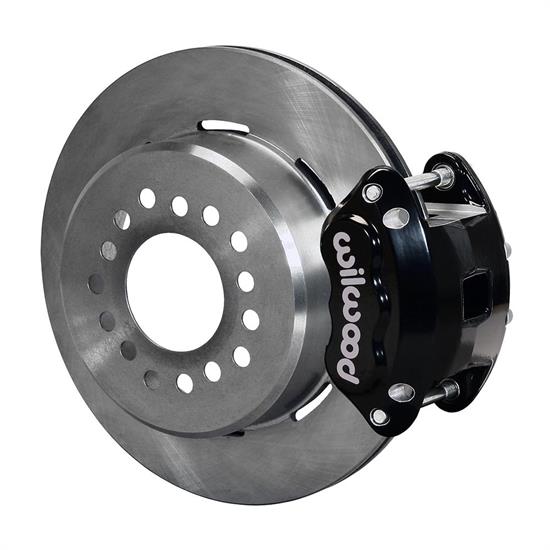

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Charts
Wilwood 140-12216 Specifications
Wilwood 140-12216 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12216 |
| Brand | Wilwood |
| Position | Rear |
| Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Two |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | Yes |
| Minimum Recommended Wheel Diameter | 16 Inch |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Front Rotor Included | No |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | Yes |
| GENERAL | |
| Rotor Thickness | 0.81" |
| Axle Flange Offset | 2.36" |
| Mount Type | Floating |
| Total Piston Area | 1.98 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.70 sq. in. |
| Pad Volume | 2.90 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Floating |
| Rotor Finish | Plain |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| GTIN Code | 889545015591 |
| Brake Lines Included | No |
| Ford Bearing End Style | Big Ford New Style (Torino) |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
