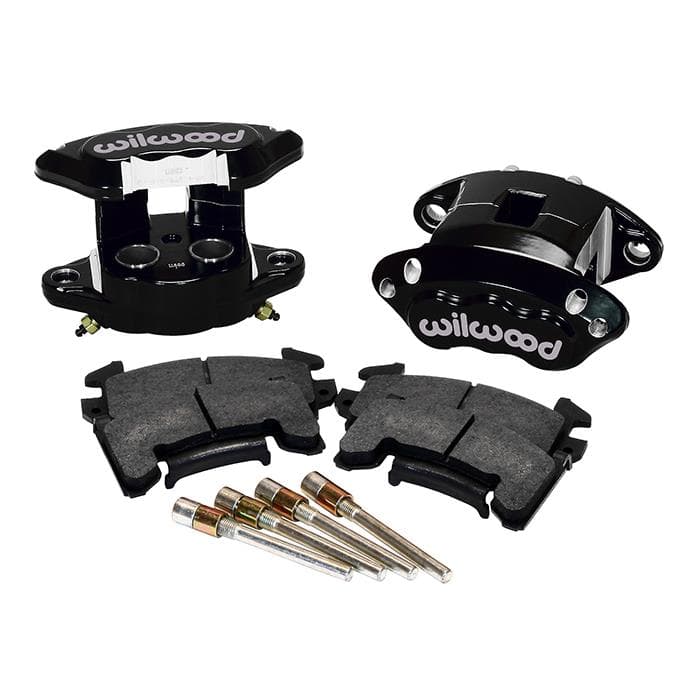

Wilwood 140-12101-BK D154 Rear Caliper Kit, 1.12 Piston/1.04 Rotor
Wilwood 140-12101-BK D154 Rear Caliper Kit, 1.12 Piston/1.04 Rotor
Universal Fit, Two Caliper Pistons, 1.04" Rotor Thickness, Aluminum, Powder Coated, Black
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-12101-BK D154 Rear Caliper Kit, 1.12 Piston/1.04 Rotor
X
We estimate this item will ship on or before May 3rd.
Part # 83514012101BK
$383.32
$404.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Caliper Pistons:
Two
Rotor Thickness:
1.04"
Material Type:
Aluminum
Finish:
Powder Coated
Bore Size:
1.12"
Color:
Black
Total Piston Area:
1.98 sq. in.
Pad Area:
8.7 sq. in.
Pad Volume:
2.9 cu. in.
Mount Type:
Floating
Caliper Type:
D154
Caliper Finish:
Powder Coated
Piston Type:
Stainless
Brake Pad Compound:
BP-10
Position:
Rear
MFG. Part #:
140-12101-BK
GTIN Code:
889545015157
Info
Wilwood's D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads.
Charts
Important Messages
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
