$198 Off

Wilwood 140-11919-D FNSL6R Front Disc Brake Kit, 1985-87 Corvette C4

$198 Off

#83514011919D

Wilwood 140-11919-D FNSL6R Front Disc Brake Kit, 1985-87 Corvette C4

Name: Wilwood 140-11919-D FNSL6R Front Disc Brake Kit, 1985-87 Corvette C4
Brand: Wilwood
SKU: 83514011919D
Price: 2411.9 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

UndrilledDrilled / Red Undrilled / Red

$2,411.90

/each

Factory Shipped

$2,609.98

Save $198.08

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11919-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	14 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11919-D Details

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Application

1985 Chevrolet Corvette C-4
1986 Chevrolet Corvette C-4
1987 Chevrolet Corvette C-4

Charts

Installation Instructions (PDF)

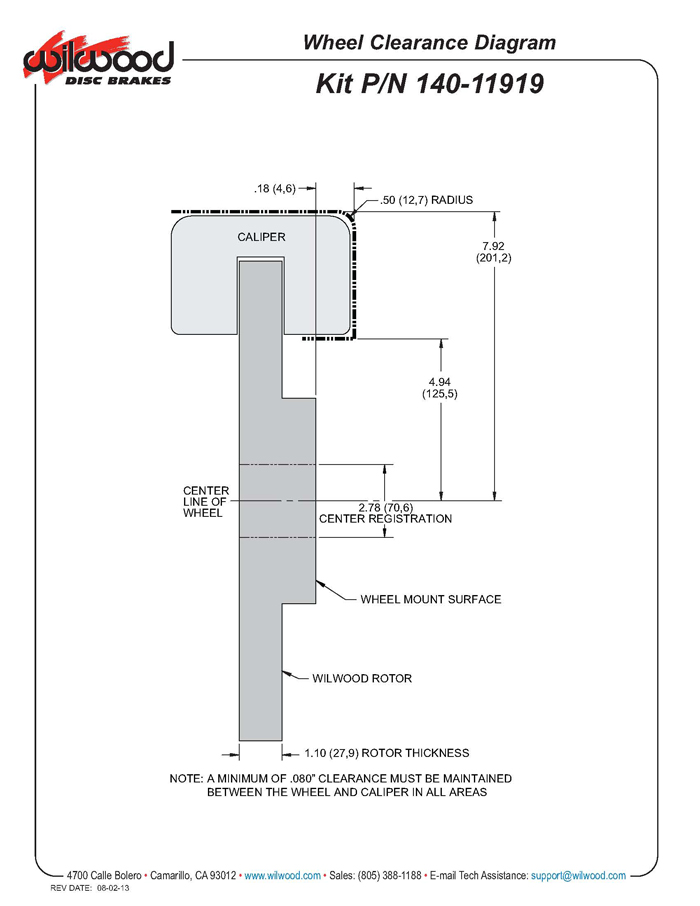

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011919D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-11919-D Specifications

KEY SPECS
MFG. Part #	140-11919-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	14 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	14 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545014426
Rotor Thickness	1.1"
Stud Diameter	0.52"
Mount Type	Radial
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	72 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.50"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.75

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1985-1987 Chevy Corvette
