Wilwood 140-11899-DR DP6 12.19 Inch Front Brake Kit, 2011 Fiesta, Red

$105 Off

#83514011899DR

Wilwood 140-11899-DR DP6 12.19 Inch Front Brake Kit, 2011 Fiesta, Red

Name: Wilwood 140-11899-DR DP6 12.19 Inch Front Brake Kit, 2011 Fiesta, Red
Brand: Wilwood
SKU: 83514011899DR
Price: 1273.96 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Red

Drilled

$1,273.96

/each

Factory Shipped

$1,378.59

Save $104.63

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-11899-DR
Position	Front
Wheel Bolt Pattern (in.)	4x4.25 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11899-DR Details

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19" diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

2011 Ford Fiesta All

Charts

Installation Instructions (PDF)

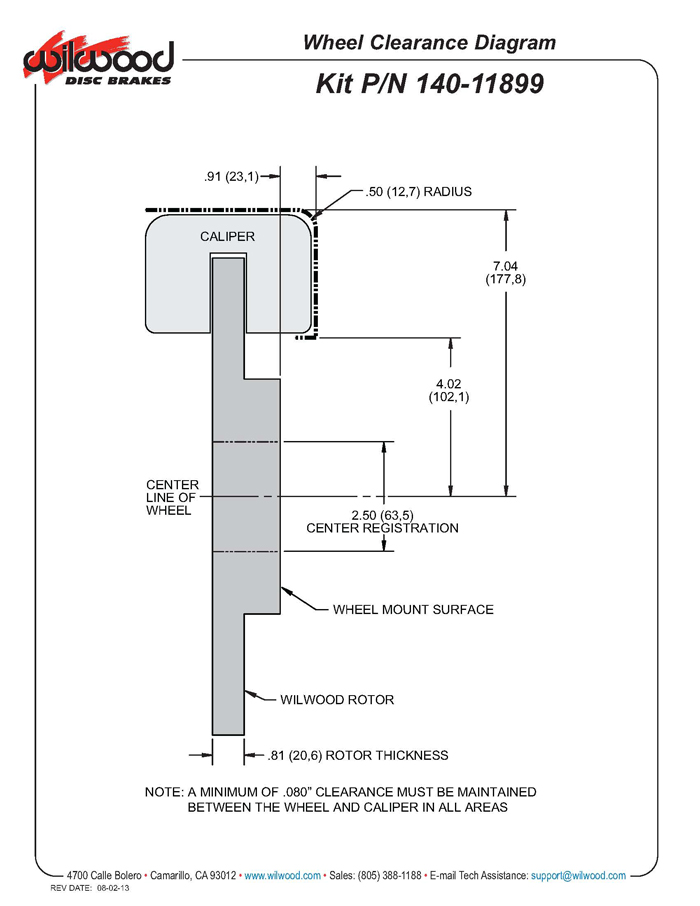

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011899DR)

Wilwood 140-11899-DR Specifications

KEY SPECS
MFG. Part #	140-11899-DR
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	4x4.25 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	4 on 4.25"
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545014310
Rotor Thickness	0.81"
Stud Diameter	0.52"
Mount Type	Lug
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Drag Hat- Shallow Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.60"
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	4 x 4.25
