Add to Cart
$789.99
$789.98

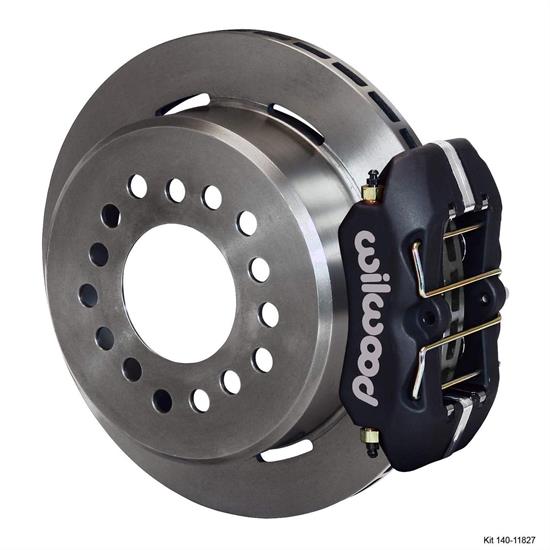

Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette

Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette

Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, 11 Inch Rotor Diameter, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
X
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Wilwood 140-11827 FDLI LP Rear Brake Kit, 1958-70 Impala/57-62 Corvette
Zoomed In Image
We estimate this item will ship on or before September 29th.
Part # 83514011827
$789.98
$789.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-11827
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Offset:
2.46"
Mount Type:
Lug
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
5.10 sq. in.
Pad Volume:
1.71 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
Forged Dynapro Low Profile
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545014143

Info

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

1957 Chevrolet Corvette All
1958 Chevrolet Corvette All
1958 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1959 Chevrolet Biscayne All
1959 Chevrolet Brookwood All
1959 Chevrolet Corvette All
1959 Chevrolet El Camino All
1959 Chevrolet Impala All
1959 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1960 Chevrolet Biscayne All
1960 Chevrolet Brookwood All
1960 Chevrolet Corvette All
1960 Chevrolet El Camino All
1960 Chevrolet Impala All
1960 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1961 Chevrolet Biscayne All
1961 Chevrolet Brookwood All
1961 Chevrolet Corvette All
1961 Chevrolet Impala All
1961 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1962 Chevrolet Biscayne All
1962 Chevrolet Corvette All
1962 Chevrolet Impala All
1962 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1963 Chevrolet Biscayne All
1963 Chevrolet Impala All
1963 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1964 Chevrolet Biscayne All
1964 Chevrolet Impala All
1964 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1965 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1966 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1967 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1968 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1969 Chevrolet Impala Vehicles using CPP 2 Drop Spindle
1970 Chevrolet Impala Vehicles using CPP 2 Drop Spindle

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
