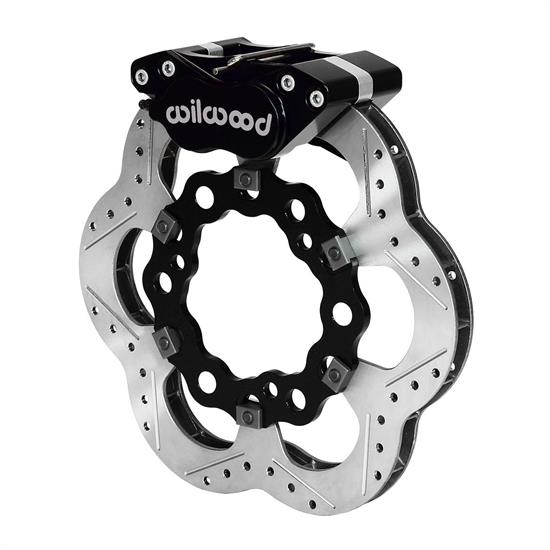

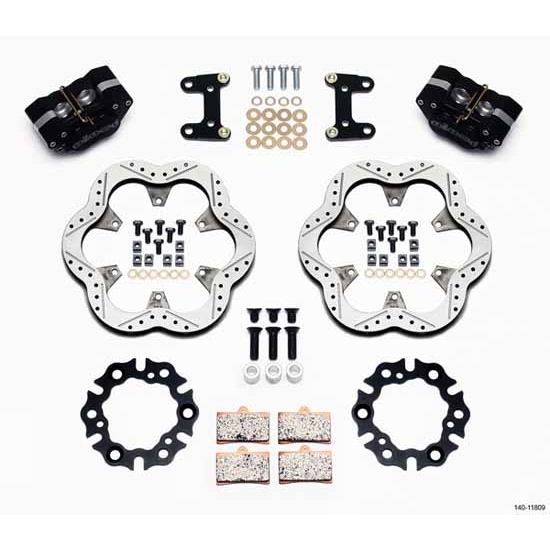

Wilwood 140-11809 Midget Pavement Front Brake Kit, Top Mount, 10.5 Inch

$112 Off

#83514011809

Wilwood 140-11809 Midget Pavement Front Brake Kit, Top Mount, 10.5 Inch

Rotor is made from specially treated Super Alloy lightweight steel
Calipers offer the most positive and fade-free performance available for sprint racing
The four small pistons provide balanced distribution of the pad load for improved response and longer pad wear

$1,713.15

/each

Factory Shipped

$1,824.65

Save $111.50

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 10.50 Inch Rotor Diameter, Anodized

Rotor is made from specially treated Super Alloy lightweight steel
Calipers offer the most positive and fade-free performance available for sprint racing
The four small pistons provide balanced distribution of the pad load for improved response and longer pad wear
Wilwood's Super Alloy material controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles
Machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs

See more details

Key Specs

MFG. Part #	140-11809
Position	Front
Rotor Diameter	10.50 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11809 Details

The GP320 System features Wilwood's competition proven dynamic rotor mount system, specially treated Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP320 billet caliper for the most positive and fade-free performance available for sprint racing.Component Features: GP 320 Billet Aluminum 4 Piston Calipers with Four small pistons provide balanced distribution of the pad load for improved response and longer pad wear. Super Alloy Rotors: Unlike ceramic coatings that can flake away from the base metal during high heat cycling, Wilwood's Super Alloy material controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles without the need for recoating. Dynamic mounting with Wilwood's t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotors stay flatter and run truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 6211-CM Brake Pads A rigid caliper mounting bracket with premium grade fasteners and shim washers are included for secure, deflection free mounting.

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011809)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011809)

Wilwood 140-11809 Specifications

KEY SPECS
MFG. Part #	140-11809
Brand	Wilwood
Position	Front
Rotor Diameter	10.50 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Anodized
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Scalloped
Hardware Included	Yes
Rotor Style	Drilled
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	10.50 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Gray
Bolt Pattern	3 on 5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Anodized

GENERAL
GTIN Code	889545014037
Notes	Race Only. Not for Street use.
Rotor Thickness	0.78"
Mount Type	Lug
Total Piston Area	2.46 sq. in.
Piston Type	Stainless
Pad Area	3.65 sq. in.
Pad Volume	1.03 cu. in.
Brake Pad Compound	Composite Metallic
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Super Alloy
Vane Count	24 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Gray
Caliper Material Type	Billet Aluminium
