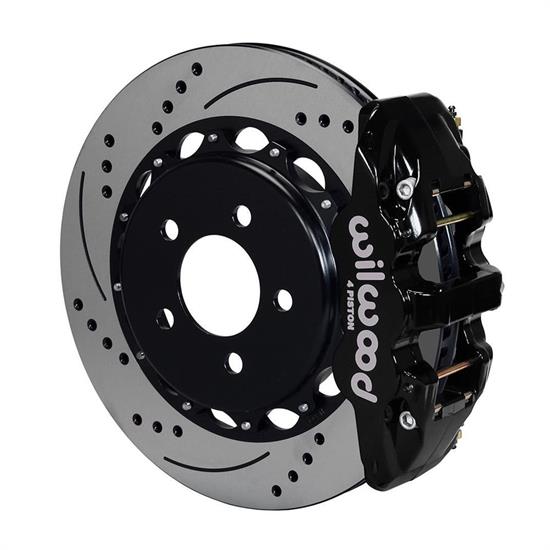

Wilwood 140-11765-D AERO4 14.25 Inch Rear Disc Brake Kit, 05-Up Mopar

$213 Off

#83514011765D

Wilwood 140-11765-D AERO4 14.25 Inch Rear Disc Brake Kit, 05-Up Mopar

Name: Wilwood 140-11765-D AERO4 14.25 Inch Rear Disc Brake Kit, 05-Up Mopar
Brand: Wilwood
SKU: 83514011765D
Price: 2596.9 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

Drilled / Red Undrilled / Red

$2,596.90

/each

Factory Shipped

$2,810.18

Save $213.28

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 14.25 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11765-D
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	14.25 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11765-D Details

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Application

2005 Chrysler 300 All RWD
except SRT-8
2005 Chrysler 300C All RWD
except SRT-8
2005 Dodge Magnum All RWD
except SRT-8
2006 Chrysler 300 All RWD
2006 Chrysler 300C RWD 5.7 Liter
except SRT-8
2006 Dodge Charger RWD 2.7 & 3.5 Liter
2006 Dodge Charger RWD 5.7 Liter
2006 Dodge Magnum RWD 2.7 & 3.5 Liter
2006 Dodge Magnum RWD 5.7 Liter
2007 Chrysler 300 All RWD
2007 Chrysler 300C RWD 5.7 Liter
except SRT-8
2007 Dodge Charger Police Package
2007 Dodge Charger RWD 2.7 & 3.5 Liter
2007 Dodge Charger RWD 5.7 Liter
2007 Dodge Magnum RWD 2.7 & 3.5 Liter
2007 Dodge Magnum RWD 5.7 Liter
2008 Chrysler 300 All RWD
2008 Chrysler 300C RWD 5.7 Liter
except SRT-8
2008 Dodge Charger Police Package
2008 Dodge Charger RWD 2.7 & 3.5 Liter
2008 Dodge Charger RWD 5.7 Liter
2008 Dodge Magnum RWD 2.7 & 3.5 Liter
2008 Dodge Magnum RWD 5.7 Liter
2009 Chrysler 300 All RWD
2009 Chrysler 300C RWD 5.7 Liter
except SRT-8
2009 Dodge Challenger 3.5 Liter
2009 Dodge Challenger 5.7 Liter
2009 Dodge Charger Police Package
2009 Dodge Charger RWD 2.7 & 3.5 Liter
2009 Dodge Charger RWD 5.7 Liter
2010 Chrysler 300 2.7 / 3.5 Liter w/ Single Piston Caliper
2010 Chrysler 300 3.5 / 5.7 Liter w/ Dual Piston Caliper
2010 Chrysler 300C RWD 5.7 Liter
except SRT-8
2010 Dodge Challenger 3.5 Liter
2010 Dodge Challenger 5.7 Liter
2010 Dodge Charger Police Package
2010 Dodge Charger RWD 2.7 & 3.5 Liter
2010 Dodge Charger RWD 5.7 Liter & 3.5 Liter w/ Dual Piston Caliper
2011 Chrysler 300 All RWD
2011 Chrysler 300C All RWD
2011 Dodge Challenger 3.6 Liter
2011 Dodge Challenger 5.7 Liter
2011 Dodge Charger Police Package
2011 Dodge Charger RWD 3.6 Liter
2011 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper
2012 Chrysler 300 RWD 3.6 Liter
2012 Chrysler 300 RWD 5.7 Liter
2012 Chrysler 300C All RWD
2012 Dodge Challenger 3.6 Liter
2012 Dodge Challenger 5.7 Liter
2012 Dodge Charger Police Package
2012 Dodge Charger RWD 3.6 Liter w/ Single Piston Calipers
2012 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper
2013 Dodge Charger Police Package
2013 Dodge Charger RWD 3.6 Liter w/ Single Piston Calipers
2013 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011765D)

Wilwood 140-11765-D Specifications

KEY SPECS
MFG. Part #	140-11765-D
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	14.25 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Color	Black
Bolt Pattern	5 on 4.5" \| 4.75" \| 5"

GENERAL
GTIN Code	889545013979
Rotor Thickness	1.1"
Offset	0"
Axle Flange Offset	0.00"
Mount Type	Radial
Total Piston Area	1.98 sq. in.
Piston Type	Stainless
Pad Area	11.00 sq. in.
Pad Volume	5.20 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	72 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Parking Brake Hat- Standard
Hat Finish	Black E-Coat
Hat Material Type	Iron
Hat Offset Dimension	1.34"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.53
Hat Bolt Circle 2	5 x 4.75
Hat Bolt Circle 3	5 x 5.00

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2005-2012 Chrysler 300

2009-2013 Dodge Challenger

2006-2013 Dodge Charger

2005-2008 Dodge Magnum
