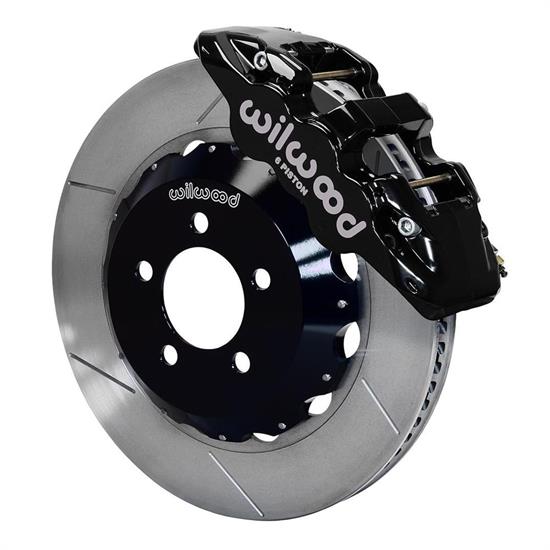

Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar

Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar

Front Position, 5 on 115mm Bolt Pattern, 14.25 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
X
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Wilwood 140-11764 AERO6 14.25 Inch Front Disc Brake Kit, 2005-Up Mopar
Zoomed In Image
We estimate this item will ship on or before March 8th.
Part # 83514011764
Save 10%
$1,819.99
$2,038.39
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
5 on 115mm
Rotor Diameter:
14.25 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-11764
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.63"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
5.40 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.2 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
W6A
Rotor Finish:
Natural
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.53
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.20"
GTIN Code:
889545013924
Front Rotor Included:
Yes
Front Rotor Diameter:
14.25 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Black
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it's the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV's, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25" rotors provide maximum cooling for sustained high heat durability.

Wheel Clearance Diagram

Application

2005 Chrysler 300 All RWD, except SRT-8
2005 Chrysler 300C C All RWD, except SRT-8
2005 Dodge Magnum All RWD, except SRT-8
2006 Chrysler 300 All RWD
2006 Chrysler 300C C RWD 5.7 Liter, except SRT-8
2006 Dodge Charger RWD 2.7 & 3.5 Liter
2006 Dodge Charger RWD 5.7 Liter
2006 Dodge Magnum RWD 2.7 & 3.5 Liter
2006 Dodge Magnum RWD 5.7 Liter
2007 Chrysler 300 All RWD
2007 Chrysler 300C C RWD 5.7 Liter, except SRT-8
2007 Dodge Charger Police Package
2007 Dodge Charger RWD 2.7 & 3.5 Liter
2007 Dodge Charger RWD 5.7 Liter
2007 Dodge Magnum RWD 2.7 & 3.5 Liter
2007 Dodge Magnum RWD 5.7 Liter
2008 Chrysler 300 All RWD
2008 Chrysler 300C C RWD 5.7 Liter, except SRT-8
2008 Dodge Charger Police Package
2008 Dodge Charger RWD 2.7 & 3.5 Liter
2008 Dodge Charger RWD 5.7 Liter
2008 Dodge Magnum RWD 2.7 & 3.5 Liter
2008 Dodge Magnum RWD 5.7 Liter
2009 Chrysler 300 All RWD
2009 Chrysler 300C C RWD 5.7 Liter, except SRT-8
2009 Dodge Challenger 3.5 Liter
2009 Dodge Challenger 5.7 Liter
2009 Dodge Charger Police Package
2009 Dodge Charger RWD 2.7 & 3.5 Liter
2009 Dodge Charger RWD 5.7 Liter
2010 Chrysler 300 2.7 / 3.5 Liter w/ Single Piston Caliper
2010 Chrysler 300 3.5 / 5.7 Liter w/ Dual Piston Caliper
2010 Chrysler 300C C RWD 5.7 Liter, except SRT-8
2010 Dodge Challenger 3.5 Liter
2010 Dodge Challenger 5.7 Liter
2010 Dodge Charger Police Package
2010 Dodge Charger RWD 2.7 & 3.5 Liter
2010 Dodge Charger RWD 5.7 Liter & 3.5 Liter w/ Dual Piston Caliper
2011 Chrysler 300 All RWD
2011 Chrysler 300C C All RWD
2011 Dodge Challenger 3.6 Liter
2011 Dodge Challenger 5.7 Liter
2011 Dodge Charger Police Package
2011 Dodge Charger RWD 3.6 Liter
2011 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper
2012 Chrysler 300 RWD 3.6 Liter
2012 Chrysler 300 RWD 5.7 Liter
2012 Chrysler 300C C All RWD
2012 Dodge Challenger 3.6 Liter
2012 Dodge Challenger 5.7 Liter
2012 Dodge Charger Police Package
2012 Dodge Charger RWD 3.6 Liter w/ Single Piston Calipers
2012 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper
2013 Dodge Charger Police Package
2013 Dodge Charger RWD 3.6 Liter w/ Single Piston Calipers
2013 Dodge Charger RWD 5.7 Liter & 3.6 Liter w/ Dual Piston Caliper

Charts

Installation Instructions (PDF)
