Add to Cart
$1,814.39
$1,619.99

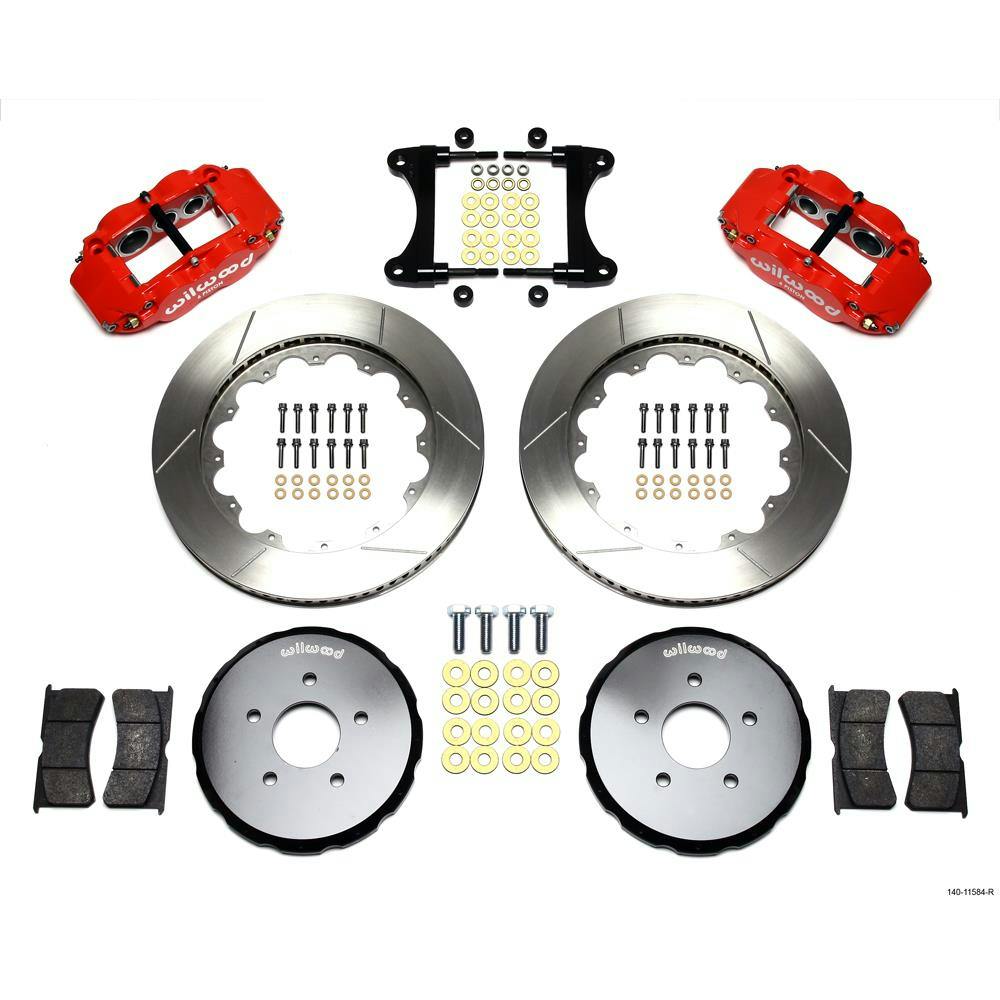

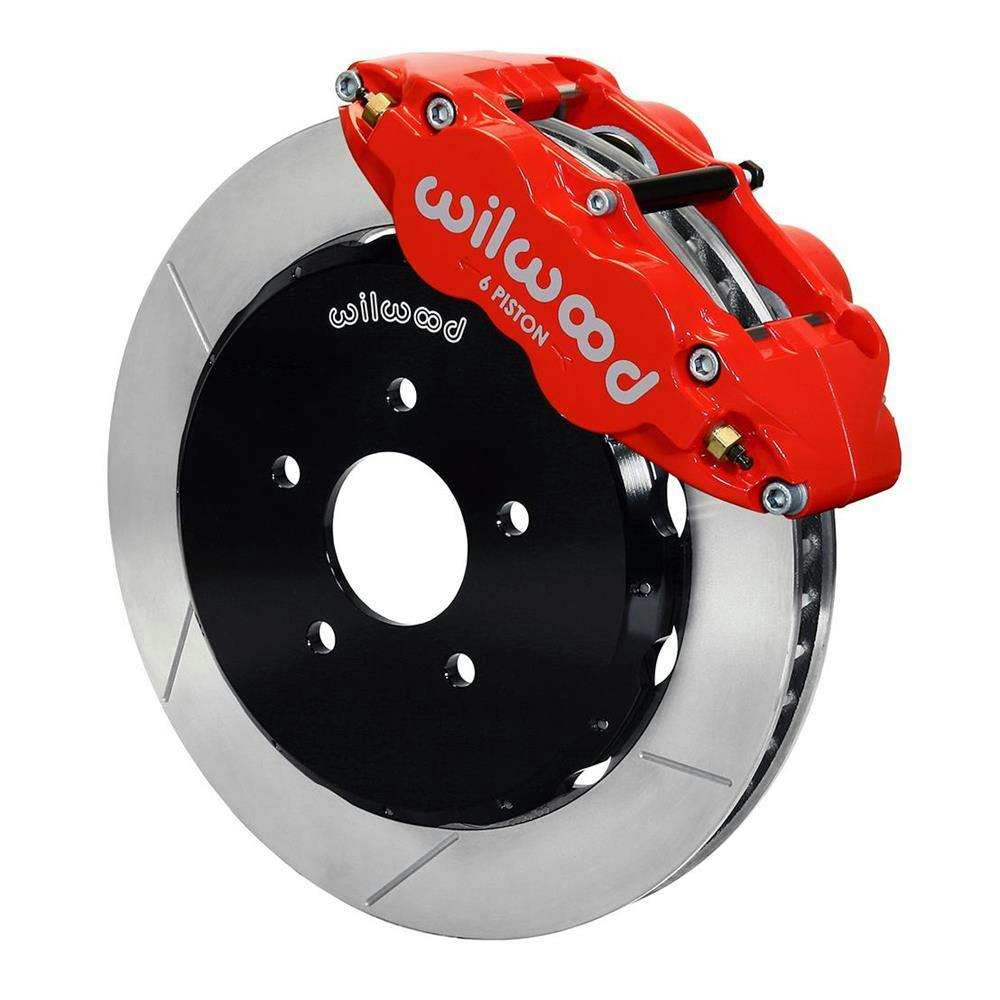

Wilwood 140-11584-R FNSL6R Front Disc Brake Kit, 07-Up Nissan/Infiniti
Wilwood 140-11584-R FNSL6R Front Disc Brake Kit, 07-Up Nissan/Infiniti
Front Position, 5 on 4.5" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type, Red
Factory Shipped
Ships FREE
Select Vehicle
Wilwood 140-11584-R FNSL6R Front Disc Brake Kit, 07-Up Nissan/Infiniti
X
We estimate this item will ship on or before October 1st.
Part # 83514011584R
$1,619.99
$1,814.39
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Details
Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-11584-R
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
8.20 sq. in.
Pad Volume:
3.8 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
Forged Narrow Superlite 6R
Rotor Finish:
Natural
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.54"
GTIN Code:
889545013825
Info
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Application
2007 Infiniti G35 G35 4 Door RWD2008 Infiniti G35 G35 4 Door RWD
2008 Infiniti G37 Brembo Brakes
2008 Infiniti G37 Except Brembo Brakes
2009 Infiniti G37 2 Door, Except Brembo Brakes
2009 Infiniti G37 4 Door, Except Brembo Brakes
2009 Infiniti G37 Brembo Brakes
2009 Nissan 370Z w/ Sport Package
2009 Nissan 370Z w/o Sport Package
2010 Infiniti G37 2 Door, Except Brembo Brakes
2010 Infiniti G37 4 Door, Except Brembo Brakes
2010 Infiniti G37 All
2010 Infiniti G37 Brembo Brakes
2010 Nissan 370Z w/ Sport Package
2010 Nissan 370Z w/o Sport Package
2011 Infiniti G37 2 Door, Except Brembo Brakes
2011 Infiniti G37 4 Door, Except Brembo Brakes
2011 Infiniti G37 Brembo Brakes
2011 Nissan 370Z w/ Sport Package
2011 Nissan 370Z w/o Sport Package
2012 Infiniti G37 2 Door, Except Brembo Brakes
2012 Infiniti G37 4 Door, Except Brembo Brakes
2012 Infiniti G37 Brembo Brakes
2012 Nissan 370Z w/ Sport Package
2012 Nissan 370Z w/o Sport Package
2013 Nissan 370Z w/ Sport Package
2013 Nissan 370Z w/o Sport Package
Some parts are not legal for use in California or other states with similar laws/regulations
