Wilwood 140-11548-D 12.88 Front Brake Kit Magnum Force Drop Spindle

$193 Off

#83514011548D

Wilwood 140-11548-D 12.88 Front Brake Kit Magnum Force Drop Spindle

12.88" rotor is designed to work with 17"-up wheels
Dual 5 on 5"/4.75" bolt pattern
Six piston calipers are powdercoated black for added corrosion protection

$2,354.40

/each

Factory Shipped

$2,547.76

Save $193.36

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.88 Inch Rotor Diameter, Black

12.88" rotor is designed to work with 17"-up wheels
Dual 5 on 5"/4.75" bolt pattern
Six piston calipers are powdercoated black for added corrosion protection
Drilled and slotted rotors provide excellent heat dissipation
Custom engineered for traditional non-ABS spindles

See more details

Key Specs

MFG. Part #	140-11548-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	12.88 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11548-D Details

FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Charts

Installation Instructions (PDF)

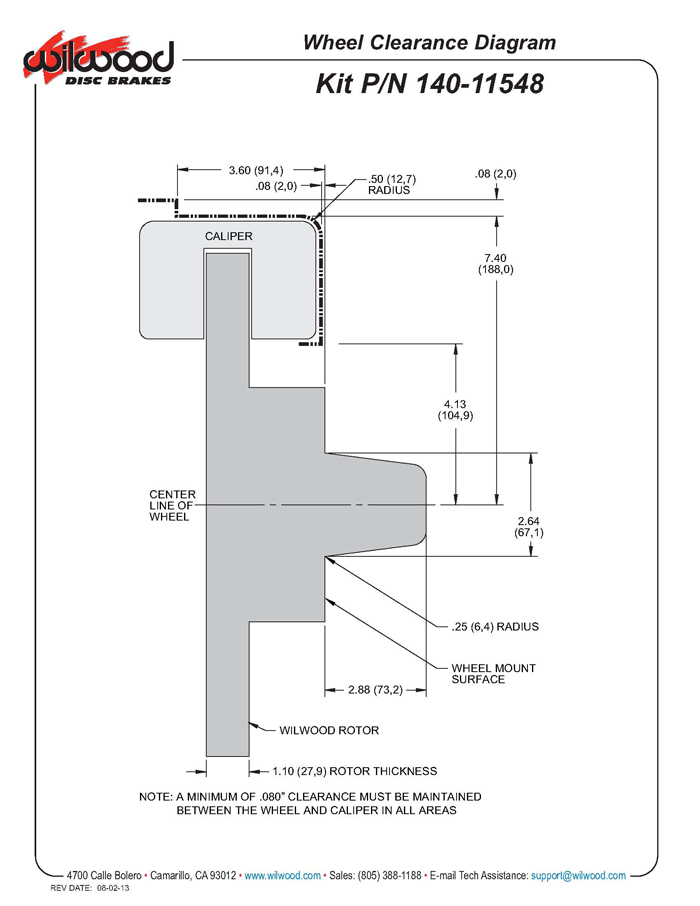

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011548D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-11548-D Specifications

KEY SPECS
MFG. Part #	140-11548-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	17 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Drop Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.88 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.75" \| 5"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545013719
Rotor Thickness	1.1"
Stud Diameter	0.52"
Mount Type	Radial
OE Hub Offset	0.25"
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	48 Curved Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.75"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50
Hat Bolt Circle 2	5 x 4.75
Stud Diameter 2	0.52"

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1975-1980 Chrysler Cordoba

1973-1974 Dodge Challenger

1973-1978 Dodge Charger

1973-1976 Dodge Coronet

1973-1976 Dodge Dart

1978-1979 Dodge Magnum

1973-1974 Plymouth Barracuda

1973-1974 Plymouth Cuda

1973-1976 Plymouth Duster

1975-1978 Plymouth Fury

1973-1975 Plymouth Roadrunner

1973-1974 Plymouth Satellite

1973-1976 Plymouth Scamp

1973-1976 Plymouth Valiant
