Wilwood 140-11547-DR FDLI 12.19 Brake Kit, Magnum Force Drop Spindle

$105 Off

#83514011547DR

Wilwood 140-11547-DR FDLI 12.19 Brake Kit, Magnum Force Drop Spindle

Name: Wilwood 140-11547-DR FDLI 12.19 Brake Kit, Magnum Force Drop Spindle
Brand: Wilwood
SKU: 83514011547DR
Price: 1281.44 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Red

Drilled

$1,281.44

/each

Factory Shipped

$1,386.67

Save $105.23

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-11547-DR
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11547-DR Details

FDLI Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Charts

Installation Instructions (PDF)

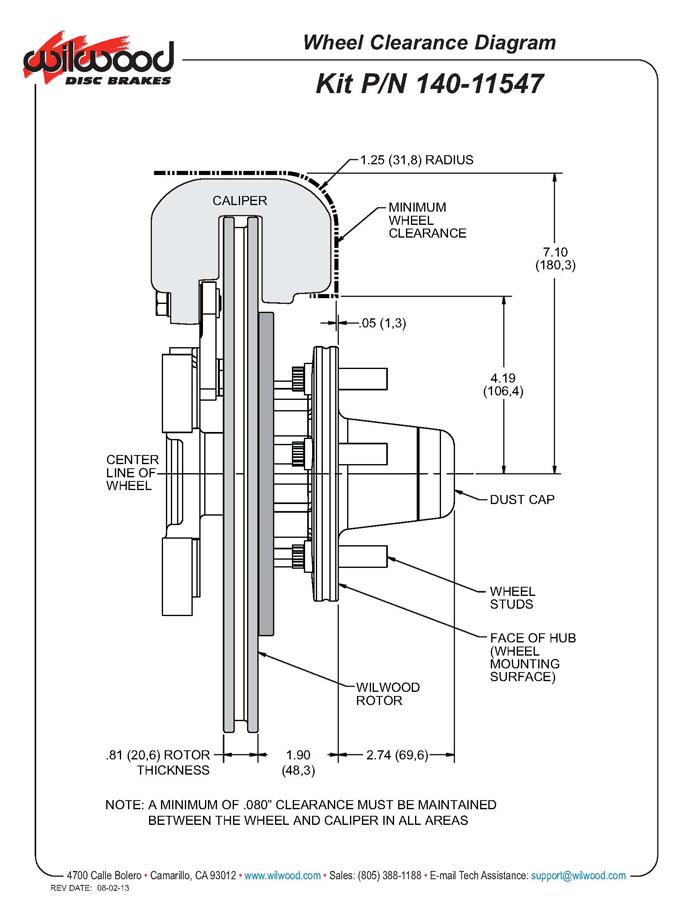

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011547DR)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-11547-DR Specifications

KEY SPECS
MFG. Part #	140-11547-DR
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Drop Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Red
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated
Bolt Pattern	5 on 4" \| 4.5"

GENERAL
GTIN Code	889545013672
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1975-1980 Chrysler Cordoba

1973-1974 Dodge Challenger

1973-1978 Dodge Charger

1973-1976 Dodge Coronet

1973-1976 Dodge Dart

1978-1979 Dodge Magnum

1973-1974 Plymouth Barracuda

1973-1974 Plymouth Cuda

1973-1976 Plymouth Duster

1975-1978 Plymouth Fury

1973-1975 Plymouth Roadrunner

1973-1974 Plymouth Satellite

1973-1976 Plymouth Scamp

1973-1976 Plymouth Valiant
