Wilwood 140-11491-D FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy

$104 Off

#83514011491D

Wilwood 140-11491-D FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy

Name: Wilwood 140-11491-D FDLI Pro Series Front Disc Brake Kit, 1955-57 Chevy
Brand: Wilwood
SKU: 83514011491D
Price: 1267.99 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

UndrilledDrilled / Red Undrilled / Red

$1,267.99

/each

Factory Shipped

$1,372.13

Save $104.14

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11491-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11491-D Details

FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular 55-57 Chevrolet 210 / 150 /Bel Air Passenger cars. Based on the venerable forged billet Dynalite caliper and 11.00" x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15" wheels. This kit will also work with aftermarket 14" disc brake steel wheels available from other vendors. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

Application

1955 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1955 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1956 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1956 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1957 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1957 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle

Charts

Installation Instructions (PDF)

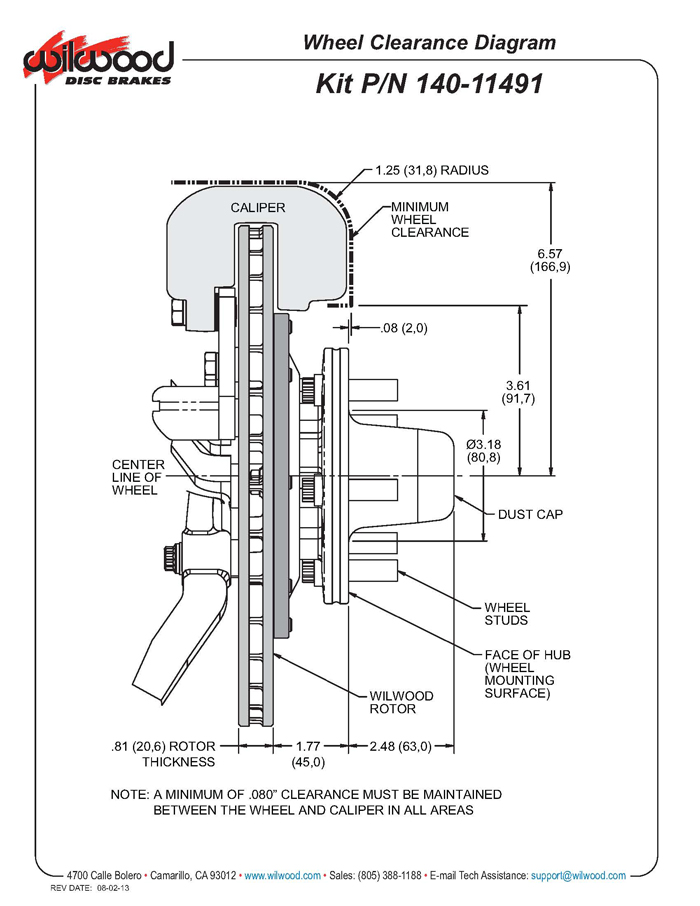

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011491D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-11491-D Specifications

KEY SPECS
MFG. Part #	140-11491-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 4.75" \| 5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545013610
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Front Suspension Type	IFS
Mount Type	Lug
OE Hub Offset	0.3"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Two-Ten Series
