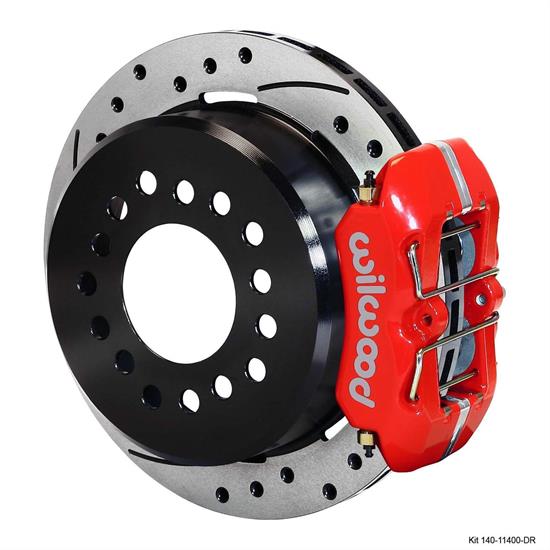

Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off

Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off

GM 8.875" 12-Bolt Car, Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
X
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Wilwood 140-11400-DR FDLI LP Rear Brake Kit, Chevy 12 Bolt 2.81 Off
Zoomed In Image
We estimate this item will ship on or before September 26th.
Part # 83514011400DR
Save 8%
$864.99
$940.79
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-11400-DR
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Offset:
2.81"
Mount Type:
Lug
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
5.10 sq. in.
Pad Volume:
1.71 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynapro Low Profile
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545013320

Info

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
