Wilwood 140-11397 FDLI LP Rear Disc Brake Kit, 1958-64 Olds/Pontiac

-7%

#83514011397

Wilwood 140-11397 FDLI LP Rear Disc Brake Kit, 1958-64 Olds/Pontiac

Name: Wilwood 140-11397 FDLI LP Rear Disc Brake Kit, 1958-64 Olds/Pontiac
Brand: Wilwood
SKU: 83514011397
Price: 1114.44 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Drilled Drilled / Red

$1,114.44

/each

Factory Shipped

$1,205.96

Save $91.52

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11397
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11397 Details

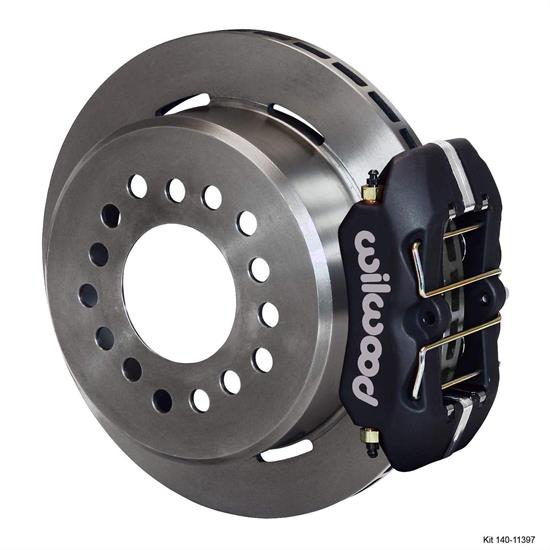

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011397)

Wilwood 140-11397 Specifications

KEY SPECS
MFG. Part #	140-11397
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Color	Black
Bolt Pattern	5 on 4.5" \| 4.75"

GENERAL
GTIN Code	889545013184
Rotor Thickness	0.81"
Offset	2.81"
Axle Flange Offset	2.81"
Mount Type	Lug
Total Piston Area	1.98 sq. in.
Piston Type	Stainless
Pad Area	5.1 sq. in.
Pad Volume	1.71 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Plain
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
