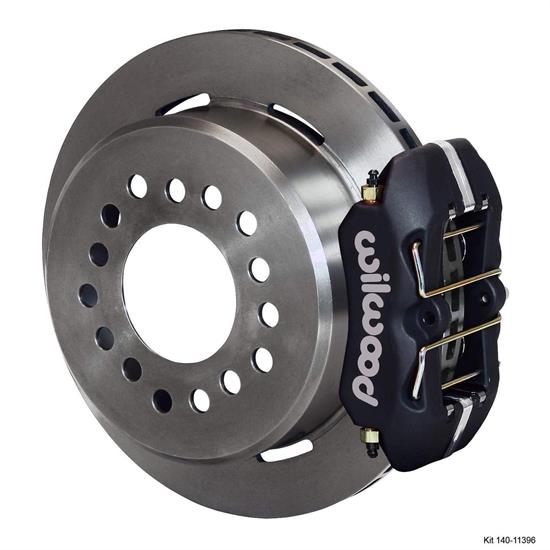

Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug

Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug

Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, 11 Inch Rotor Diameter, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
X
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Wilwood 140-11396 FDLI LP Rear Brake Kit, Ford 8.8 w/2.50 Off -5 Lug
Zoomed In Image
We estimate this item will ship on or before September 29th.
Part # 83514011396
$739.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-11396
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Offset:
2.5"
Mount Type:
Lug
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
5.10 sq. in.
Pad Volume:
1.71 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Forged Dynapro Low Profile
Rotor Finish:
Plain
Rotor Material Type:
Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545013146

Info

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

Ford Mustang 1983 3.8 Liter w/o Handling Package
Ford Mustang 1979 4 Cyl & 6 Cyl
except Turbo
Ford Mustang 1979 4 Cyl Turbo
Ford Mustang 1982-1983 4 Cyl Turbo Only
Ford Mustang 1987-1992 4 Cylinder
2.3 Liter
Ford Mustang 1993 4 Cylinder
2.3 Liter
Disc Rear
Ford Mustang 1993 4 Cylinder
2.3 Liter
Drum Rear
Ford Mustang 1984-1986 4 Lug Wheels
3.8 Liter w/o Handling Package
Ford Mustang 1984-1986 4 Lug Wheels
except 3.8 Liter
Ford Mustang 1979 8 Cylinder
Ford Mustang 1980 All
Ford Mustang 1981 All
thru 10/21/80
Ford Mustang 1981 All
10/22/80 thru 11/13/80
Ford Mustang 1982 All
except 4 Cyl Turbo
Ford Mustang 1981 All
from 11/14/80
Ford Mustang 1983 Early
except 4 Cyl Turbo
Ford Mustang 1983 Late
except 4 Cyl Turbo or 3.8 liter
Ford Mustang 1984-1986 SVO w/ 5 Lug Wheels
Disc Brake Rear
Ford Mustang 1987-1993 V-8 Spindle Only
5 lug
Ford Mustang 1993 V-8 Spindle Only
5 lug
Disc Brake Rear
Ford Mustang 1982 w/ Optional 10 Rear Brake
Ford Mustang 1983 w/ Optional 10 Rear Brake
except 4 Cyl Turbo
Ford Mustang II 1974-1978 All
Ford Pinto 1974-1980 All
Ford Pinto 1973 Disc Brake Front Spindle
Ford Pinto 1971-1972 Disc Brake Spindle
Ford Pinto 1971-1973 Drum Brake Front Spindle
Ford Thunderbird 1987-1988 Turbo Coupe
5 lug
Mercury Bobcat 1975-1980 All

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
