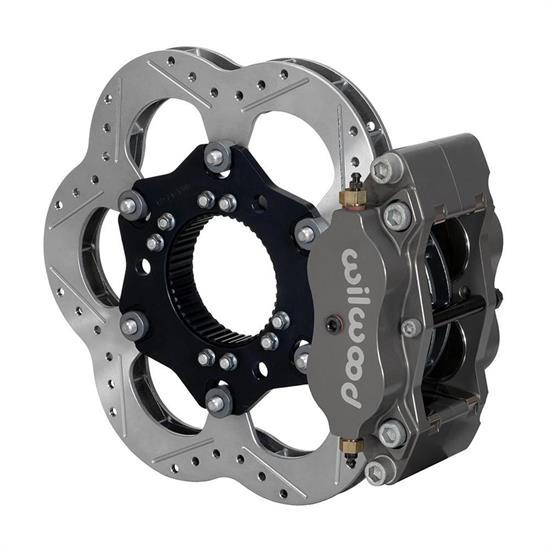

Wilwood 140-11206 BNDLR Sprint Rear Inboard Disc Brake Kit

-7%

#83514011206

Wilwood 140-11206 BNDLR Sprint Rear Inboard Disc Brake Kit

Name: Wilwood 140-11206 BNDLR Sprint Rear Inboard Disc Brake Kit
Brand: Wilwood
SKU: 83514011206
Price: 872.74 USD
Availability: InStock
Rating: 4.3 (4 reviews)

4 Reviews

1 Question

Rotor has a 10.5" diameter and comes with a 4 piston caliper
These lightweight rotors offer high durability, long wear, and superior heat control properties
Features a fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles

$872.74

/each

In Stock

$944.41

Save $71.67

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 10.50 Inch Rotor Diameter, Anodized

Rotor has a 10.5" diameter and comes with a 4 piston caliper
These lightweight rotors offer high durability, long wear, and superior heat control properties
Features a fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles
Kit includes axle clamp with dual mount rotor adapter and T-nuts, radial mount bracket assembly, and mounting hardware
The nickel plated caliper with Composition Metallic pads produces superior stopping power and consistent fade-free response

See more details

Key Specs

MFG. Part #	140-11206
Position	Rear
Wheel Bolt Pattern (in.)	Splined
Rotor Diameter	10.50 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11206 Details

These Billet Narrow Dynalite Radial Sprint Inboard kits feature a fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles.

Lightweight rotors with high durability, long wear, and superior heat control properties
Radial mount Dynalight nickel plated caliper with either Composition Metallic or BP-40 pads, produce superior stopping power and consistent fade-free response
Axle offset: 0
Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.

Caliper:
- Type: Narrow Dynalite Radial Mount
- Finish: Nickel Plated
- Piston Count: 4
- Piston Type: Stainless
- Pad Compound: CM-Composite Metallic
Rotor:
- Type: Drilled Steel
- Style: Drilled
- Finish: Plain
- Material: Stainless
- Diameter: 10.50"
- Width: .780"
- Vane Count: 24 V
- Design Type: Alloy Scalloped
Hub:
- Type: Dynamic
- Material: Aluminum
- Finish: Black Anodize
- Mount Style: Adapter-Dynamic
- Bolt Circle: Splined

Charts

83514011206 Wilwood Brake Kit Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011206)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011206)

CA Prop 65

Wilwood 140-11206 Specifications

KEY SPECS
MFG. Part #	140-11206
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	Splined
Rotor Diameter	10.50 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Anodized
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Scalloped
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	Yes
Color	Gray
Bolt Pattern	Blank

GENERAL
Sold in Quantity	Kit
GTIN Code	889545012378
Notes	Race Only. Not for Street use.
Rotor Thickness	0.78"
Offset	0"
Axle Flange Offset	0.00"
Mount Type	Radial
Brake Lines Included	No
Caliper Color	Gray

Ratings & Reviews

4.3

4 Reviews

Overall Assessment

Customers praise the product for its impressive stopping power, particularly in sprint car use, highlighting it as an outstanding feature. However, some reviews mention the bracket that holds the caliper to the rear needs frequent replacement due to cracking. Despite this, the product's performance is differentiated favorably against competitors, especially in terms of usability and quality.

Write A Review

4.2

4 reviews

Filter by Ratings

Sort Reviews

works good, fits well

5.0

5 months ago

speed racer

New England

Verified

This brake system gives me more space between the fuel tank and back of the seat. I like to purchase it as akit and not have to resurch each part.

Would Recommend

yes, I would buy this again

4.0

2 years ago

speed racer

New England

Verified

better description for the novias sprint car racer would be helpful

Would Recommend

Maybe

3.0

9 years ago

James

El dorado ca

Verified

Love the stopping power but hate the bracket that holds the caliper to rear end. Needs to be replaced about every 4 night because it cracks.

Would Not Recommend

Yes

5.0

9 years ago

Kevin kinzer

Huron SD

Verified

On my sprint car and they work great

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

Can you please provide the exact part number for the replacement of the brake pads that come with this kit?

by Justin

• 9 years ago

1 answer

View Answer

1 of 1 questions shown
