Wilwood 140-11071-R FDLI Pro Series Front Brake Kit, 65-70 Ford/Mercury

-7%

Wilwood 140-11071-R FDLI Pro Series Front Brake Kit, 65-70 Ford/Mercury
Wilwood

|

#83514011071R

Wilwood 140-11071-R FDLI Pro Series Front Brake Kit, 65-70 Ford/Mercury

Rotor / Caliper Type:

Undrilled / Red

UndrilledDrilledDrilled / Red

$1,109.24

/each

Factory Shipped

$1,200.33

Save $91.09


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-11071-R
    PositionFront
    Wheel Bolt Pattern (in.)5x4.5 in.
    Wheel Bolt Pattern (mm)5x114.3 mm
    Rotor Diameter11 Inch
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-11071-R Details

    FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

    Application

    1965 Ford Falcon Disc Brake V-8 Spindle Only
    1965 Ford Falcon Drum Brake V-8 Spindle Only
    1965 Ford Mustang Disc Brake V-8 Spindle Only
    1965 Ford Mustang Drum Brake V-8 Spindle Only
    1965 Ford Ranchero Disc Brake V-8 Spindle Only
    1965 Ford Ranchero Drum Brake V-8 Spindle Only
    1965 Mercury Comet Disc Brake V-8 Spindle Only
    1965 Mercury Comet Drum Brake V-8 Spindle Only
    1966 Ford Fairlane Disc Brake Spindle
    1966 Ford Fairlane Drum Brake Front Spindle
    1966 Ford Falcon Disc Brake V-8 Spindle Only
    1966 Ford Falcon Drum Brake V-8 Spindle Only
    1966 Ford Mustang Disc Brake V-8 Spindle Only
    1966 Ford Mustang Drum Brake V-8 Spindle Only
    1966 Ford Ranchero Disc Brake Spindle
    1966 Ford Ranchero Drum Brake Front Spindle
    1966 Mercury Comet Disc Brake V-8 Spindle Only
    1966 Mercury Comet Drum Brake V-8 Spindle Only
    1967 Ford Fairlane Disc Brake Spindle
    1967 Ford Fairlane Drum Brake Front Spindle
    1967 Ford Falcon Disc Brake Spindle
    1967 Ford Falcon Drum Brake Front Spindle
    1967 Ford Mustang Disc Brake Spindle
    1967 Ford Mustang Drum Brake Front Spindle
    1967 Ford Ranchero Disc Brake Spindle
    1967 Ford Ranchero Drum Brake Front Spindle
    1967 Mercury Comet Disc Brake Spindle
    1967 Mercury Comet Drum Brake Front Spindle
    1967 Mercury Cougar Disc Brake Spindle
    1967 Mercury Cougar Drum Brake Front Spindle
    1967 Mercury Cyclone Disc Brake Spindle
    1967 Mercury Cyclone Drum Brake Front Spindle
    1968 Ford Fairlane Disc Brake Spindle
    1968 Ford Fairlane Drum Brake Front Spindle
    1968 Ford Falcon Disc Brake Spindle
    1968 Ford Falcon Drum Brake Front Spindle
    1968 Ford Mustang Disc Brake Spindle
    1968 Ford Mustang Drum Brake Front Spindle
    1968 Ford Ranchero Disc Brake Spindle
    1968 Ford Ranchero Drum Brake Front Spindle
    1968 Ford Torino Disc Brake Spindle
    1968 Ford Torino Drum Brake Front Spindle
    1968 Mercury Comet Disc Brake Spindle
    1968 Mercury Comet Drum Brake Front Spindle
    1968 Mercury Cougar Disc Brake Spindle
    1968 Mercury Cougar Drum Brake Front Spindle
    1968 Mercury Cyclone Disc Brake Spindle
    1968 Mercury Cyclone Drum Brake Front Spindle
    1968 Mercury Montego Disc Brake Spindle
    1968 Mercury Montego Drum Brake Front Spindle
    1969 Ford Fairlane Disc Brake Spindle
    1969 Ford Fairlane Drum Brake Front Spindle
    1969 Ford Falcon Disc Brake Spindle
    1969 Ford Falcon Drum Brake Front Spindle
    1969 Ford Mustang Disc Brake Spindle
    1969 Ford Mustang Drum Brake Front Spindle
    1969 Ford Ranchero Disc Brake Spindle
    1969 Ford Ranchero Drum Brake Front Spindle
    1969 Ford Torino Disc Brake Spindle
    1969 Ford Torino Drum Brake Front Spindle
    1969 Mercury Comet Disc Brake Spindle
    1969 Mercury Comet Drum Brake Front Spindle
    1969 Mercury Cougar Disc Brake Spindle
    1969 Mercury Cougar Drum Brake Front Spindle
    1969 Mercury Cyclone Disc Brake Spindle
    1969 Mercury Cyclone Drum Brake Front Spindle
    1969 Mercury Montego Disc Brake Spindle
    1969 Mercury Montego Drum Brake Front Spindle
    1970 Ford Falcon Drum Brake Front thru 8/24/69
    1970 Ford Maverick Drum Brake Front thru 8/24/69
    1970 Ford Mustang Disc Brake GT350 & 500 only

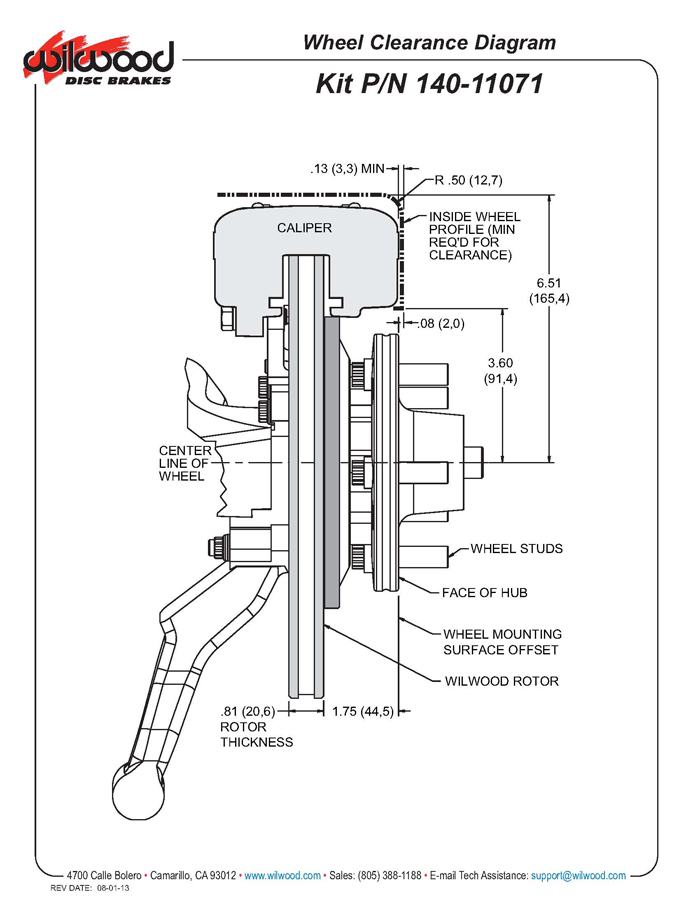

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-11071-R Specifications

    KEY SPECS
    MFG. Part #140-11071-R
    BrandWilwood
    PositionFront
    Wheel Bolt Pattern (in.)5x4.5 in.
    Wheel Bolt Pattern (mm)5x114.3 mm
    Rotor Diameter11 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter14 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StylePlain Face
    Spindle TypeFactory Disc & Drum Spindles
    Front Rotor IncludedYes
    Front Rotor Diameter11 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    ColorRed
    Bolt Pattern5 on 4.5" | 4.75"
    Front Caliper Piston Quantity4
    Front Caliper FinishPowder Coated
    GENERAL
    GTIN Code889545012194
    Rotor Thickness0.81"
    Stud Diameter1/2-20
    Mount TypeLug
    OE Hub Offset0.09"
    Total Piston Area4.80 sq. in.
    Piston TypeStainless
    Pad Area6.36 sq. in.
    Pad Volume2.1 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeLug
    Rotor FinishNatural
    Rotor Material TypeIron
    Vane Count30 Straight Vane
    BeddedNo
    BalancedNo
    Brake Lines IncludedNo
    Caliper ColorRed
    Caliper Material TypeForged Aluminum
    Stud Diameter 21/2-20
