Wilwood 140-11021-DR FDLI Pro Series Front Disc Brake Kit, 1970-72 Mopar

$102 Off

Wilwood 140-11021-DR FDLI Pro Series Front Disc Brake Kit, 1970-72 Mopar
Wilwood

|

#83514011021DR

Wilwood 140-11021-DR FDLI Pro Series Front Disc Brake Kit, 1970-72 Mopar

Rotor / Caliper Type:

Drilled / Red

UndrilledDrilledUndrilled / Red

$1,236.60

/each

Factory Shipped

$1,338.16

Save $101.56


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-11021-DR
    PositionFront
    Rotor Diameter11 Inch
    Rotor TypeVented
    Caliper PistonsFour
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-11021-DR Details

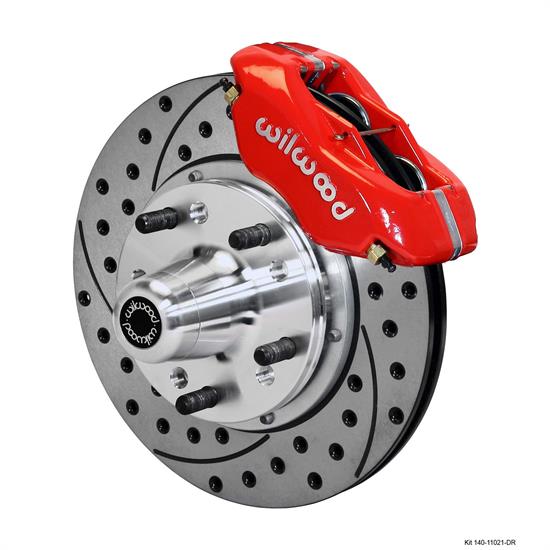

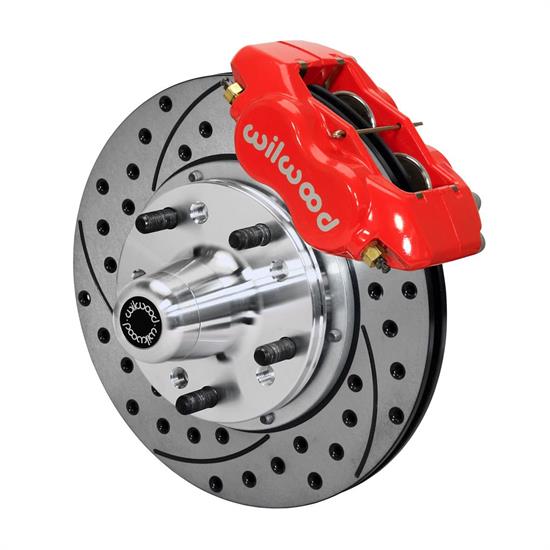

    Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for Chrysler, Dodge & Plymouth 1970-1972 B & E-Body vehicles, offer disc brake upgrade solutions for OEM Disc spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit narrows the track with by only -.06" from original disc brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below.

    Application

    1970 Dodge Challenger Disc Brake Spindle
    1970 Dodge Charger Disc Brake Spindle
    1970 Dodge Coronet Disc Brake Spindle
    1970 Dodge Coronet Super Bee Disc Brake Spindle
    1970 Plymouth Barracuda Disc Brake Spindle
    1970 Plymouth Belvedere Disc Brake Spindle
    1970 Plymouth GTX Disc Brake Spindle
    1970 Plymouth Roadrunner Disc Brake Spindle
    1970 Plymouth Satellite Disc Brake Spindle
    1971 Dodge Challenger Disc Brake Spindle
    1971 Dodge Charger Disc Brake Spindle
    1971 Dodge Coronet Disc Brake Spindle
    1971 Dodge Coronet Super Bee Disc Brake Spindle
    1971 Plymouth Barracuda Disc Brake Spindle
    1971 Plymouth GTX Disc Brake Spindle
    1971 Plymouth Roadrunner Disc Brake Spindle
    1971 Plymouth Satellite Disc Brake Spindle
    1972 Dodge Challenger Disc Brake Spindle
    1972 Dodge Charger Disc Brake Spindle
    1972 Dodge Coronet Disc Brake Spindle
    1972 Plymouth Barracuda Disc Brake Spindle
    1972 Plymouth Roadrunner Disc Brake Spindle
    1972 Plymouth Satellite Disc Brake Spindle

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-11021-DR Specifications

    KEY SPECS
    MFG. Part #140-11021-DR
    BrandWilwood
    PositionFront
    Rotor Diameter11 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter14 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Spindle TypeFactory Disc Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter11 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedNo
    Rear Rotor IncludedNo
    ColorRed
    Front Caliper Piston Quantity4
    Front Caliper FinishPowder Coated
    Bolt Pattern5 on 4" | 4.5"
    GENERAL
    GTIN Code889545012064
    Rotor Thickness0.81"
    Stud Diameter1/2-20
    Mount TypeLug
    OE Hub Offset-0.06"
    Total Piston Area4.80 sq. in.
    Piston TypeStainless
    Pad Area6.36 sq. in.
    Pad Volume2.1 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeLug
    Rotor FinishBlack E-Coat
    Rotor Material TypeIron
    Vane Count30 Straight Vane
    BeddedNo
    BalancedNo
    Brake Lines IncludedNo
    Caliper ColorRed
    Caliper Material TypeForged Aluminum
    Stud Diameter 21/2-20
