Wilwood 140-11018-R FDLI Pro Series Front Disc Brake Kit, 84-93 Mustang

-7%

#83514011018R

Wilwood 140-11018-R FDLI Pro Series Front Disc Brake Kit, 84-93 Mustang

Name: Wilwood 140-11018-R FDLI Pro Series Front Disc Brake Kit, 84-93 Mustang
Brand: Wilwood
SKU: 83514011018R
Price: 1109.24 USD
Availability: InStock

Write a Review

1 Question

Rotor / Caliper Type:

Undrilled / Red

Undrilled Drilled Drilled / Red

$1,109.24

/each

Factory Shipped

$1,200.33

Save $91.09

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11018-R
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11018-R Details

FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

Application

1984 Ford Mustang SVO w/ 5 Lug Wheels, Disc Brake Rear
1985 Ford Mustang SVO w/ 5 Lug Wheels, Disc Brake Rear
1986 Ford Mustang SVO w/ 5 Lug Wheels, Disc Brake Rear
1987 Ford Mustang V-8 Spindle Only, 5 lug
1987 Ford Thunderbird Turbo Coupe, 5 lug
1988 Ford Mustang V-8 Spindle Only, 5 lug
1988 Ford Thunderbird Turbo Coupe, 5 lug
1989 Ford Mustang V-8 Spindle Only, 5 lug
1990 Ford Mustang V-8 Spindle Only, 5 lug
1991 Ford Mustang V-8 Spindle Only, 5 lug
1992 Ford Mustang V-8 Spindle Only, 5 lug
1993 Ford Mustang V-8 Spindle Only, 5 lug
1993 Ford Mustang V-8 Spindle Only, 5 lug, Disc Brake Rear

Charts

Installation Instructions (PDF)

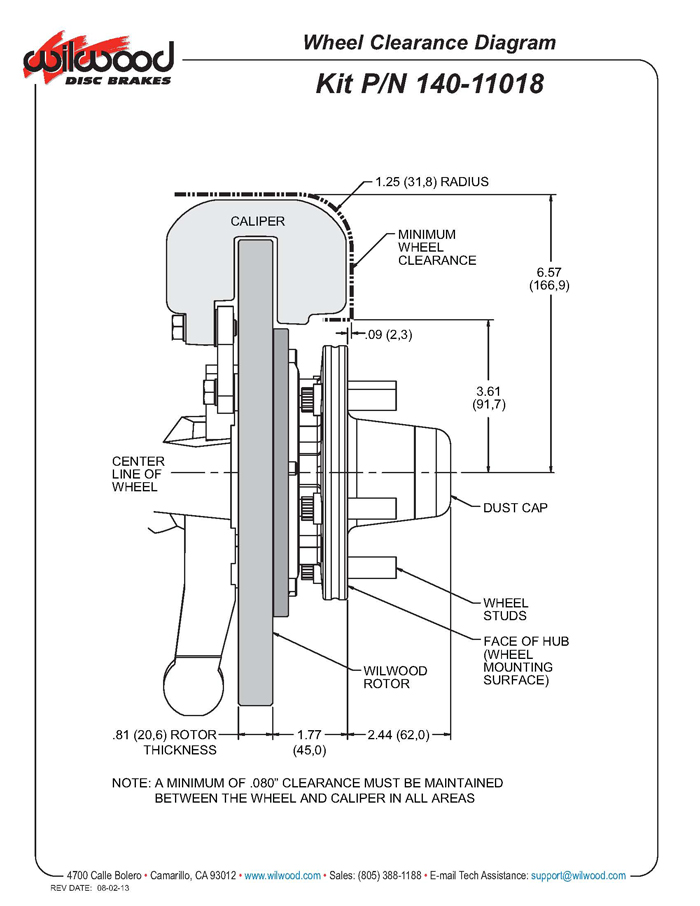

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011018R)

Wilwood 140-11018-R Specifications

KEY SPECS
MFG. Part #	140-11018-R
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545011951
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0.24"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Does this kit come for a 4 lug 1987 mustang lx

by Wild Bill

• 9 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1984-1993 Ford Mustang

1987-1988 Ford Thunderbird
