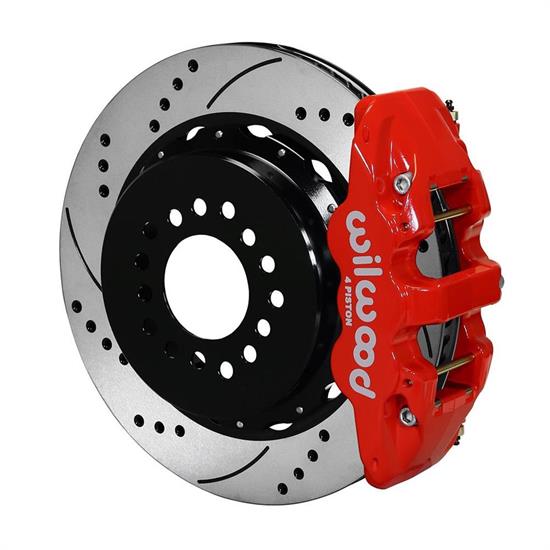

Wilwood 140-10950-DR AERO4 14 Inch Rear Disc Brake Kit, 05-Up Mustang
Wilwood 140-10950-DR AERO4 14 Inch Rear Disc Brake Kit, 05-Up Mustang
Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, 14 Inch Rotor Diameter, Red
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-10950-DR AERO4 14 Inch Rear Disc Brake Kit, 05-Up Mustang
X
We estimate this item will ship on or before October 12th.
Part # 83514010950DR
$1,844.99
$2,066.39
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-10950-DR
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.1"
Offset:
2.66"
Mount Type:
Radial
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.20 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
AERO4
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Parking Brake Hat- Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Iron
Hat Offset Dimension:
1.95"
GTIN Code:
889545011227
Front Rotor Included:
No
Rear Rotor Included:
Yes
Front Caliper Included:
No
Rear caliper Included:
Yes
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Application
2005 Ford Mustang Base Models2005 Ford Mustang GT Models
2006 Ford Mustang Base Models
2006 Ford Mustang GT Models
2007 Ford Mustang All
Except Shelby GT500
2007 Ford Mustang Shelby GT500
2008 Ford Mustang All
Except Shelby GT500 & Bullit
2008 Ford Mustang Bullit
2008 Ford Mustang Shelby GT500
2009 Ford Mustang All
Except Shelby GT500
2009 Ford Mustang Shelby GT500
2010 Ford Mustang Base Models
2010 Ford Mustang GT Models
2010 Ford Mustang Shelby GT500
2011 Ford Mustang Base Models
2011 Ford Mustang GT Models w/ Performance Brakes
2011 Ford Mustang GT Models w/o Performance Brakes
2011 Ford Mustang Shelby GT500
2012 Ford Mustang Base Models
2012 Ford Mustang Boss 302
2012 Ford Mustang GT Models w/ Performance Brakes
2012 Ford Mustang GT Models w/o Performance Brakes
2012 Ford Mustang Shelby GT500
2013 Ford Mustang Base Models
2013 Ford Mustang Boss 302
2013 Ford Mustang GT Models
