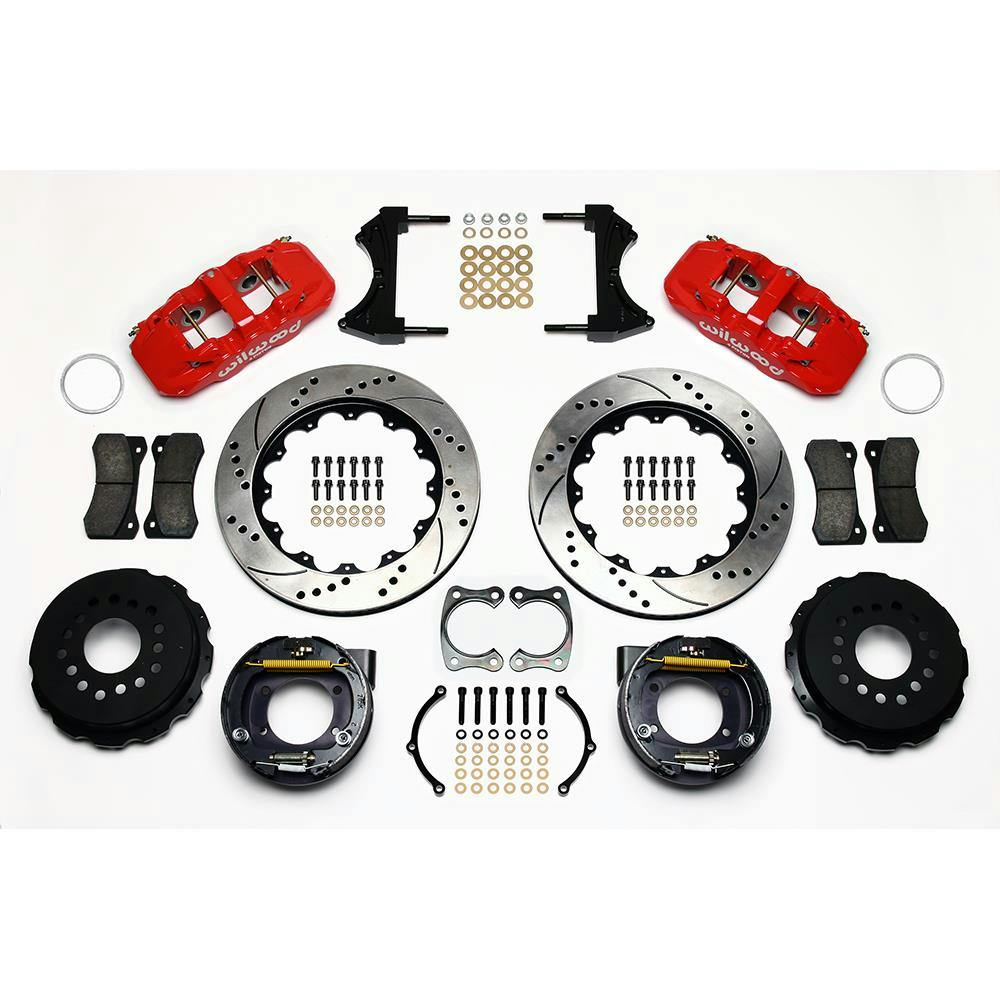

Wilwood 140-10948-DR AERO4 Rear Brake Kit, Torino Ends, 2.50 Off

$300 Off

Wilwood 140-10948-DR AERO4 Rear Brake Kit, Torino Ends, 2.50 Off
Wilwood

|

#83514010948DR

Wilwood 140-10948-DR AERO4 Rear Brake Kit, Torino Ends, 2.50 Off

  • Rotors have a 14" diameter and are designed to clear 18"-up wheels
  • High performance BP-10 compound pads provide optimized and balanced braking
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
See More

Rotor / Caliper Type:

Drilled / Red

DrilledUndrilledUndrilled / Red

$2,503.59

/each

Factory Shipped

$2,804.02

Save $300.43


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 14 Inch Rotor Diameter, Red

  • Rotors have a 14" diameter and are designed to clear 18"-up wheels
  • High performance BP-10 compound pads provide optimized and balanced braking
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Four piston calipers are powder coated red for enhanced corrosion protection
  • Each kit comes pre-drilled with the multi 5x4.5"/4.75"/5" bolt pattern
See more details

Key Specs

MFG. Part #140-10948-DR
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10948-DR Details

AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

Charts

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-10948-DR Specifications

KEY SPECS
MFG. Part #140-10948-DR
BrandWilwood
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorRed
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter18 Inch
Hardware IncludedYes
Rotor StyleDrilled & Slotted
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
Bolt Pattern5 on 4.5" | 4.75"
GENERAL
GTIN Code889545011142
Rotor Thickness1.1"
Axle Flange Offset2.50"
Mount TypeRadial
Total Piston Area1.98 sq. in.
Piston TypeStainless
Pad Area11.00 sq. in.
Pad Volume5.20 cu. in.
Brake Pad CompoundBP-10
Caliper TypeRadial
Rotor FinishBlack E-Coat
Rotor Material TypeSpec-37 Iron
Vane Count72 Curved Vane
BeddedNo
BalancedYes
Hat TypeParking Brake Hat- Standard
Hat FinishBlack E-Coat
Hat Bolt Circle 35 x 5.00
Hat Bolt Circle 25 x 4.75
Hat Bolt Circle 15 x 4.50
Hat Material TypeIron
Hat Offset Dimension1.54"
Brake Lines IncludedNo
Caliper ColorRed
Caliper Material TypeForged Aluminum
