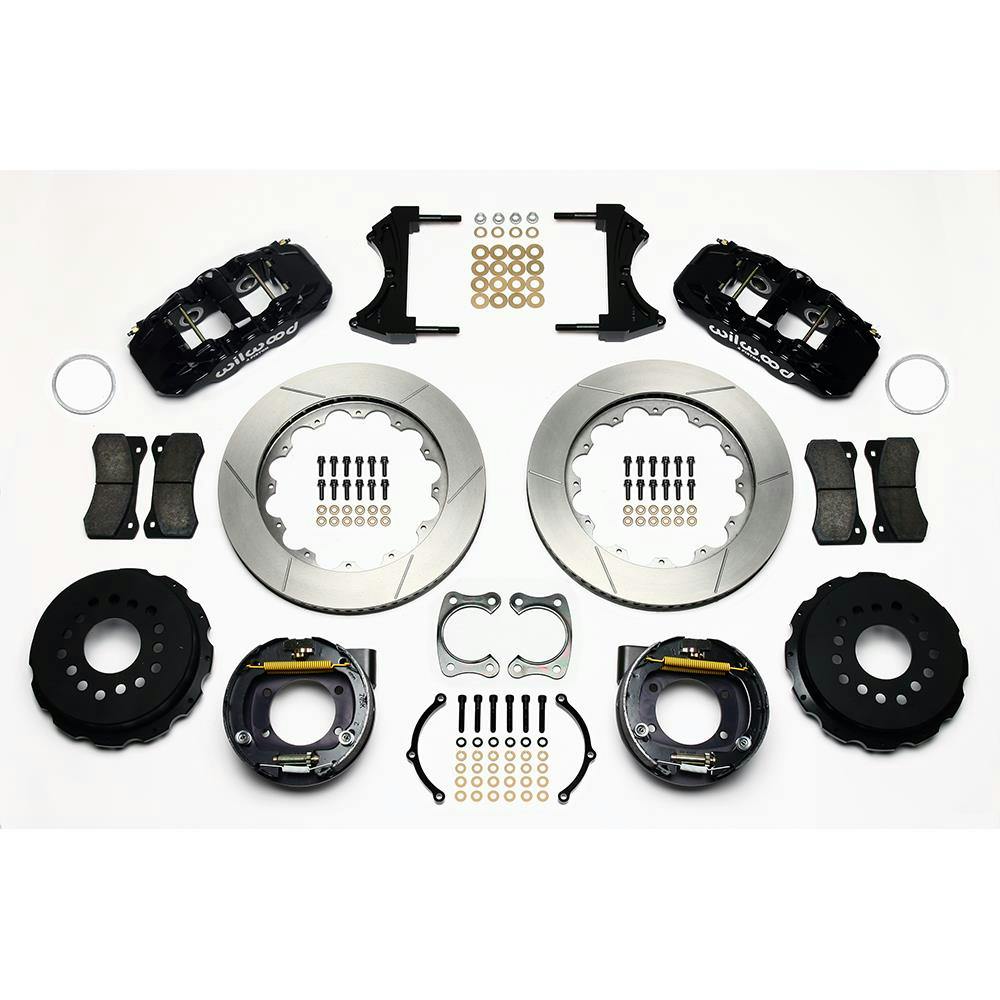

Wilwood 140-10944 AERO4 Big Brake Rear Parking Brake Kit, Black

$300 Off

Wilwood 140-10944 AERO4 Big Brake Rear Parking Brake Kit, Black
Wilwood

|

#83514010944

Wilwood 140-10944 AERO4 Big Brake Rear Parking Brake Kit, Black

  • AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles
  • High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads
  • Rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements
See More

Rotor / Caliper Type:

Undrilled

Undrilled / Red

$2,503.59

/each

Factory Shipped

$2,804.02

Save $300.43


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 14 Inch Rotor Diameter

  • AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles
  • High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads
  • Rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements
  • Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements
See more details

Key Specs

MFG. Part #140-10944
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10944 Details

  • AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles
  • High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads, and oversized 14
  • 00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements
  • Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements

Wilwood 140-10944 Specifications

KEY SPECS
MFG. Part #140-10944
BrandWilwood
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorBlack
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter18 Inch
Hardware IncludedYes
Rotor StyleSlotted
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
Bolt Pattern5 on 4.5" | 4.75"
GENERAL
Sold in QuantityKit
GTIN Code889545010961
Rotor Thickness1.1"
Axle Flange Offset2.36"
Mount TypeRadial
Total Piston Area1.98 sq. in.
Piston TypeStainless
Pad Area11.00 sq. in.
Pad Volume5.20 cu. in.
Brake Pad CompoundBP-10
Caliper TypeRadial
Rotor FinishPlain
Rotor Material TypeSpec-37 Iron
Vane Count72 Curved Vane
BeddedNo
BalancedYes
Hat TypeParking Brake Hat- Standard
Hat FinishBlack E-Coat
Hat Bolt Circle 35 x 5.00
Hat Bolt Circle 25 x 4.75
Hat Bolt Circle 15 x 4.50
Hat Material TypeIron
Hat Offset Dimension1.54"
Brake Lines IncludedNo
Caliper ColorBlack
Caliper Material TypeForged Aluminum
Parking Brake StyleInternal Drum
Rear Caliper ColorBlack
Rear Caliper MaterialForged Billet Aluminum
Rear Caliper Piston QuantityFour
Rear Rotor ConstructionVented
Rear Rotor Diameter14"
Rear Rotor StyleSlotted surface
Rear Rotor Thickness1.1"
