| MFG. Part # | 140-10943-DR |
| Position | Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 14 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCharts
Installation Instructions (PDF)

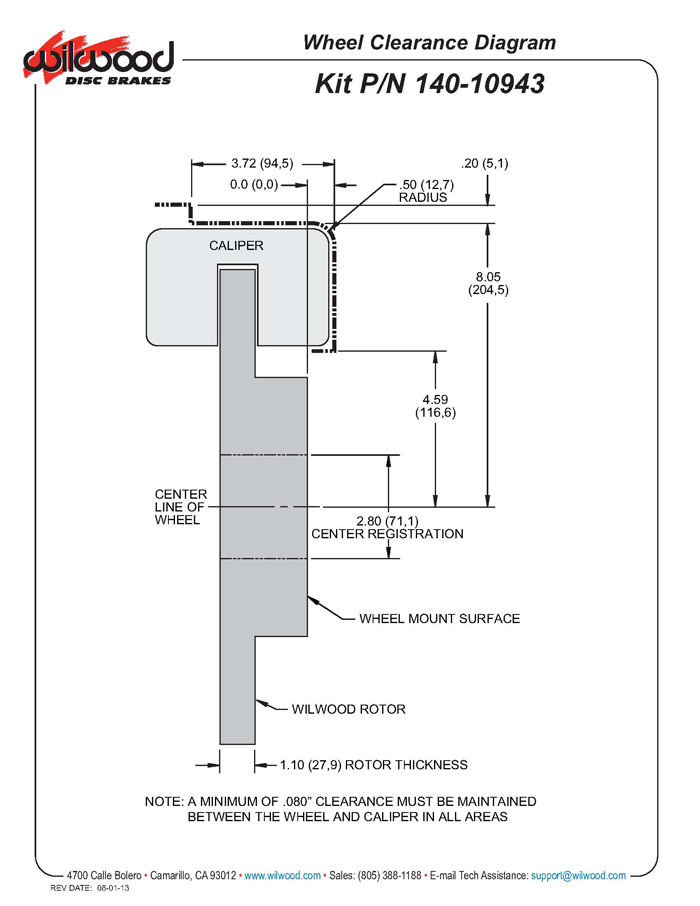

Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10943-DR |
| Brand | Wilwood |
| Position | Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | Yes |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Front Rotor Included | No |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | Yes |
| Color | Red |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| GENERAL | |
| GTIN Code | 889545010947 |
| Rotor Thickness | 1.1" |
| Stud Diameter | 0.52" |
| Offset | 2.81" |
| Axle Flange Offset | 2.81" |
| Mount Type | Radial |
| Total Piston Area | 2.46 sq. in. |
| Piston Type | Stainless |
| Pad Area | 11.00 sq. in. |
| Pad Volume | 5.2 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Parking Brake Hat- Standard |
| Hat Finish | Black E-Coat |
| Hat Material Type | Iron |
| Hat Offset Dimension | 1.95" |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 5 x 4.50 |
| Hat Bolt Circle 2 | 5 x 4.75 |
| Hat Bolt Circle 3 | 5 x 5.00 |
| Stud Diameter 2 | 0.52" |
| Stud Diameter 3 | 0.52" |
Be the first to ask a question.
1965-1970 Chevy Bel Air
1965-1970 Chevy Biscayne
1967-1972 Chevy Camaro
1966-1970 Chevy Caprice
1964-1972 Chevy Chevelle
1965-1968 Chevy Chevy II
1965-1972 Chevy El Camino
1965-1970 Chevy Impala
1964-1967 Chevy Malibu
1970-1972 Chevy Monte Carlo
1969-1972 Chevy Nova
1968-1970 Oldsmobile F85
1967-1972 Pontiac Firebird
1970-1972 Pontiac Grand Prix
1970-1972 Pontiac GTO
1970-1972 Pontiac LeMans
