$229 Off
$229 Off
|
#83514010920DR
$2,783.98
/each
Factory Shipped
$3,012.60
Save $228.62
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Front Position, 14 Inch Rotor Diameter, Powder Coated
| MFG. Part # | 140-10920-DR |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm | 5x127 mm |
| Rotor Diameter | 14 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

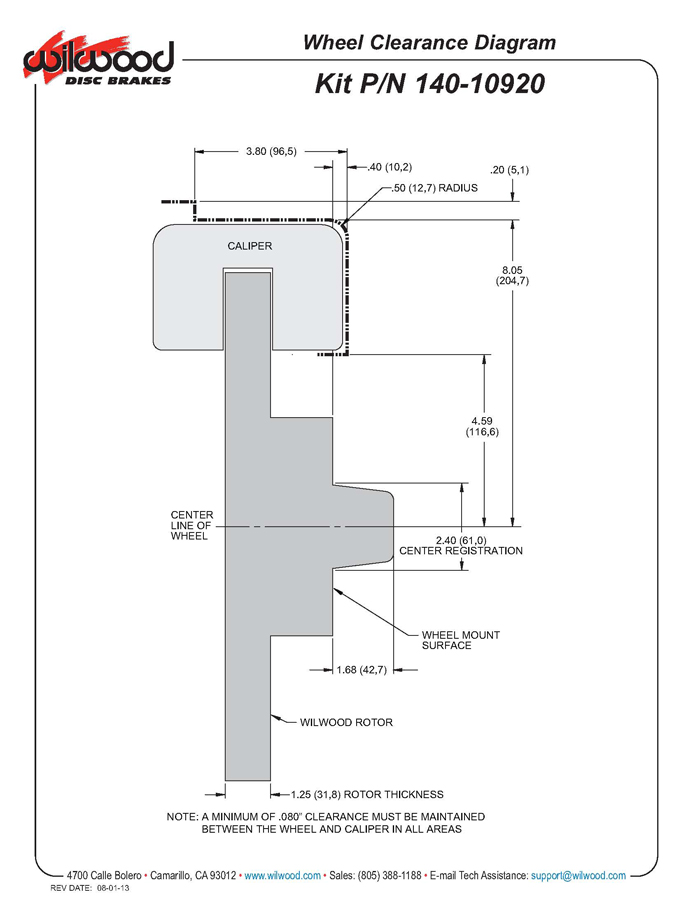

Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10920-DR |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm | 5x127 mm |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Drum, Factory Disc & Drop Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545010862 |
| Rotor Thickness | 1.25" |
| Stud Diameter | 0.52" |
| Mount Type | Radial |
| OE Hub Offset | 0.38" |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 11.00 sq. in. |
| Pad Volume | 5.2 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Flared Bell |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 1.75" |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 5 x 4.50 |
| Hat Bolt Circle 2 | 5 x 4.75 |
| Stud Diameter 2 | 0.52" |
1 Question • 1 Answer
Will this disc brake kit fit spindle part number 910-34900
by Howdy
• 7 years ago
1 answer
View Answer
1 of 1 questions shown
1973-1974 Buick Apollo
1965-1967 Buick Gran Sport
1964-1972 Buick Skylark
1964-1969 Buick Special
1964-1972 Buick Sportwagon
1967-1972 Chevy Camaro
1964-1972 Chevy Chevelle
1964-1968 Chevy Chevy II
1964-1972 Chevy El Camino
1970-1972 Chevy Monte Carlo
1969-1974 Chevy Nova
1971-1972 GMC Sprint
1967-1971 Oldsmobile 442
1964-1972 Oldsmobile Cutlass
1964-1972 Oldsmobile F85
1973-1974 Oldsmobile Omega
1964-1972 Oldsmobile Vista Cruiser
1967-1969 Pontiac Firebird
1969-1972 Pontiac Grand Prix
1964-1972 Pontiac GTO
1964-1972 Pontiac LeMans
1964-1970 Pontiac Tempest
1971-1974 Pontiac Ventura
