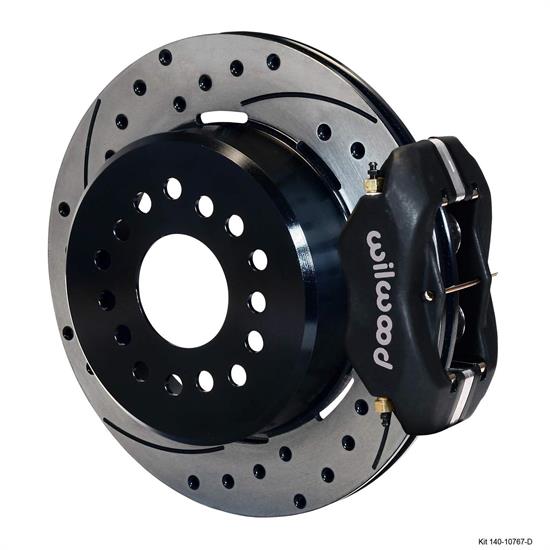

Wilwood 140-10767-D FDLI Rear Brake Kit, Mopar/Dana 2.50 Off, Snap Ring

Name: Wilwood 140-10767-D FDLI Rear Brake Kit, Mopar/Dana 2.50 Off, Snap Ring
Brand: Wilwood
SKU: 83514010767D
Price: 1088.11 USD
Availability: InStock

Write a Review

Ask a Question

$1,088.11

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before October 16th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 5 on 4.5" Bolt Pattern, Powder Coated

See more details

Key Specs

Position	Rear
Bolt Pattern	5 on 4.5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10767-D Details

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

Chrysler Cordoba 1975-1983 All
Chrysler Fifth Avenue 1983-1989 All
Chrysler Imperial 1974-1975 All
Chrysler Imperial 1981-1983 All
Chrysler Lebaron 1977-1981 All
Chrysler New Yorker 1974-1978 All
Chrysler New Yorker 1979-1982 All
Chrysler New Yorker 1983-1989 All RWD only
Chrysler Newport 1974-1978 All
Chrysler Newport 1979-1981 All
Chrysler Town & Country 1974-1978 All
Dodge 330 1963-1964 All
Dodge 440 1963-1964 All
Dodge A-Body 1965-1972 10 Inch Drum Brake Spindle
Dodge A-Body 1961-1972 9 Inch Drum Brake Spindle
Dodge A-Body 1973-1976 All
Dodge Aspen 1976-1980 All
Dodge B-Body 1962-1964 All
Dodge B-Body 1973-1979 All
Dodge B-Body 1966-1968 Disc Brake Spindle
Dodge B-Body 1970-1972 Disc Brake Spindle
Dodge B-Body 1969 Disc Brake Spindle
Early
Dodge B-Body 1969 Disc Brake Spindle
Late
Dodge B-Body 1970-1972 Drum Brake Front
Dodge B-Body 1965-1969 Drum Brake Spindle
Dodge Challenger 1973-1974 All
Dodge Challenger 1970-1972 Disc Brake Spindle
Dodge Challenger 1970-1972 Drum Brake Front
Dodge Charger 1973-1978 All
Dodge Charger 1975 All from 5/75
Dodge Charger 1975 All to 5/75
Dodge Charger 1966-1968 Disc Brake Spindle
Dodge Charger 1970-1972 Disc Brake Spindle
Dodge Charger 1969 Disc Brake Spindle
Early
Dodge Charger 1969 Disc Brake Spindle
Late
Dodge Charger 1970-1972 Drum Brake Front
Dodge Charger 1966-1969 Drum Brake Spindle
Dodge Coronet 1973-1976 All
Dodge Coronet 1966-1968 Disc Brake Spindle
Dodge Coronet 1970-1972 Disc Brake Spindle
Dodge Coronet 1969 Disc Brake Spindle
Early
Dodge Coronet 1969 Disc Brake Spindle
Late
Dodge Coronet 1970-1972 Drum Brake Front
Dodge Coronet 1965-1969 Drum Brake Spindle
Dodge Coronet Super Bee 1968 Disc Brake Spindle
Dodge Coronet Super Bee 1970-1971 Disc Brake Spindle
Dodge Coronet Super Bee 1969 Disc Brake Spindle
Early
Dodge Coronet Super Bee 1969 Disc Brake Spindle
Late
Dodge Coronet Super Bee 1970-1971 Drum Brake Front
Dodge Coronet Super Bee 1968-1969 Drum Brake Spindle
Dodge Dart 1965-1972 10 Inch Drum Brake Spindle
Dodge Dart 1963-1972 9 Inch Drum Brake Spindle
Dodge Dart 1973-1976 Disc Brake Spindle
Dodge Dart 1973-1976 Drum Brake Spindle
Dodge Dart Demon 1971-1972 10 Inch Drum Brake Spindle
Dodge Dart Demon 1971-1972 9 Inch Drum Brake Spindle
Dodge Dart Demon 1973-1976 All
Dodge Diplomat 1977-1989 All
Dodge E-Body 1973-1974 All
Dodge E-Body 1970-1972 Disc Brake Spindle
Dodge E-Body 1970-1972 Drum Brake Front
Dodge F-Body 1976-1980 All
Dodge J-Body 1980-1983 All
Dodge Lancer 1961-1962 9 Inch Drum Brake Spindle
Dodge Magnum 1978-1979 All
Dodge Mirada 1980-1983 All
Dodge Monaco 1974 All
Dodge Monaco 1978 All
Dodge Monaco 1977 All Except Royal
Dodge Monaco 1975-1976 All
Including Royal
Dodge Monaco 1977 Monaco Royal only
Dodge Polara 1962-1964 All
Dodge R/T 1976-1978 All
Dodge St. Regis 1979-1981 All
Magnum Force Spindle 9999 Magnum Force Spindle
Plymouth A-Body 1965-1972 10 Inch Drum Brake Spindle
Plymouth A-Body 1960-1972 9 Inch Drum Brake Spindle
Plymouth A-Body 1973-1976 All
Plymouth B-Body 1962-1964 All
Plymouth B-Body 1973-1979 All
Plymouth B-Body 1966-1968 Disc Brake Spindle
Plymouth B-Body 1970-1972 Disc Brake Spindle
Plymouth B-Body 1969 Disc Brake Spindle
Early
Plymouth B-Body 1969 Disc Brake Spindle
Late
Plymouth B-Body 1970-1972 Drum Brake Front
Plymouth B-Body 1965-1969 Drum Brake Spindle
Plymouth Barracuda 1965-1969 10 Inch Drum Brake Spindle
Plymouth Barracuda 1964-1969 9 Inch Drum Brake Spindle
Plymouth Barracuda 1973-1974 All
Plymouth Barracuda 1970-1972 Disc Brake Spindle
Plymouth Barracuda 1970-1972 Drum Brake Front
Plymouth Belvedere 1962-1964 All
Plymouth Belvedere 1966-1968 Disc Brake Spindle
Plymouth Belvedere 1970 Disc Brake Spindle
Plymouth Belvedere 1969 Disc Brake Spindle
Early
Plymouth Belvedere 1969 Disc Brake Spindle
Late
Plymouth Belvedere 1970 Drum Brake Front
Plymouth Belvedere 1965-1969 Drum Brake Spindle
Plymouth Caravelle 1982-1984 All
Plymouth Caravelle 1985 All RWD only
Plymouth Duster 1970-1972 10 Inch Drum Brake Spindle
Plymouth Duster 1970-1972 9 Inch Drum Brake Spindle
Plymouth Duster 1973-1976 All
Plymouth E-Body 1973-1974 All
Plymouth E-Body 1970-1972 Disc Brake Spindle
Plymouth E-Body 1970-1972 Drum Brake Front
Plymouth F-Body 1976-1980 All
Plymouth Fury 1962-1964 All
Plymouth Fury 1974 All
Plymouth Fury 1978 All
Plymouth Fury 1975-1977 Except Gran Fury
Plymouth Gran Fury 1975-1977 Gran Fury Only
Plymouth GTX 1973-1975 All
Plymouth GTX 1967-1968 Disc Brake Spindle
Plymouth GTX 1970-1972 Disc Brake Spindle
Plymouth GTX 1969 Disc Brake Spindle
Early
Plymouth GTX 1969 Disc Brake Spindle
Late
Plymouth GTX 1970-1972 Drum Brake Front
Plymouth GTX 1967-1969 Drum Brake Spindle
Plymouth J-Body 1980-1983 All
Plymouth Roadrunner 1973-1980 All
Plymouth Roadrunner 1968 Disc Brake Spindle
Plymouth Roadrunner 1970-1972 Disc Brake Spindle
Plymouth Roadrunner 1969 Disc Brake Spindle
Early
Plymouth Roadrunner 1969 Disc Brake Spindle
Late
Plymouth Roadrunner 1970-1972 Drum Brake Front
Plymouth Roadrunner 1968-1969 Drum Brake Spindle
Plymouth Satellite 1973-1974 All
Plymouth Satellite 1966-1968 Disc Brake Spindle
Plymouth Satellite 1970-1972 Disc Brake Spindle
Plymouth Satellite 1969 Disc Brake Spindle
Early
Plymouth Satellite 1969 Disc Brake Spindle
Late
Plymouth Satellite 1970-1972 Drum Brake Front
Plymouth Satellite 1965-1969 Drum Brake Spindle
Plymouth Savoy 1962-1964 All
Plymouth Scamp 1973-1976 All
Plymouth Valiant 1965-1972 10 Inch Drum Brake Spindle
Plymouth Valiant 1960-1972 9 Inch Drum Brake Spindle
Plymouth Valiant 1973-1976 Disc Brake Spindle
Plymouth Valiant 1973-1976 Drum Brake Spindle
Plymouth Volare 1976-1980 All

Charts

Installation Instructions (PDF)

Guides & Documents

Disc Brake Kits Instruction Sheet (83514010767D)

Wilwood 140-10767-D Specifications

KEY SPECS
MFG. Part #	140-10767-D
Brand	Wilwood
Position	Rear
Bolt Pattern	5 on 4.5"
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Color	Black
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	Yes

GENERAL
Rotor Thickness	0.81"
Offset	2.5"
Axle Flange Offset	2.50"
Mount Type	Lug
Total Piston Area	3.00 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.10 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
GTIN Code	889545010312
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
