$105 Off

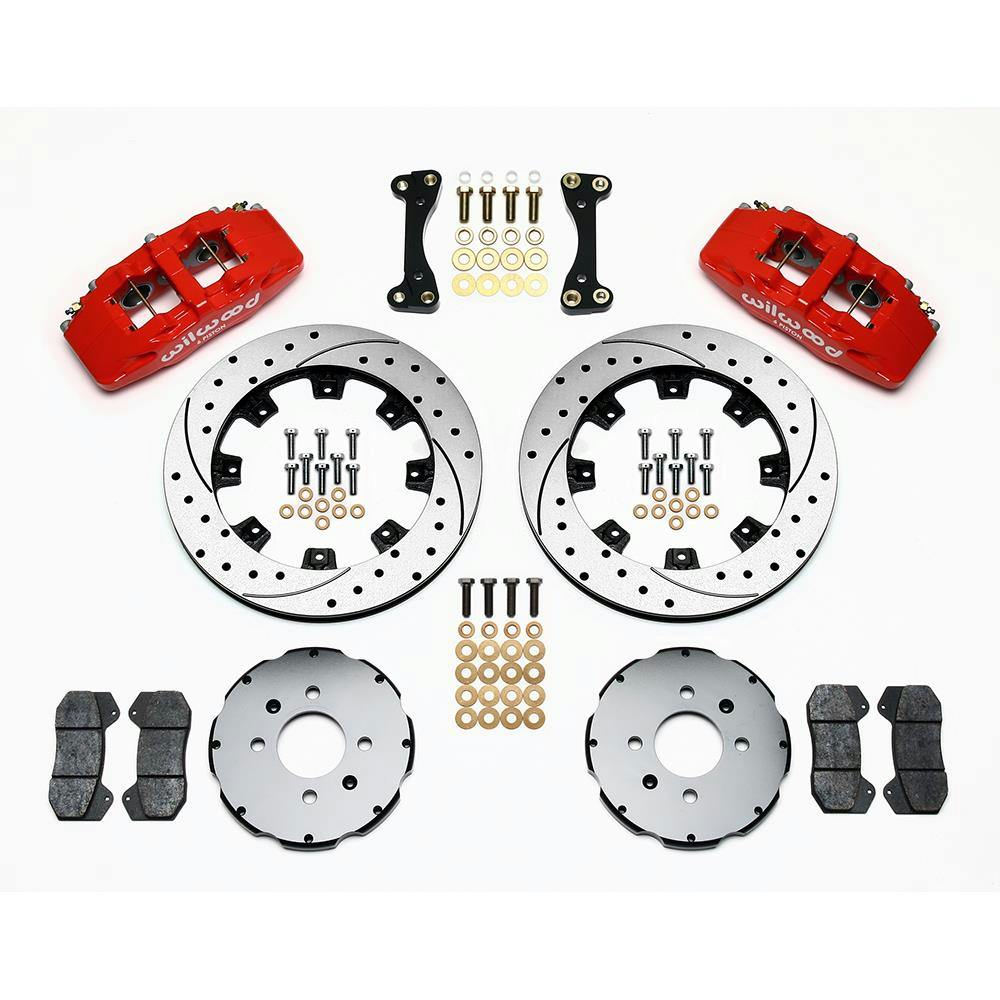

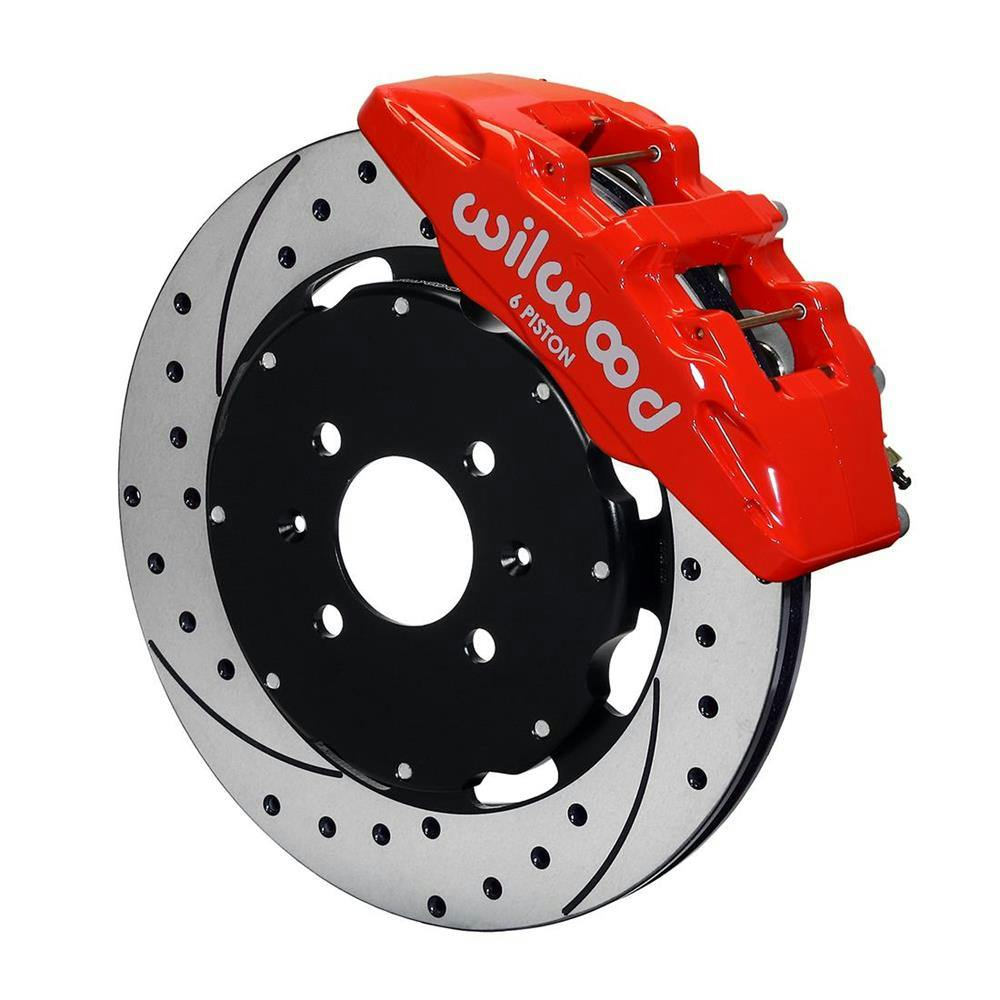

Wilwood 140-10736-DR DP6 12.19 Inch Front Disc Brake Kit, 88-00 Civic

$105 Off

#83514010736DR

Wilwood 140-10736-DR DP6 12.19 Inch Front Disc Brake Kit, 88-00 Civic

Will fit various '88-'00 Honda's
12.19 disc diameter and 15" overall diameter
4 on 3.93" bolt pattern

Rotor / Caliper Type:

Drilled / Red

$1,273.96

/each

Factory Shipped

$1,378.59

Save $104.63

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

Will fit various '88-'00 Honda's
12.19 disc diameter and 15" overall diameter
4 on 3.93" bolt pattern
Kit will work with OE master cylinder output and factory ABS functions
Six-piston calipers with stainless steel pistons

See more details

Key Specs

MFG. Part #	140-10736-DR
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10736-DR Details

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19" diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

1988 Honda Civic Sedan w/ AT
1988 Honda Civic Sedan w/ MT
1988 Honda Civic HB Base
1988 Honda CRX DX & SI
1988 Honda CRX HF
1989 Honda Civic HB DX
1989 Honda Civic Sedan DX / LX Models
1989 Honda Civic HB Base
1989 Honda Civic HB SI
1989 Honda CRX DX & SI
1989 Honda CRX HF
1990 Honda Civic HB DX
1990 Honda Civic Sedan DX / LX Models
1990 Honda Civic HB Base
1990 Honda Civic HB SI
1990 Honda CRX DX
1990 Honda CRX HF
1990 Honda CRX SI
1991 Honda Civic HB DX
1991 Honda Civic Sedan DX / LX Models
1991 Honda Civic HB Base
1991 Honda Civic HB SI
1991 Honda CRX DX
1991 Honda CRX HF
1991 Honda CRX SI
1992 Honda Civic HB Auto Excludes SI Model
1992 Honda Civic HB Manual Excludes SI Model
1992 Honda Civic Sedan DX / LX Models w/ AT
1992 Honda Civic Sedan DX / LX Models w/ MT
1992 Honda Civic HB SI
1993 Honda Civic Coupe DX w/ Auto
1993 Honda Civic Coupe DX w/ Manual
1993 Honda Civic HB Auto Excludes SI Model
1993 Honda Civic HB Manual Excludes SI Model
1993 Honda Civic Sedan DX / LX Models w/ AT
1993 Honda Civic Sedan DX / LX Models w/ MT
1993 Honda Civic HB SI
1993 Honda Civic del Sol w/ Rear Disc
1993 Honda Civic del Sol w/ Rear Drum
1994 Honda Civic Coupe DX w/ Auto
1994 Honda Civic Coupe DX w/ Manual
1994 Honda Civic HB Auto Excludes SI Model
1994 Honda Civic HB Manual Excludes SI Model
1994 Honda Civic HB SI w/ out ABS
1994 Honda Civic Sedan DX w/ MT
1994 Honda Civic Sedan DX Models w/ AT
1994 Honda Civic Sedan LX w/ AT w/ out ABS
1994 Honda Civic Sedan LX w/ MT w/ out ABS
1994 Honda Civic del Sol W/ Rear Drum
1995 Honda Civic Coupe DX w/ Auto
1995 Honda Civic Coupe DX w/ Manual
1995 Honda Civic HB Auto Excludes SI Model
1995 Honda Civic HB Manual Excludes SI Model
1995 Honda Civic HB SI w/ out ABS
1995 Honda Civic Sedan DX w/ AT
1995 Honda Civic Sedan DX w/ MT
1995 Honda Civic Sedan LX w/ AT w/ out ABS
1995 Honda Civic Sedan LX w/ MT w/ out ABS
1995 Honda Civic del Sol W/ Rear Disc S
1995 Honda Civic del Sol W/ Rear Drum
1996 Honda Civic Coupe DX / HX Models
1996 Honda Civic Sedan w/ out ABS
1996 Honda Civic Coupe EX w/out ABS
1996 Honda Civic del Sol W/ Rear Disc S
1996 Honda Civic del Sol W/ Rear Drum
1997 Honda Civic Coupe DX / HX Models
1997 Honda Civic Sedan Excludes EX
1997 Honda Civic del Sol W/ Rear Disc S
1997 Honda Civic del Sol W/ Rear Drum
1998 Honda Civic Coupe DX / HX Models
1998 Honda Civic HB
1998 Honda Civic Sedan w/ out ABS
1998 Honda Civic Sedan GX
1999 Honda Civic Coupe DX / HX Models
1999 Honda Civic HB
1999 Honda Civic Sedan
1999 Honda Civic Sedan GX
2000 Honda Civic Coupe DX / HX Models
2000 Honda Civic HB
2000 Honda Civic Sedan

Charts

Installation Instructions (PDF)

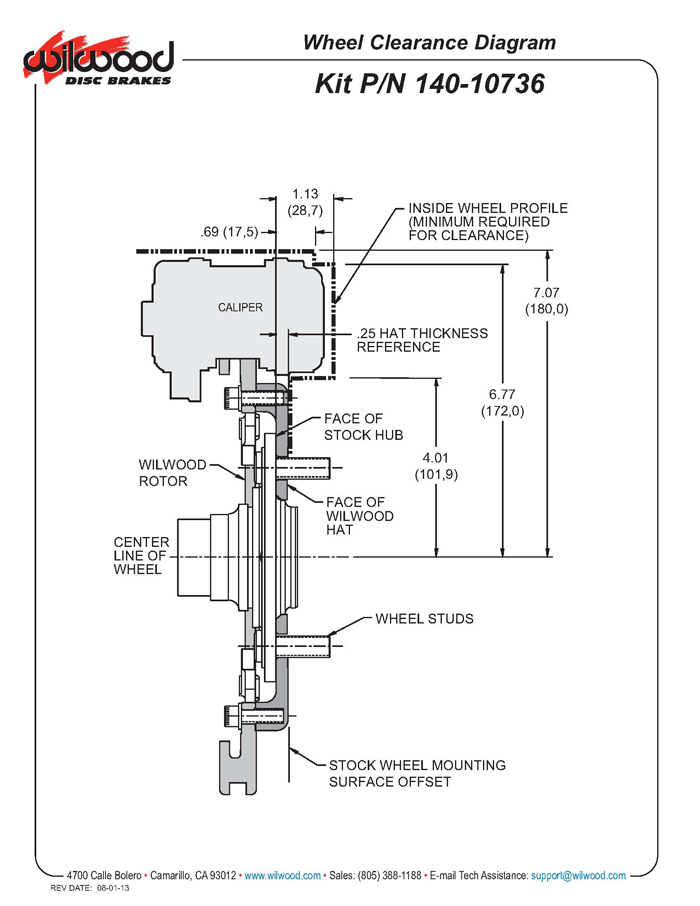

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514010736DR)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-10736-DR Specifications

KEY SPECS
MFG. Part #	140-10736-DR
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Red
Bolt Pattern	4 on 100mm
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545010008
Rotor Thickness	0.81"
Stud Diameter	0.5"
Mount Type	Lug
Total Piston Area	3.08 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.45"
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	4 x 3.93

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1988-2000 Honda Civic

1993-1997 Honda Civic del Sol

1988-1991 Honda CRX
