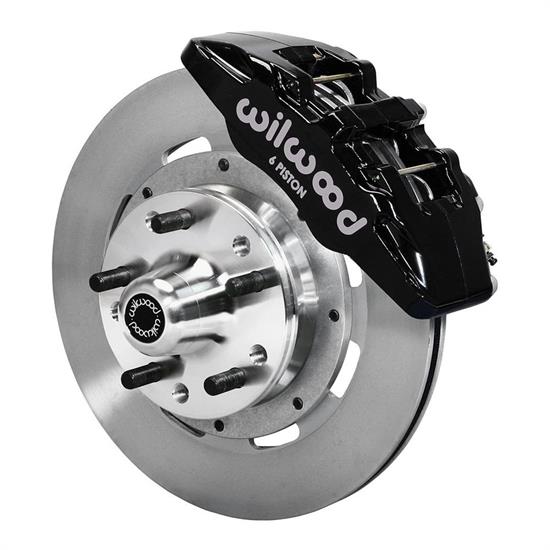

Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM

Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.19 Inch Rotor Diameter, Powder Coated

1 Review | 1 Answered Question
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
X
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Wilwood 140-10510 DP6 12.19 Inch Front Disc Brake Kit, 1964-74 GM
Zoomed In Image
We estimate this item will ship on or before April 28th.
Part # 83514010510
Save 10%
$974.99
$1,091.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-10510
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Drum, Factory Disc & Drop Spindles
Mount Type:
Lug
OE Hub Offset:
0.19"
Total Piston Area:
5.06 sq. in.
Piston Type:
Stainless
Pad Area:
7.30 sq. in.
Pad Volume:
2.4 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Dynapro 6
Rotor Finish:
Natural
Rotor Material Type:
Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545009668
Front Rotor Included:
Yes
Front Rotor Diameter:
12.19 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Black
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Wheel Clearance Diagram

Application

1964 Buick Skylark All
1964 Buick Special All
1964 Buick Sportwagon All
1964 Chevrolet Chevelle All
1964 Chevrolet Chevy II All
1964 Chevrolet El Camino All
1964 Oldsmobile Cutlass All
1964 Oldsmobile F85 All
1964 Oldsmobile Vista Cruiser All
1964 Pontiac GTO All
1964 Pontiac LeMans All
1964 Pontiac Tempest All
1965 Buick Gran Sport All
1965 Buick Skylark All
1965 Buick Special All
1965 Buick Sportwagon All
1965 Chevrolet Chevelle Drum Brake Spindle
1965 Chevrolet Chevy II Drum Brake Spindle
1965 Chevrolet El Camino Drum Brake Spindle
1965 Oldsmobile Cutlass All
1965 Oldsmobile F85 All
1965 Oldsmobile Vista Cruiser All
1965 Pontiac GTO All
1965 Pontiac LeMans All
1965 Pontiac Tempest All
1966 Buick Gran Sport All
1966 Buick Skylark All
1966 Buick Special All
1966 Buick Sportwagon All
1966 Chevrolet Chevelle Drum Brake Spindle
1966 Chevrolet Chevy II Drum Brake Front
1966 Chevrolet El Camino Drum Brake Spindle
1966 Oldsmobile Cutlass All
1966 Oldsmobile F85 All
1966 Oldsmobile Vista Cruiser All
1966 Pontiac GTO All
1966 Pontiac LeMans All
1966 Pontiac Tempest All
1967 Buick Gran Sport Disc Brake Spindle
1967 Buick Gran Sport Drum Brake Front
1967 Buick Skylark Disc Brake Spindle
1967 Buick Skylark Drum Brake Spindle
1967 Buick Special Disc Brake Spindle
1967 Buick Special Drum Brake Spindle
1967 Buick Sportwagon Disc Brake Spindle
1967 Buick Sportwagon Drum Brake Front
1967 Chevrolet Camaro Disc Brake Spindle
1967 Chevrolet Camaro Drum Brake Front
1967 Chevrolet Chevelle Disc Brake Spindle
1967 Chevrolet Chevelle Drum Brake Front
1967 Chevrolet Chevy II Disc Brake Spindle
1967 Chevrolet Chevy II Drum Brake Front
1967 Chevrolet El Camino Disc Brake Spindle
1967 Chevrolet El Camino Drum Brake Spindle
1967 Oldsmobile 442 Disc Brake Spindle
1967 Oldsmobile Cutlass Disc Brake Spindle
1967 Oldsmobile Cutlass Drum Brake Spindle
1967 Oldsmobile F85 Disc Brake Spindle
1967 Oldsmobile F85 Drum Brake Spindle
1967 Oldsmobile Vista Cruiser Disc Brake Spindle
1967 Oldsmobile Vista Cruiser Drum Brake Spindle
1967 Pontiac Firebird Disc Brake Spindle
1967 Pontiac Firebird Drum Brake Spindle
1967 Pontiac GTO Disc Brake Spindle
1967 Pontiac GTO Drum Brake Spindle
1967 Pontiac LeMans Disc Brake Spindle
1967 Pontiac LeMans Drum Brake Spindle
1967 Pontiac Tempest Disc Brake Spindle
1967 Pontiac Tempest Drum Brake Spindle
1968 Buick Skylark Disc Brake Spindle
1968 Buick Skylark Drum Brake Spindle
1968 Buick Special Disc Brake Spindle
1968 Buick Special Drum Brake Spindle
1968 Buick Sportwagon Disc Brake Spindle
1968 Buick Sportwagon Drum Brake Front
1968 Chevrolet Camaro Disc Brake Spindle
1968 Chevrolet Camaro Drum Brake Front
1968 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1968 Chevrolet Chevelle Disc Brake Spindle
1968 Chevrolet Chevelle Drum Brake Front
1968 Chevrolet Chevy II Disc Brake Spindle
1968 Chevrolet Chevy II Drum Brake Front
1968 Chevrolet El Camino Disc Brake Spindle
1968 Chevrolet El Camino Drum Brake Spindle
1968 Oldsmobile 442 Disc Brake Spindle
1968 Oldsmobile Cutlass Disc Brake Spindle
1968 Oldsmobile Cutlass Drum Brake Spindle
1968 Oldsmobile F85 Disc Brake Spindle
1968 Oldsmobile F85 Drum Brake Spindle
1968 Oldsmobile Vista Cruiser Disc Brake Spindle
1968 Oldsmobile Vista Cruiser Drum Brake Spindle
1968 Pontiac Firebird Disc Brake Spindle
1968 Pontiac Firebird Drum Brake Spindle
1968 Pontiac GTO Disc Brake Spindle
1968 Pontiac GTO Drum Brake Spindle
1968 Pontiac LeMans Disc Brake Spindle
1968 Pontiac LeMans Drum Brake Spindle
1968 Pontiac Tempest Disc Brake Spindle
1968 Pontiac Tempest Drum Brake Spindle
1969 Buick Skylark Disc Brake Spindle
1969 Buick Skylark Drum Brake Spindle
1969 Buick Special Disc Brake Spindle
1969 Buick Special Drum Brake Spindle
1969 Buick Sportwagon Disc Brake Spindle
1969 Buick Sportwagon Drum Brake Front
1969 Chevrolet Camaro Disc Brake Spindle
1969 Chevrolet Camaro Drum Brake Front
1969 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1969 Chevrolet Chevelle Disc Brake Spindle
1969 Chevrolet Chevelle Drum Brake Front
1969 Chevrolet El Camino Disc Brake Spindle
1969 Chevrolet El Camino Drum Brake Spindle
1969 Chevrolet Nova Disc Brake Spindle
1969 Chevrolet Nova Drum Brake Front
1969 Oldsmobile 442 Disc Brake Spindle
1969 Oldsmobile Cutlass Disc Brake Spindle
1969 Oldsmobile Cutlass Drum Brake Spindle
1969 Oldsmobile F85 Disc Brake Spindle
1969 Oldsmobile F85 Drum Brake Spindle
1969 Oldsmobile Vista Cruiser Disc Brake Spindle
1969 Oldsmobile Vista Cruiser Drum Brake Spindle
1969 Pontiac Firebird Disc Brake Spindle
1969 Pontiac Firebird Drum Brake Spindle
1969 Pontiac Grand Prix Disc Brake Spindle
1969 Pontiac Grand Prix Drum Brake Spindle
1969 Pontiac GTO Disc Brake Spindle
1969 Pontiac GTO Drum Brake Spindle
1969 Pontiac LeMans Disc Brake Spindle
1969 Pontiac LeMans Drum Brake Spindle
1969 Pontiac Tempest Disc Brake Spindle
1969 Pontiac Tempest Drum Brake Spindle
1970 Buick Skylark Disc Brake Spindle
1970 Buick Skylark Drum Brake Spindle
1970 Buick Sportwagon Disc Brake Spindle
1970 Buick Sportwagon Drum Brake Front
1970 Chevrolet Chevelle Disc Brake Spindle
1970 Chevrolet Chevelle Drum Brake Front
1970 Chevrolet El Camino Disc Brake Spindle
1970 Chevrolet El Camino Drum Brake Spindle
1970 Chevrolet Monte Carlo Disc Brake Spindle
1970 Chevrolet Nova Disc Brake Spindle
1970 Chevrolet Nova Drum Brake Front
1970 Oldsmobile 442 Disc Brake Spindle
1970 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Cutlass Disc Brake Spindle
1970 Oldsmobile Cutlass Drum Brake Spindle
1970 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile F85 Disc Brake Spindle
1970 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1970 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Vista Cruiser Disc Brake Spindle
1970 Oldsmobile Vista Cruiser Drum Brake Spindle
1970 Pontiac Grand Prix Disc Brake Spindle
1970 Pontiac GTO Disc Brake Spindle
1970 Pontiac GTO Drum Brake Spindle
1970 Pontiac LeMans Disc Brake Spindle
1970 Pontiac LeMans Drum Brake Spindle
1970 Pontiac Tempest Disc Brake Spindle
1970 Pontiac Tempest Drum Brake Spindle
1971 Buick Skylark Disc Brake Spindle
1971 Buick Sportwagon Disc Brake Spindle
1971 Chevrolet Chevelle Disc Brake Spindle
1971 Chevrolet Chevelle Drum Brake Front
1971 Chevrolet El Camino Disc Brake Spindle
1971 Chevrolet El Camino Drum Brake Spindle
1971 Chevrolet Monte Carlo Disc Brake Spindle
1971 Chevrolet Nova Disc Brake Spindle
1971 Chevrolet Nova Drum Brake Front
1971 GMC Sprint Disc Brake Spindle
1971 GMC Sprint Drum Brake Spindle
1971 Oldsmobile 442 Disc Brake Spindle
1971 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Cutlass Disc Brake Spindle
1971 Oldsmobile Cutlass Drum Brake Spindle
1971 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile F85 Disc Brake Spindle
1971 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1971 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Vista Cruiser Disc Brake Spindle
1971 Oldsmobile Vista Cruiser Drum Brake Spindle
1971 Pontiac Grand Prix Disc Brake Spindle
1971 Pontiac GTO Disc Brake Spindle
1971 Pontiac GTO Drum Brake Spindle
1971 Pontiac LeMans Disc Brake Spindle
1971 Pontiac LeMans Drum Brake Spindle
1971 Pontiac Ventura II Disc Brake Spindle
1971 Pontiac Ventura II Drum Brake Front
1972 Buick Skylark Disc Brake Spindle
1972 Buick Sportwagon Disc Brake Spindle
1972 Chevrolet Chevelle Disc Brake Spindle
1972 Chevrolet Chevelle Drum Brake Front
1972 Chevrolet El Camino Disc Brake Spindle
1972 Chevrolet El Camino Drum Brake Spindle
1972 Chevrolet Monte Carlo Disc Brake Spindle
1972 Chevrolet Nova Disc Brake Spindle
1972 Chevrolet Nova Drum Brake Front
1972 GMC Sprint Disc Brake Spindle
1972 GMC Sprint Drum Brake Spindle
1972 Oldsmobile Cutlass Disc Brake Spindle
1972 Oldsmobile Cutlass Drum Brake Spindle
1972 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile F85 Disc Brake Spindle
1972 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1972 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile Vista Cruiser Disc Brake Spindle
1972 Oldsmobile Vista Cruiser Drum Brake Spindle
1972 Pontiac Grand Prix Disc Brake Spindle
1972 Pontiac GTO Disc Brake Spindle
1972 Pontiac LeMans Disc Brake Spindle
1972 Pontiac LeMans Drum Brake Spindle
1972 Pontiac Ventura II Disc Brake Spindle
1972 Pontiac Ventura II Drum Brake Front
1973 Buick Apollo Disc Brake Spindle
1973 Buick Apollo Drum Brake Front
1973 Chevrolet Nova Disc Brake Spindle
1973 Chevrolet Nova Drum Brake Front
1973 Oldsmobile Omega Disc Brake Spindle
1973 Oldsmobile Omega Drum Brake Front
1973 Pontiac Ventura II Disc Brake Spindle
1973 Pontiac Ventura II Drum Brake Front
1974 Buick Apollo Disc Brake Spindle
1974 Buick Apollo Drum Brake Front
1974 Chevrolet Nova Disc Brake Spindle
1974 Chevrolet Nova Drum Brake Front
1974 Oldsmobile Omega Disc Brake Spindle
1974 Oldsmobile Omega Drum Brake Front
1974 Pontiac Ventura II Disc Brake Spindle
1974 Pontiac Ventura II Drum Brake Front

Charts

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

More Like This

Reviews

Q & A

Videos & Articles
  • When it comes to a traditional style build on an early hot rod it just has to be rolling on a solid front axle of some sort. In this buyer's guide we take you through I-beam and round tube solid axles, spindle choices, radius rod needs, and more.
  • Follow along as Speedway Tech Kevin W. updates the brakes on his Bel Air with a modern disc brake conversion kit.
  • In this Tech Tip, a customer asked about finding a set of disc brakes for his 1949 Ford F1 pickup, with one caveat. He wants to use the factory wheels.

You May Also Like

Error
X
Note
X
Ok
