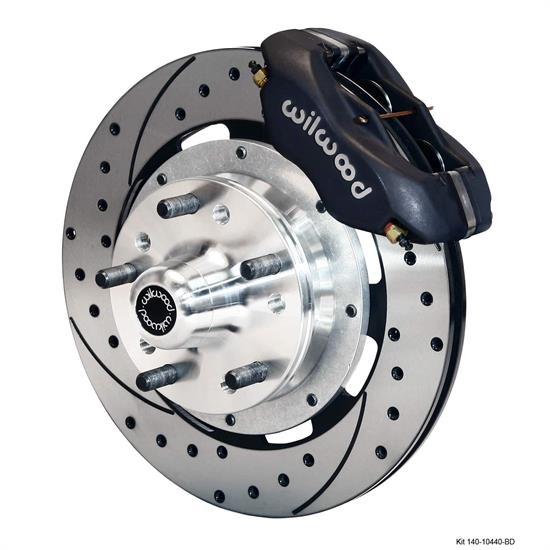

Wilwood 140-10440-BD FDLI 12.19 Front Brake Kit, 74-80 Pinto/Mustang II
- Designed to mount on the 1974-1980 Ford Pinto/Mustang II
- Rotors have a 12.19" diameter and are designed to clear 15"-up wheels
- 4 piston calipers feature a powder coated black finish for added corrosion protection
$1,303.85
/each
In Stock
$1,410.93
Save $107.08
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 12.19 Inch Rotor Diameter, Black
- Designed to mount on the 1974-1980 Ford Pinto/Mustang II
- Rotors have a 12.19" diameter and are designed to clear 15"-up wheels
- 4 piston calipers feature a powder coated black finish for added corrosion protection
- Engineered to mount directly to the drop and factory disc spindles
- A drilled and slotted design provides excellent heat dissipation
Key Specs
| MFG. Part # | 140-10440-BD |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-10440-BD Details
Wilwood 140-10440-BD Details
Application
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
Wilwood 140-10440-BD Specifications
Wilwood 140-10440-BD Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10440-BD |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Drop & Factory Disc Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
| Color | Black |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545009378 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
Ratings & Reviews
4.7
3 Reviews
Customers appreciate the completeness of the kit and confirmed that it includes quality parts as advertised. Many found it to be a beneficial upgrade for standard disc brakes, underscoring its usability. The quality of the parts was also noted, with particular emphasis on the fact that the product meets expectations associated with the Wilwood brand. Several users recommend this product over competitor brands due to its superior features and overall quality.
Ratings & Reviews
4.7
3 Reviews
Customers appreciate the completeness of the kit and confirmed that it includes quality parts as advertised. Many found it to be a beneficial upgrade for standard disc brakes, underscoring its usability. The quality of the parts was also noted, with particular emphasis on the fact that the product meets expectations associated with the Wilwood brand. Several users recommend this product over competitor brands due to its superior features and overall quality.
4.7
3 reviews
5
2
4
1
3
0
2
0
1
0
Filter by Ratings
All there
5.0
8 years ago
U Boat
Upstate NY
Verified
Haven't installed yet but looks to be as advertised.
Would Recommend
I would buy this again
4.0
9 years ago
Old car guy
McAlester Oklahoma
Verified
Good upgrade for standard disc brakes
Would Recommend
Very nice
5.0
9 years ago
Nick
Watkins Glen, NY
Verified
Very nice parts, and a complete kit. Exactly what you would expect from Wilwood.
Would Recommend
Showing 3 of 3 reviews
Questions & Answers
2 Questions • 3 Answers
Questions & Answers
2 Questions • 3 Answers
I have a 65 mustang that has a mustang ii front end on it. I currently have to run 1 inch spacers for my fr500 modern mustang wheels to clear the dust cap on the existing rotors. With this kit would I be able to bolt my wheel up without a spacer?
by Brett
• 7 years ago
1 answer
View Answer
does this increase track width mustang 2 front in a 40 ford. I do not have room for a increase in track width
by flintstone
• 11 years ago
2 answers
View Answers
2 of 2 questions shown
Fitment
Fitment
1974-1978 Ford Mustang II
1974-1980 Ford Pinto
1975-1980 Mercury Bobcat
