| MFG. Part # | 140-1035-BD |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 10.75 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFDL Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Application
Charts
Installation Instructions (PDF)

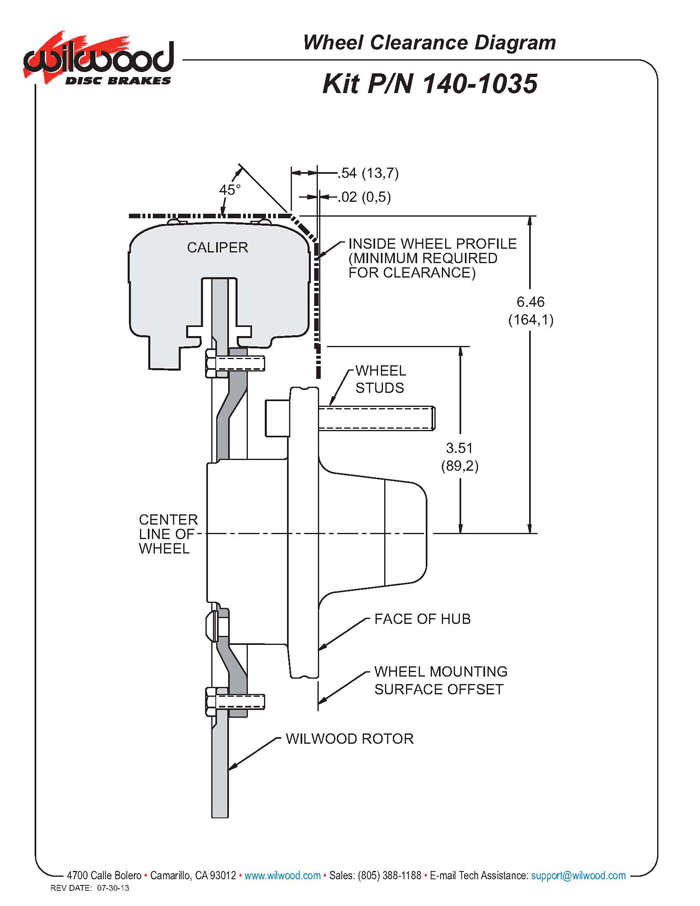

Wheel Clearance Diagram (JPG)
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-1035-BD |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Rotor Diameter | 10.75 Inch |
| Rotor Type | Solid |
| Caliper Pistons | Four |
| Caliper Finish | Anodized |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 10.75 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
| Color | Gray |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Anodized |
| GENERAL | |
| GTIN Code | 889545009354 |
| Rotor Thickness | 0.35" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0.59" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Forged Dynalite |
| Rotor Finish | Black Oxide |
| Rotor Material Type | Steel |
| Vane Count | None |
| Bedded | No |
| Balanced | No |
| Stud Diameter 2 | 1/2-20 |
Be the first to ask a question.
1982-1992 Chevy Camaro
1982-1992 Pontiac Firebird
