$193 Off
$193 Off
|
#83514010220DR
$2,354.40
/each
Factory Shipped
$2,547.76
Save $193.36
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-10220-DR |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 12.88 Inch |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

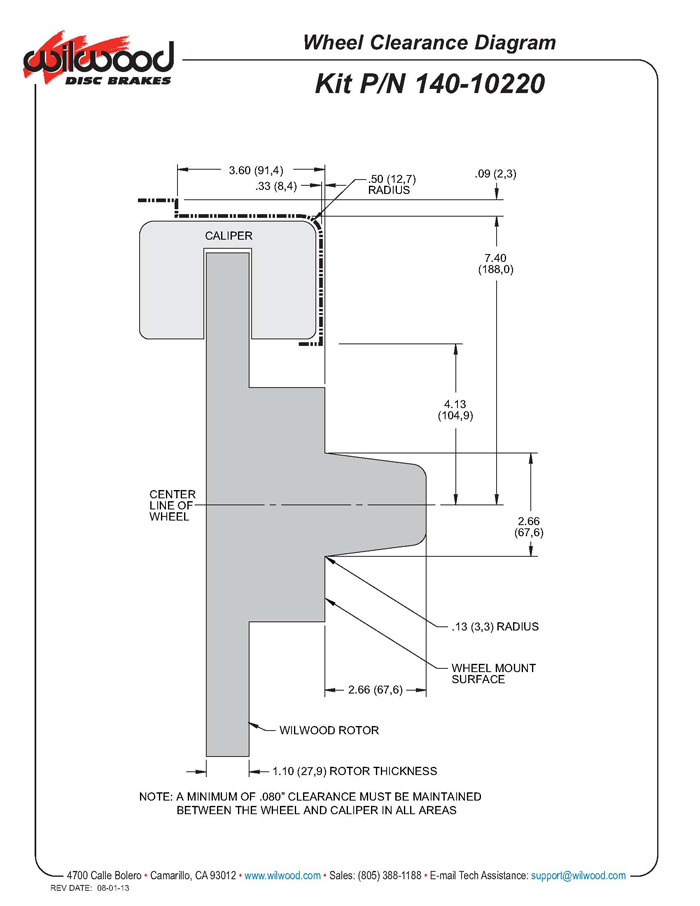

Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-10220-DR |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Rotor Diameter | 12.88 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 17 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.88 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Red |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545009088 |
| Rotor Thickness | 1.1" |
| Stud Diameter | 0.52" |
| Mount Type | Radial |
| OE Hub Offset | 0.25" |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 48 Curved Vane |
| Bedded | No |
| Balanced | No |
| Hat Type | Big Brake Hat - Flared Bell |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 2.00" |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 5 x 4.50 |
| Hat Bolt Circle 2 | 5 x 4.75 |
| Stud Diameter 2 | 0.52" |
Be the first to ask a question.
1970 Ford Fairlane
1970 Ford Falcon
1970-1973 Ford Mustang
1970-1971 Ford Ranchero
1970-1971 Ford Torino
1971 Mercury Comet
1970-1973 Mercury Cougar
1970 Mercury Cyclone
1970-1971 Mercury Montego
