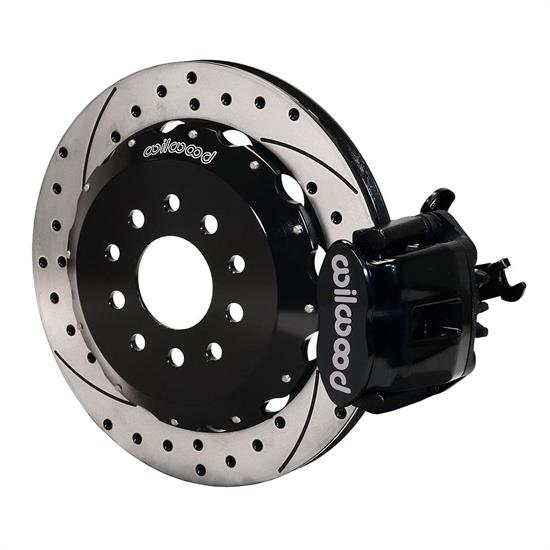

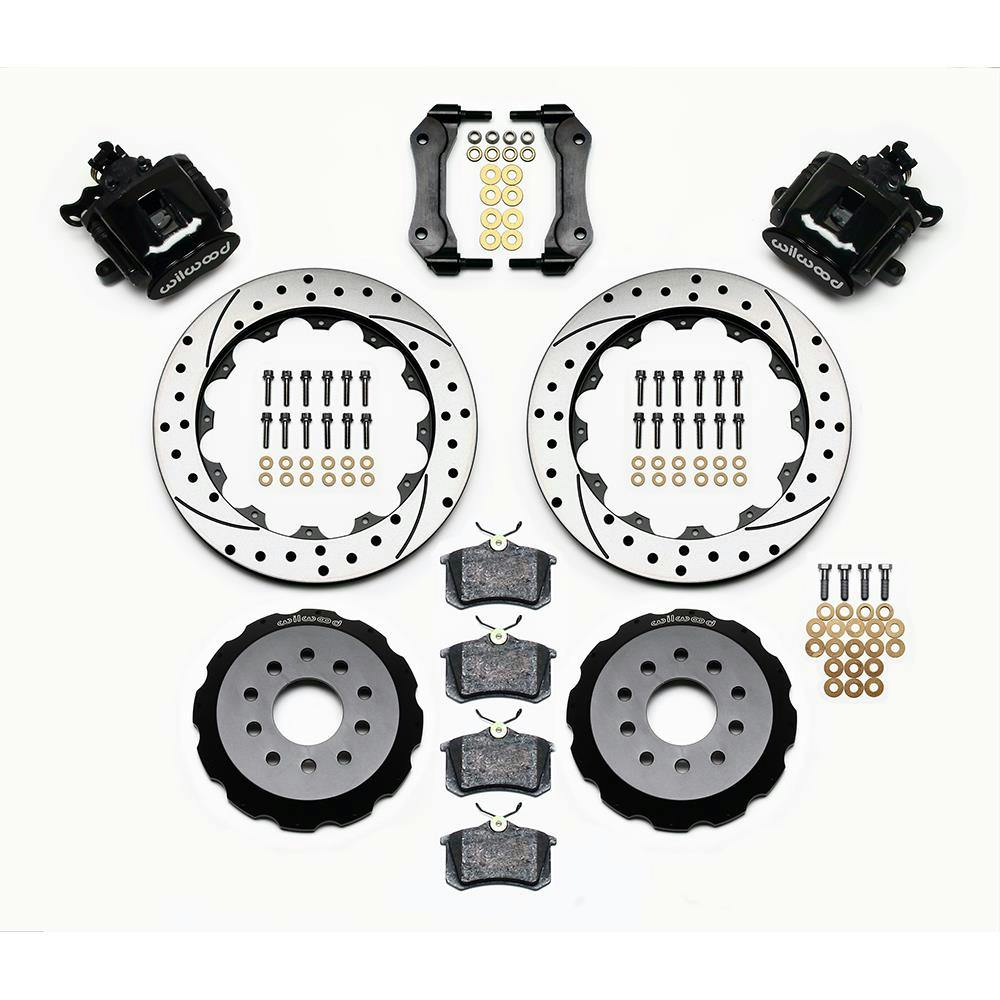

Wilwood 140-10158-D CPB Rear Disc Brake Kit, 1994-04 Mustang

Name: Wilwood 140-10158-D CPB Rear Disc Brake Kit, 1994-04 Mustang
Brand: Wilwood
SKU: 83514010158D
Price: 1726.91 USD
Availability: InStock

Write a Review

Ask a Question

$1,726.91

/each

Factory Shipped

$1,934.14

Save $207.23

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 12.88 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-10158-D
Position	Rear
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	One

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10158-D Details

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Application

1994 Ford Mustang Base Models
1994 Ford Mustang Cobra
1994 Ford Mustang GT Models
1995 Ford Mustang Base Models
1995 Ford Mustang Cobra
1995 Ford Mustang GT Models
1996 Ford Mustang Base Models
1996 Ford Mustang Cobra
1996 Ford Mustang GT Models
1997 Ford Mustang Base Models
1997 Ford Mustang Cobra
1997 Ford Mustang GT Models
1998 Ford Mustang Base Models
1998 Ford Mustang Cobra
1998 Ford Mustang GT Models
1999 Ford Mustang Base Models
1999 Ford Mustang Cobra
Except Independent Rear Suspension (IRS)
1999 Ford Mustang GT Models
2000 Ford Mustang Base Models
2000 Ford Mustang Cobra
Except Independent Rear Suspension (IRS)
2000 Ford Mustang GT Models
2001 Ford Mustang Base Models
2001 Ford Mustang Cobra & Bullitt Except Independent Rear Suspension (IRS)
2001 Ford Mustang GT Models
2002 Ford Mustang Base Models
2002 Ford Mustang GT Models
2003 Ford Mustang Base Models
2003 Ford Mustang GT Models
2003 Ford Mustang Mach 1
2004 Ford Mustang Base Models
2004 Ford Mustang GT Models
2004 Ford Mustang Mach 1

Charts

Installation Instructions (PDF)

Guides & Documents

Disc Brake Kits Installation Instructions (83514010158D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-10158-D Specifications

KEY SPECS
MFG. Part #	140-10158-D
Brand	Wilwood
Position	Rear
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	One
Caliper Finish	Powder Coated
Color	Black
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	17 Inch
Hardware Included	Yes
Rotor Style	Drilled
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	Yes
Bolt Pattern	5 on 4.5" \| 4.75"

GENERAL
GTIN Code	889545008524
Rotor Thickness	1"
Offset	3.25"
Axle Flange Offset	3.25"
Mount Type	Radial
Total Piston Area	2.06 sq. in.
Piston Type	Steel
Pad Area	4.00 sq. in.
Pad Volume	1.50 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Material Type	Spec-37 Iron
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Bolt Circle 2	5 x 4.75
Hat Bolt Circle 1	5 x 4.50
Hat Material Type	Aluminum
Hat Offset Dimension	0.88"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Aluminium / Steel

Ratings & Reviews

Be the first to write a review.

Fitment

1994-2004 Ford Mustang
