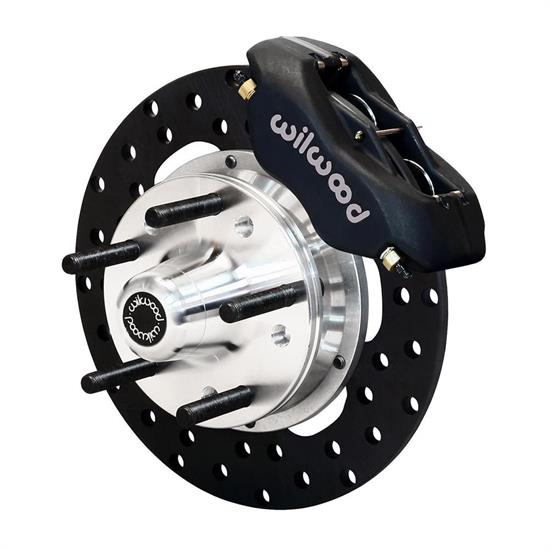

Wilwood 140-1013-BD FDL Front Brake Drag Kit, 1971-80 Pinto/Mustang II
- Specifically designed for the 1971-80 Pinto/Mustang II platform
- Rotors have a 10.75" diameter and will fit 15"-up wheels
- Engineered to fit the factory disc and drum spindles
$976.25
/each
Factory Shipped
$1,056.43
Save $80.18
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 10.75 Inch Rotor Diameter, Anodized
- Specifically designed for the 1971-80 Pinto/Mustang II platform
- Rotors have a 10.75" diameter and will fit 15"-up wheels
- Engineered to fit the factory disc and drum spindles
- Calipers have a total of 4 pistons and are Type III anodized for added protection
Key Specs
| MFG. Part # | 140-1013-BD |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 10.75 Inch |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-1013-BD Details
Wilwood 140-1013-BD Details
FDL Front Drag kits are drag racing's most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Application
1971 Ford Pinto Disc Brake Spindle
1971 Ford Pinto Drum Brake Front Spindle
1972 Ford Pinto Disc Brake Spindle
1972 Ford Pinto Drum Brake Front Spindle
1973 Ford Pinto Disc Brake Front Spindle
1973 Ford Pinto Drum Brake Front Spindle
1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All
1971 Ford Pinto Drum Brake Front Spindle
1972 Ford Pinto Disc Brake Spindle
1972 Ford Pinto Drum Brake Front Spindle
1973 Ford Pinto Disc Brake Front Spindle
1973 Ford Pinto Drum Brake Front Spindle
1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-1013-BD Specifications
Wilwood 140-1013-BD Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-1013-BD |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 10.75 Inch |
| Rotor Type | Solid |
| Caliper Pistons | Four |
| Caliper Finish | Anodized |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled |
| Spindle Type | Factory Disc & Drum Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 10.75 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Gray |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Anodized |
| GENERAL | |
| GTIN Code | 889545008500 |
| Notes | For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums |
| Rotor Thickness | 0.35" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0.41" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black Oxide |
| Rotor Material Type | Steel |
| Vane Count | None |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Gray |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
