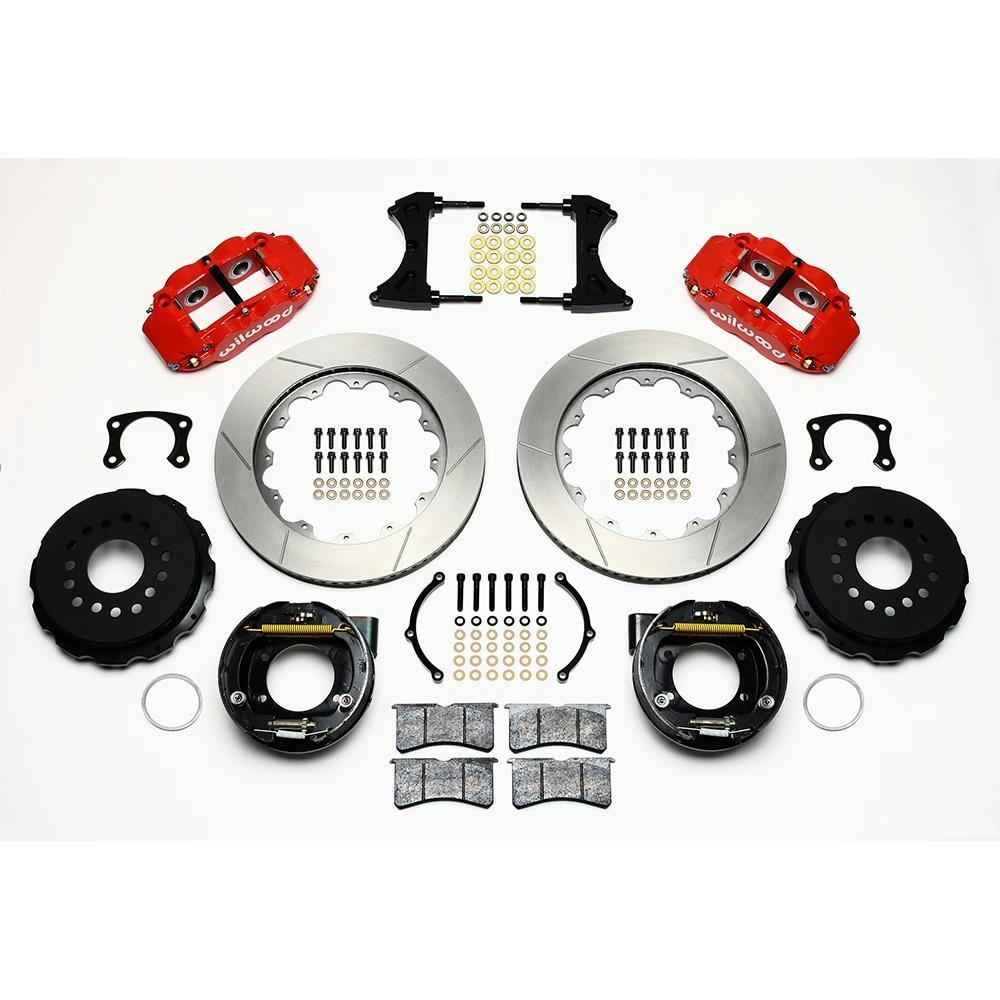

Wilwood 140-10012-R Superlite 4R Big Rear E-Brake Kit

$280 Off

Wilwood 140-10012-R Superlite 4R Big Rear E-Brake Kit
Wilwood

|

#83514010012R

Wilwood 140-10012-R Superlite 4R Big Rear E-Brake Kit

  • Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake
  • FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines
See More

Rotor / Caliper Type:

Undrilled / Red

DrilledDrilled / PolishedDrilled / RedUndrilled / Polished

$2,330.34

/each

Factory Shipped

$2,609.98

Save $279.64


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 14 Inch Rotor Diameter, Red

  • Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake
  • FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines
  • The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application
See more details

Key Specs

MFG. Part #140-10012-R
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-10012-R Details

  • Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake
  • FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines
  • The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-10012-R Specifications

KEY SPECS
MFG. Part #140-10012-R
BrandWilwood
PositionRear
Rotor Diameter14 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorRed
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter18 Inch
Hardware IncludedYes
Rotor StyleSlotted
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
Bolt Pattern5 on 4.5" | 4.75"
GENERAL
Sold in QuantityKit
GTIN Code889545008357
NotesNew Style Big Ford housing end (3.562 in. x 2.00 in.). Measures 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center. 3.150 in. center bore.
Rotor Thickness1.1"
Stud Diameter0.52"
Axle Flange Offset2.50"
Mount TypeRadial
Total Piston Area1.96 sq. in.
Piston TypeStainless
Pad Area8.20 sq. in.
Pad Volume3.8 cu. in.
Brake Pad CompoundBP-10
Caliper TypeRadial
Rotor FinishNatural
Rotor Material TypeSpec-37 Iron
Vane Count72 Curved Vane
BeddedNo
BalancedYes
Hat TypeParking Brake Hat- Standard
Hat FinishBlack E-Coat
Hat Bolt Circle 35 x 5.00
Hat Bolt Circle 25 x 4.75
Hat Bolt Circle 15 x 4.50
Hat Material TypeIron
Hat Offset Dimension1.54"
Brake Lines IncludedNo
Caliper ColorRed
Caliper Material TypeForged Aluminum
Parking Brake StyleInternal Drum
Rear Caliper ColorRed
Rear Caliper MaterialForged Billet Aluminum
Rear Caliper Piston QuantityFour
Rear Rotor ConstructionVented
Rear Rotor Diameter14"
Rear Rotor StyleSlotted surface
Rear Rotor Thickness1.1"
Stud Diameter 20.52"
Stud Diameter 30.52"
