Product Summary

Universal Fit, Four Caliper Pistons, 1.75" Bore Size

    Key Specs

    MFG. Part #120-9993
    Caliper PistonsFour

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

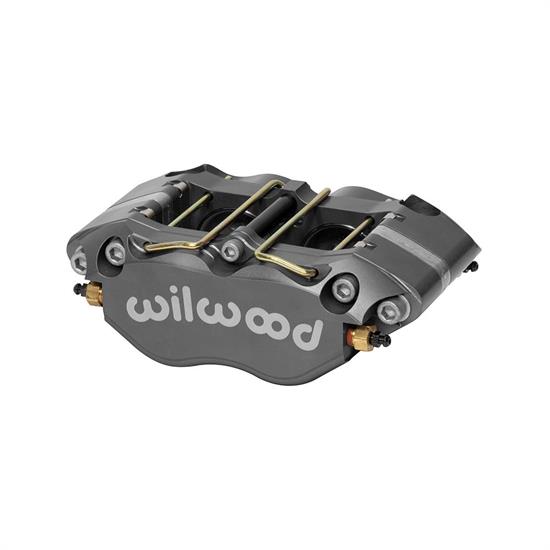

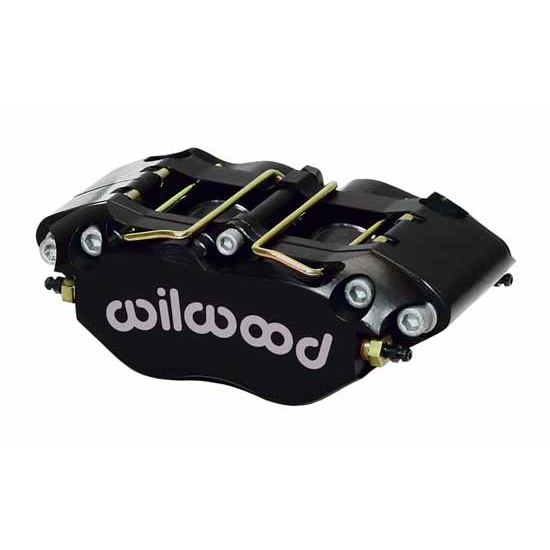

    Wilwood 120-9993 Details

    Narrow DynaPro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. The Narrow DynaPro combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications. The strength of the DynaPro is a combination of process and design. The process of stess-flow forging re-aligns the internal grain structure of the metal to flow within the contour of the caliper body. This produces a part with superior strength over machined block billet parts or castings. The FEA generated body design features a radial transition between the piston bores and caliper bridges. This eliminates macined steps and shoulders in this critical strength area and substantially increases the resistance against deflection and body separation under high load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. The bottom line is a firm pedal with outstanding stopping power. The Narrow DynaPro is available in four configurations. Standard calipers for rotors up to 12.19 feature dust-booted aluminum pistons for maximum protection against track or road born debris in low to intermediate temperature applications. A long radius version is available to accommodate rotors up to 13.00 . Competition models use heavy wall stainless pistons to provide addition protection against corrosion and heat transfer from the pads. All DyanPro calipers can also be optioned with Thermlock pistons for maximum thermal protection in sustained high-heat applications. Optional side inlet calipers are available to simplify plumbing with inboard mounted brakes on live axles and independent suspension rears. Narrow DynaPro calipers use type 7812 pads that are supported from the top by Quick-Clip pad retainers. Quick-Clips allow fast access to the pads for service without the need to dismount the caliper. The Quick-Clip design also allows additional inside radial clearance between the caliper body and the lug hub by eliminating the bottom pad support feet found on other caliper models. Side inlet DynaPros use additionally fortified bridge bolts in place of the Quick-Clips for the ultimate in secure pad retention within high load environments on sprint cars and other extreme duty applications. The DynaPro incorporates other exclusive Wilwood performance enhancements. Stainless SRS bridge plates eliminate caliper bridge wear from pad gouging while dampening noise and vibration during engagement. Internal fluid passages eliminate the need for external crossover tubes and four corner bleed screws allow effective gas evacuation regardless of mounting location.

    Wilwood 120-9993 Specifications

    MFG. Part #120-9993
    Caliper PistonsFour
    Caliper Mounting TypeRadial
    Rotor Diameter12.19 Inch
    Mounting SideUniversal
    Bore Size1.75"
    Centerline of Holes4.75"
    Thread Pitch1/8-27 NPT
    Rotor Thickness0.38"
    FinishType III Anodized
    Material TypeAluminum
    Bore 2 Size1.75"
    Total Piston Area4.80 sq. in.
    Mount Hole Size0.39"
    Mounted Height1.61"
    Pad Area6.36 sq. in.
    Pad Volume2.10 cu. in.
    GTIN Code889545007725
