Add to Cart
$174.99

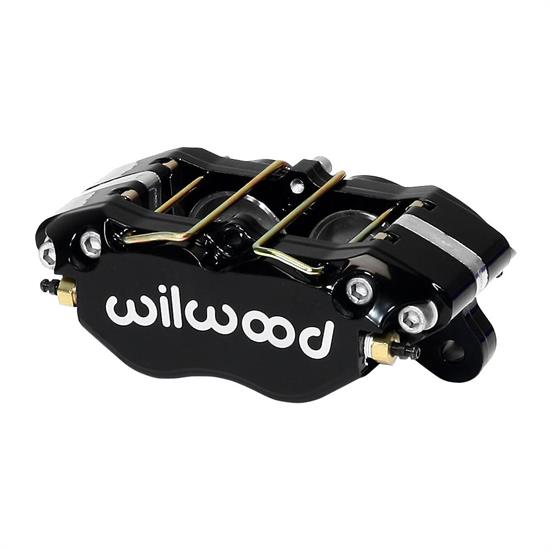

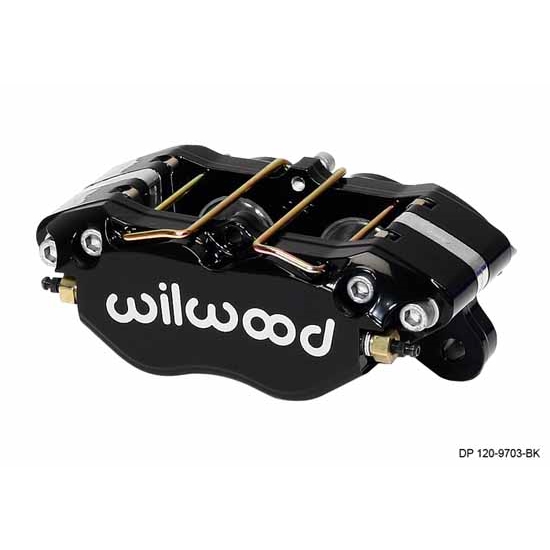

Wilwood 120-9701 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.38/1.25
Wilwood 120-9701 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.38/1.25

Wilwood 120-9701 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.38/1.25

Universal Fit, Four Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Powder Coated, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-9701 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.38/1.25
Wilwood 120-9701 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.38/1.25
Zoomed In Image
We estimate this item will ship on or before June 26th.
Part # 8351209701
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Four
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Powder Coated
Bore Size:
1.38"
Color:
Black
Centerline of Holes:
5.25"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
13.06 Inch
Caliper Mounting Type:
Lug
Mounting Side:
Universal
Bore 2 Size:
1.38"
Total Piston Area:
3.00 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
2.10"
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
GTIN Code:
889545007237

Info

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. The strength of the DynaPro is a combination of process and design. The DynaPro is stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power. The DynaPro is loaded with other enhancements for performance and wider application. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications. Heavy wall stainless steel pistons are used to resist corrosion and slow the heat transfer from the pads. The heavy wall sectional thickness also provides additional strength against backside deflection to provide a firm pedal feel and efficient clamping, even at the high pressures generated by power boost systems. For additional strength, all DP calipers can be fitted with a center bridge bolt kit to provide even greater resistance against body separation under high load. Center bridge bolts are included with all side inlet "SI" models and available as an upgrade option on all other models.
Some parts are not legal for use in California or other states with similar laws/regulations
